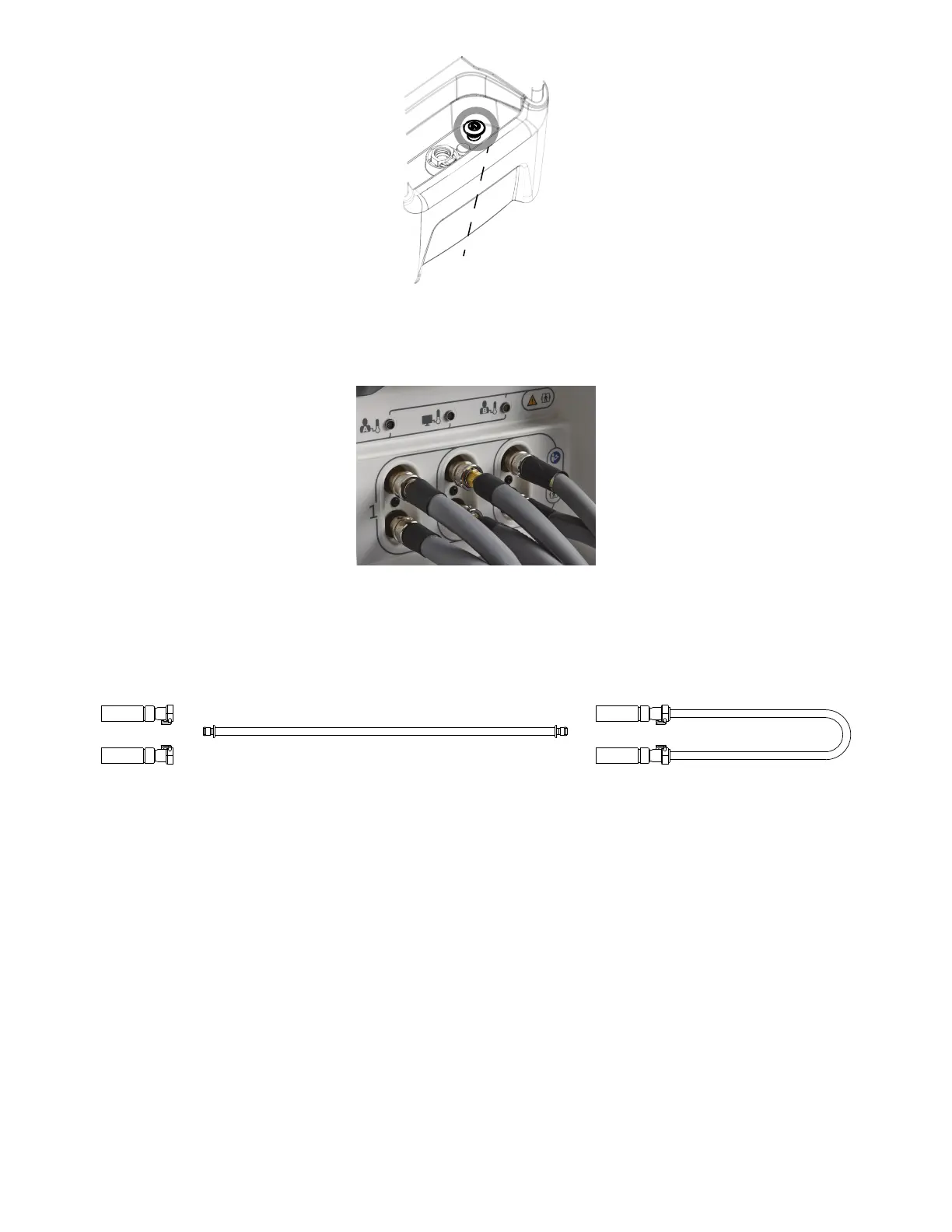

FFiigguurree 2255 –– DDrraaiinn pplluugg
4. Connect a hose to each port (Figure 26).
FFiigguurree 2266 –– HHoosseess ccoonnnneecctteedd
5. Close the connector ends of all three hoses:
a. If you have CCoollddeerr style connector hoses, attach the service tool adapter hose (8001-999-017) (Figure 27).
Complete this for all three hoses.
FFiigguurree 2277 –– CCoollddeerr ssttyyllee ccoonnnneeccttoorr hhoossee ccoonnnneecctteedd ttoo aa ttooooll aaddaapptteerr hhoossee
b. If you have CClliikk--TTiittee hoses, make sure that the connector ends are connected and closed (A), and clamps are open
(B). Complete this for all three hoses. Figure 28
EN 40 8001-109-001 Rev C.0
