The Crossre2 Console
The Crossre2 console is the connection hub for the components of the
Crossre2 system. It generates RF energy for ablation and vessel sealing,
powers motorized shavers, and provides user controls and system feedback.
Front Panel

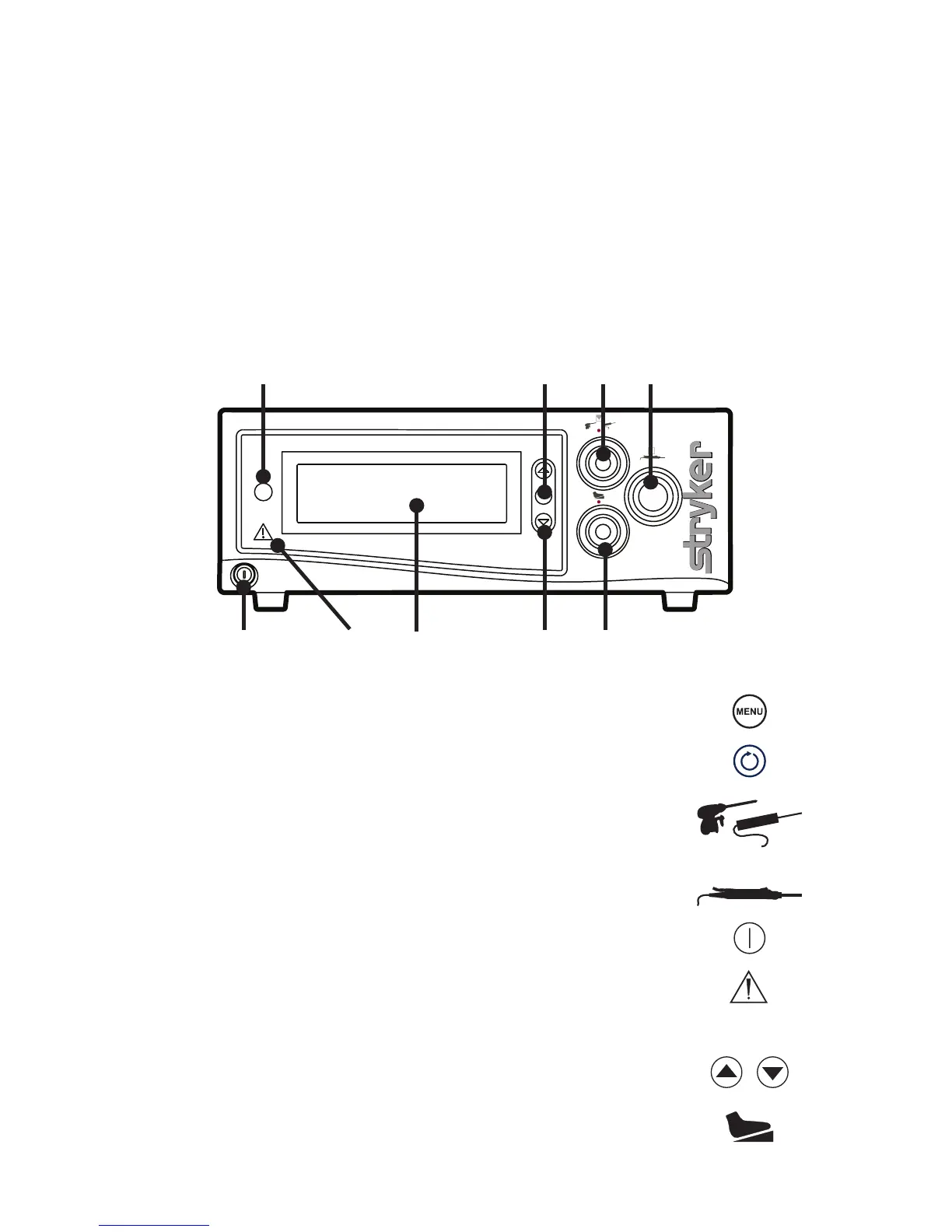

The front console panel features ports for connecting handpieces, controls for
adjusting handpiece settings, and an LCD screen to provide system feedback.
1 2
5 6 7 8 9
3 4
1. Menu Selects menu items
2. Select Selects which device displays on
the LCD screen.
3. RF connector
(SERFAS Energy and
Crosseal Handpieces)
Delivers RF energy for ablation or
vessel sealing handpieces
4. Handpiece connector Powered shaver handpiece
5. Power Powers the console on and o
6. Error indicator Shines red to indicate errors
(error details appear in the LCD)
7. LCD screen Provides system feedback
8. Adjust Adjusts options for connected
devices
9. Footswitch connector Crossre Footswitch
To Next Page
