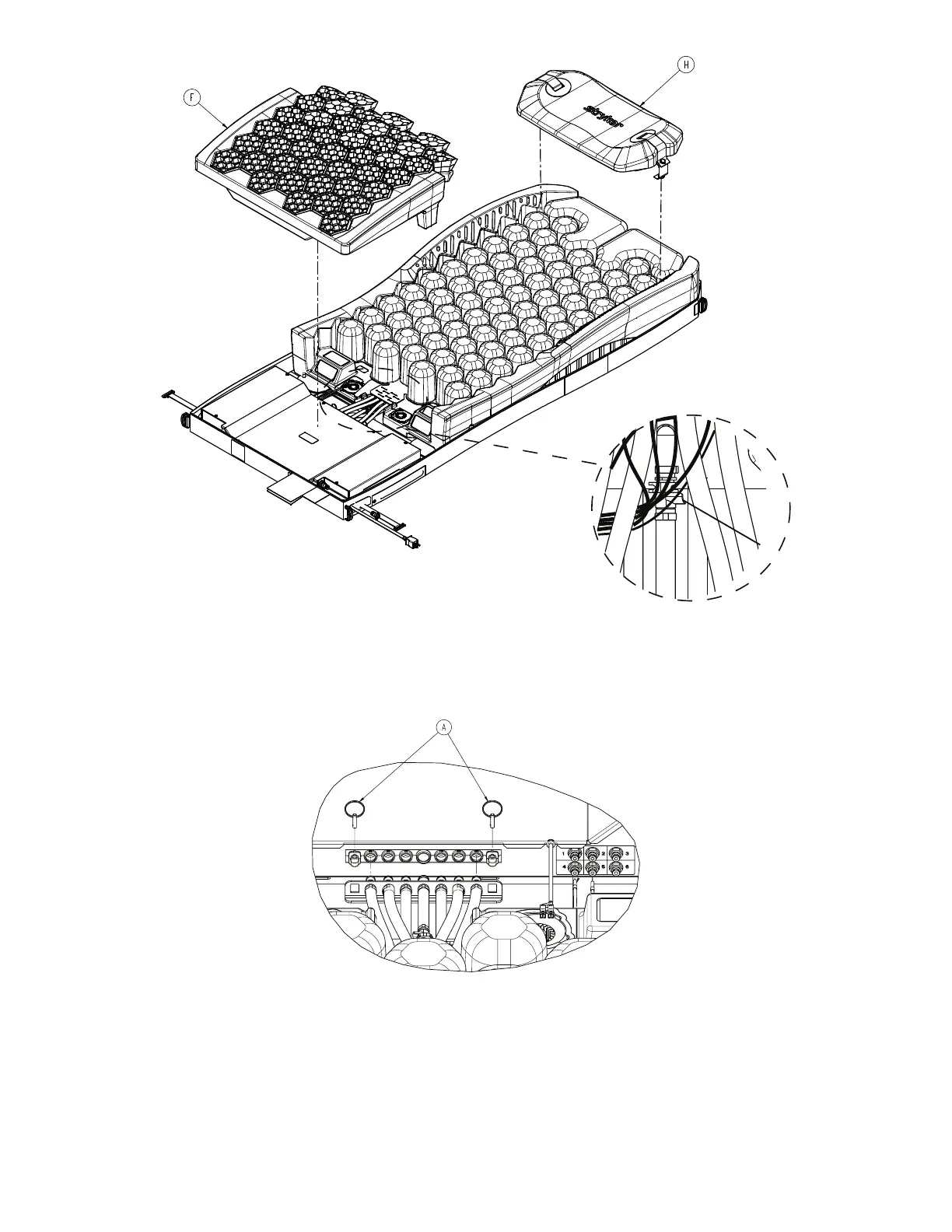

FFiigguurree 55 –– GGeell ccrriibb,, ppiillllooww,, aanndd qquuiicckk ddiissccoonnnneecctt ffiittttiinngg
5. Disconnect the quick disconnect fitting (Z) (Figure 5).
6. Remove the two retaining pins (A) from the hose quick connection from the foot box assembly (Figure 6). Save the pins.
FFiigguurree 66 –– RReettaaiinniinngg ppiinnss
7. Grasp both sides of the hose quick connection from the pod assembly and carefully pull out toward the head end of the
support surface to disconnect from the foot box manifold.
8. Disconnect the four pod sensor hoses (Y) (1 blue, 2 yellow, 4 green, and 5 orange) from the foot box. Push into the
coupling and pull out on each of the hoses (Figure 7).
2971-009-002 Rev D.0 29 EN
