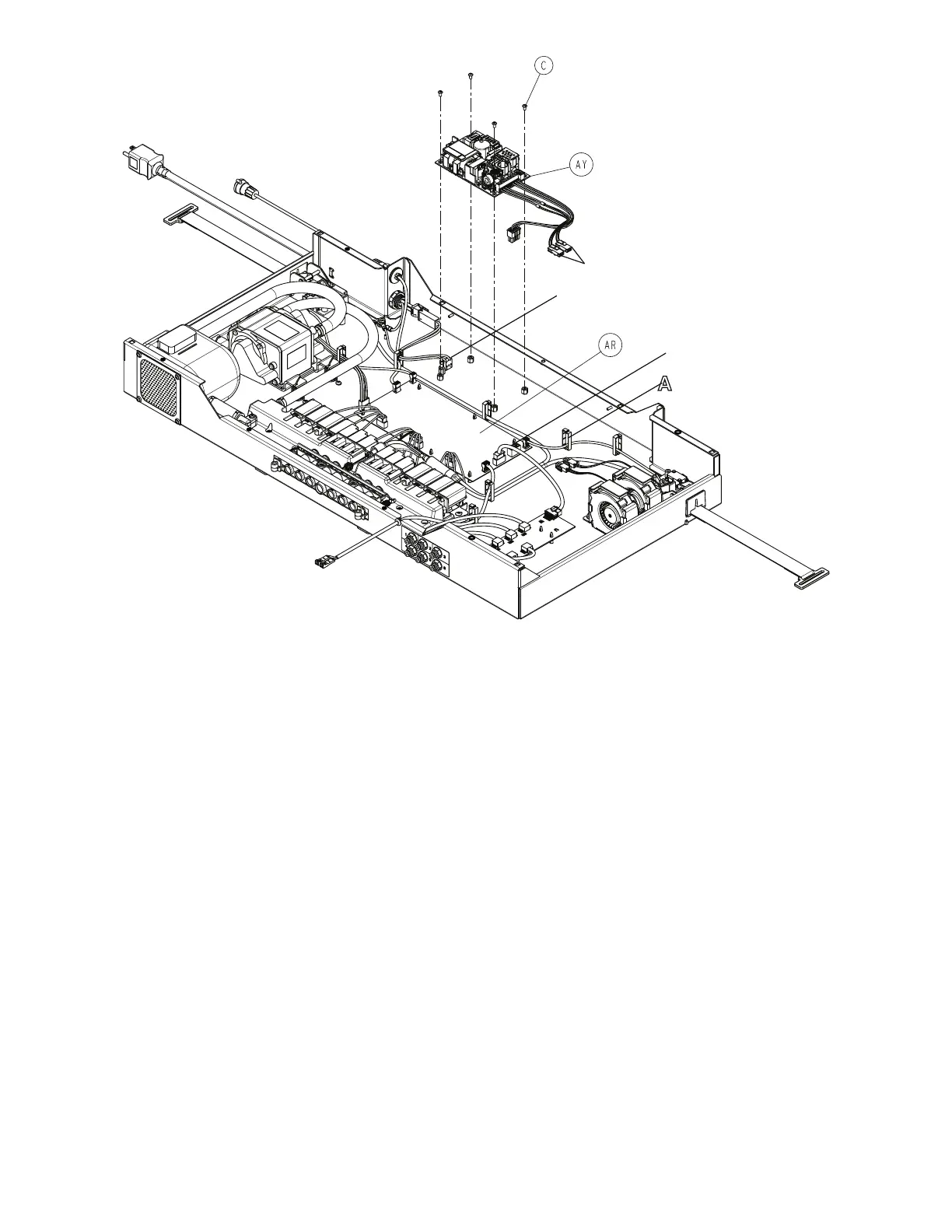

FFiigguurree 1133 –– PPoowweerr ssuuppppllyy
5. Disconnect the AC power connector (B) from the power supply (Figure 13).
6. Disconnect the two foot box fans (D).
7. Disconnect the ground wire connector from the power supply.
8. Using a T10 Torx driver, remove the four screws (C) that secure the power supply (AY) to the foot box (Figure 13). Save
the screws.
NNoottee -- During reinstall, torque (C) to 8 ± 2 in-lb.
9. Remove and discard the power supply (AY) (Figure 13).
10.Reverse steps to reinstall.
NNoottee
• During reinstall, make sure to align the Velcro® patches.
• After installation, remove the zipper pull tool or equivalent from the zipper.
• Make sure that the watershed covers the zipper.
• Do not dispose of as unsorted municipal waste. See your local distributor for return or collection systems available in
your country.
11.Verify proper operation before returning the product to service.
