33..33..22.. TToo TTeesstt SSuuccttiioonn
NNoottee -- A SET UP SYSTEM screen will appear () after confirmation of the safety information. A valid manifold must be
inserted into the manifold receptacle to enable suction control.
1. Obtain a new manifold and remove the manifold from its packaging.
2. Insert the new (valid) manifold into the manifold receptacle. Confirm on screen that the manifold is new and unused.
NNoottee -- If the manifold is valid and inserted correctly, a SYSTEM READY indication will occur, a manifold indicator will
illuminate white (NEW) or pink (USED), and suction control will be enabled (START SUCTION button enabled). See
Glossary
(page 74) for the definitions of a new, valid, used, expired, and invalid manifold.
3. Make sure all the inlet ports of the manifold are closed.
4. Touch the START SUCTION button (Figure 17).

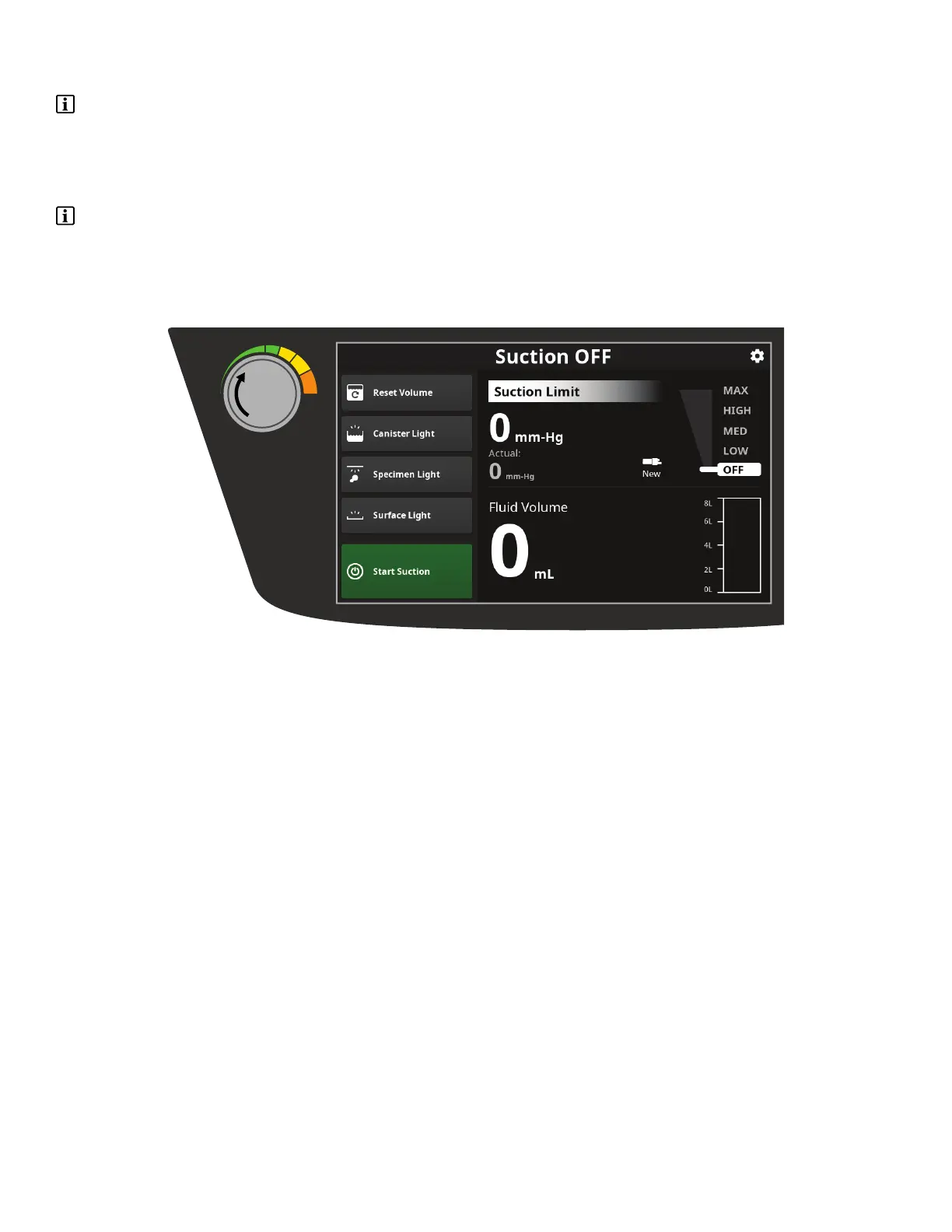

FFiigguurree 1177 –– TToo SSttaarrtt aanndd AAddjjuusstt SSuuccttiioonn
5. Adjust the manual suction control dial to the maximum suction level.
6. Verify the actual suction value changes as indicated on the main control panel display and reaches a suction level of at
least 494 mm-Hg. If not, see
Troubleshooting
(page 58).
7. Discard the manifold used for testing purposes.
