5. iSuite Operating Room
e Stryker iSuite may consist of, but is not limited to, the following Stryker Communications equip-
ment: SwitchPoint Innity, SwitchPoint Element, Documentation Station, Stryker Booms and Lights,
Speakers, PTZ Camera, and Wall Mounted Plasma/LCD. e operating room may also integrate with
an ORIS Video Network Hub and may contain a Fixed OR Status Camera. is section describes site
preparation requirements necessary for the installation phase of all Stryker ORIS equipment in the
operating room.
Note All electrical circuits called out in this manual are single Branch Circuits. For
example: 20 Amp/115 VAC within the US and 16/13 Amp 230 VAC in Europe or
equivalent per local electrical codes.
5.1 Documentation Station (Stryker Provided)
e Stryker-provided documentation station houses all the essential components of the iSuite. Prior
to receiving the documentation station the customer/Contractor must complete the Documentation
Station Order Conrmation Form (Provided by the Stryker Project Manager) and return to the PM at
least eight (8) weeks prior to the desired delivery date.
5.1.1 Receiving and Assembling the Documentation Station
Note Hospital/Contractor is responsible for receiving and assembling the documenta-
tion station prior to Stryker installation. e assembly may require up to four
people to complete the lis.

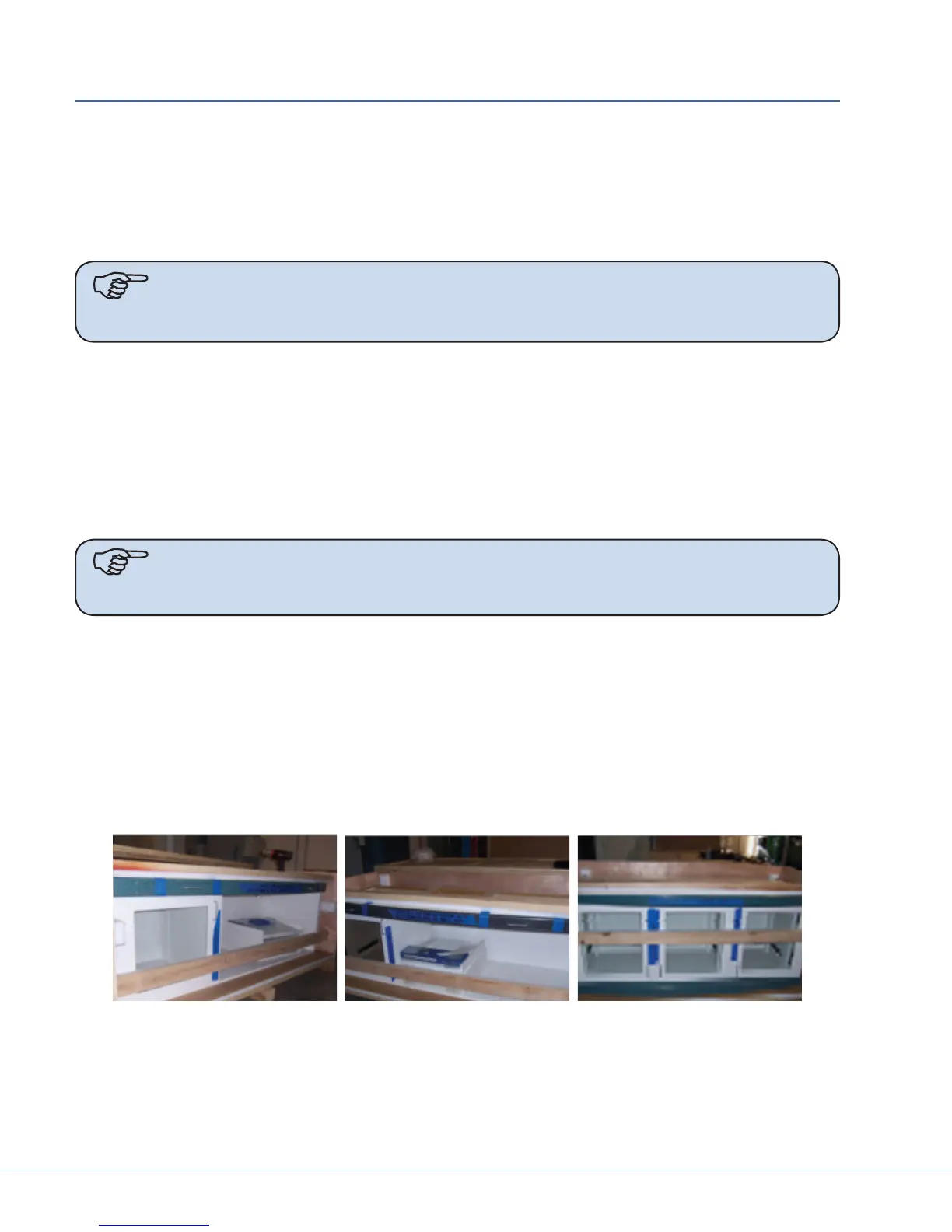

e documentation station will be delivered in three large wooden crates (top, middle, and base). is
is a large delivery and may require extra labor.
Dimensions of the Shipping Crates:
• 3-Bay: 40 x 80 x 36 40 x 80 x 42 40 x 80 x 48
• 2-Bay: 40 x 54 x 36 40 x 54 x 42 40 x 54 x 48
• 1-Bay: 40 x 60 x 48
Shipping crates:
