Stryker Operating Room Information System User Manual

15
S

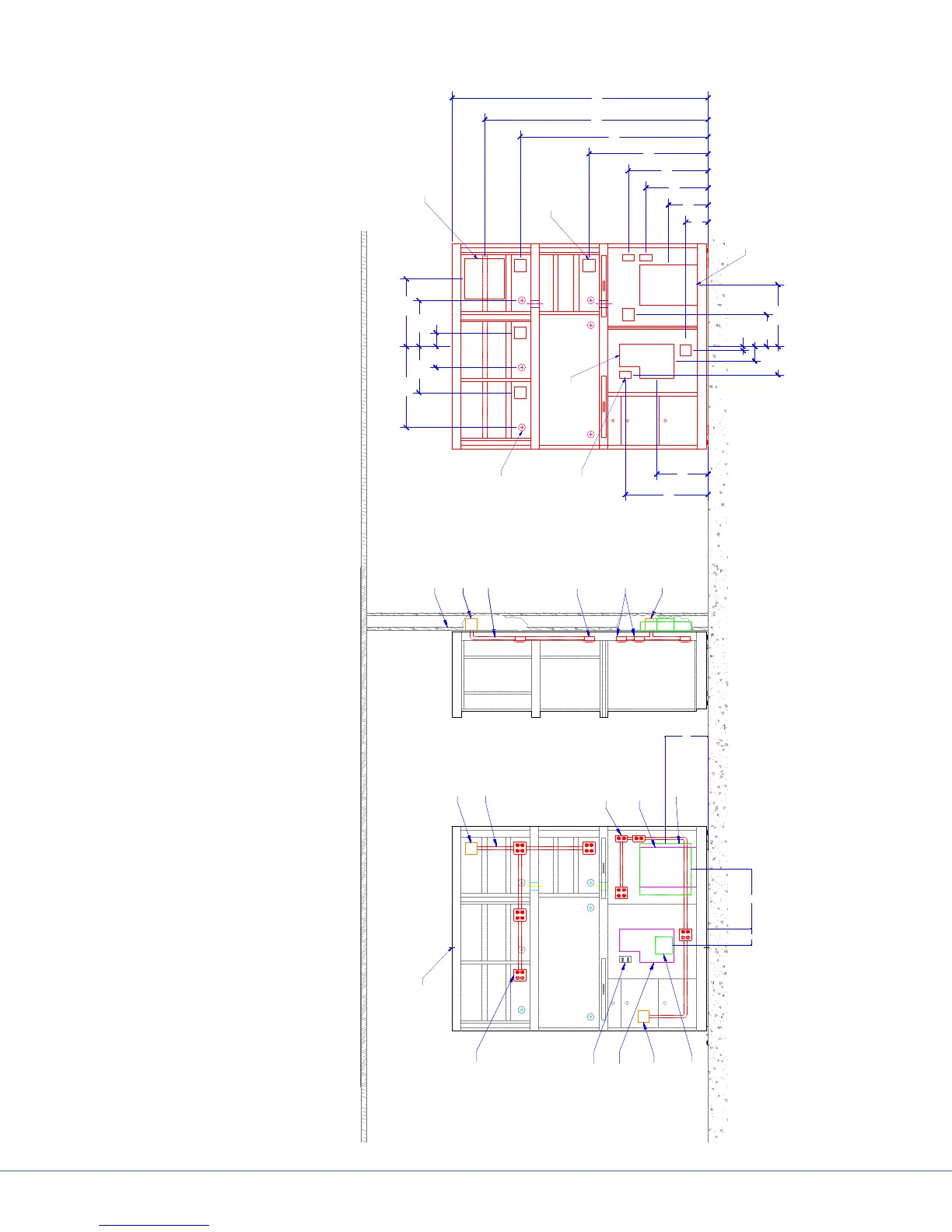

Figure 5.5 - ree-Bay Documentation Station
4"(80mm) x 4"(80mm)
ELECTRICAL
J-BOX
4"(80mm) x 4"(80mm)
ELECTRICAL
J-BOX
FLEX
CONDUIT
WALL
ELECTRICAL DUPLEX
(6X) ELECTRICAL
QUAD
(2X) ELECTRICAL
DUPLEX
CUT-OUT
CUT-OUT
DATA / AV
CONNECTION
FLEX
CONDUIT
4"(80mm) x 4"(80mm)
ELECTRICAL
J-BOX
4"(80mm) x 4"(80mm)
ELECTRICAL
J-BOX
18" x 18"
SWITCHPOINT
INFINITY J-BOX
6"(150mm) X 6"(150mm)
J-BOX (FOR STRYKER
LIGHTS ONLY)
(6X) ELECTRICAL
QUAD
15"
20"
6"
1. THIS DRAWING IS FOR REFERENCE OF CUT-OUT LOCATIONS ONLY. IT IS NOT INTENDED FOR
MANUFACTURING USE.
2. DRAWING DISPLAYS FRONT VIEW OF DOCUMENTATION STATION WITH DOORS OMITTED.
3. PROVIDE AND INSTALL SIX (6) ELECTRICAL QUAD OUTLETS AND SIX (6) DUAL GANG FACE PLATES AS
WELL AS TWO (2) ELECTRICAL DUPLEX OUTLETS WITH TWO (2) SINGLE GANG FACE PLATES INTO THE
ELECTRICAL JUNCTION BOXES PROVIDED.
4. INSTALL AND CONNECT FLUORESCENT LIGHTING FIXTURE IF PROVIDED.
5. PROVIDE AND CONNECT 20 AMP CIRCUITS FOR THE STRYKER DOCUMENTATION STATION FOR EACH
QUAD PLEX OUTLET: ONE (1) 20 AMP CIRCUIT FOR EACH OF THE TWO (2) DUPLEX OUTLETS IN THE
DOCUMENTATION STATION WITH ONE (1) CIRCUIT ALSO POWERING THE FLUORESCENT LIGHTING. IF
INSTALLING STRYKER VISUM LIGHTS, ONE (1) 20 AMP CIRCUIT IS REQUIRED FOR EACH LIGHT POWER
SUPPLY BOX (REFER TO VISUM PRE-INSTALLATION GUIDE FOR LOCATION OF POWER SUPPLY BOX).
POWER SHOULD BE CONNECTED USING CONDUIT FROM THE WALL TO FACILITATE FUTURE ACCESS TO
THE CABLE CHASE IN THE BACK OF THE DOCUMENTATION STATION. ALL STRYKER DOCUMENTATION
STATION CIRCUITS SHOULD BE ON CRITICAL POWER.
SCALE: 1" = 1'
6X 4.25 X 4.25 CUTOUT
(ELECTRICAL QUAD)
6X 2.5 DIA.
(GROMMET)
14.0 X 20.0 CUTOUT
2.25 X 4.13 CUTOUT
(DATA / AV)
CUTOUT
10.0"
11.2"
21.7"
23.8"
16.2"
4.8"7.4"
5.1"
3X 66.0"
78.5"
29.1"
41.8"
18.0"
7.8"
14.0"
21.9"
28.0"
DOC STATION CENTER POINT
14.0 X 14.0 CUTOUT
(BEHIND SHELVES) IF
HARD-PIPED
90.0"
www.stryker.com
A
FLOWER MOUND, TEXAS 75028
1410 LAKESIDE PARKWAY, SUITE 100
PHONE: (877) 789-8106
FAX: (972) 410-7001
SHEET:
B
C
16.3"
28.5"
1.4"
NOTES: (UNLESS OTHERWISE SPECIFIED)
1. EQUIPMENT LIST:
02
