Stryker ProCuity Series User Manual

FFoooottbbooaarrdd ccoonnttrrooll ppaanneell -- PPoossiittiioonn
WWAARRNNIINNGG
• Always lower the product to its lowest height when the patient is unattended to reduce the risk of injury due to patient
falls.
• Always route the cables, wires, and tubing from other equipment so that parts of the product do not pinch them.
CCAAUUTTIIOONN -- Always clear the product of obstacles before you use motion functions.

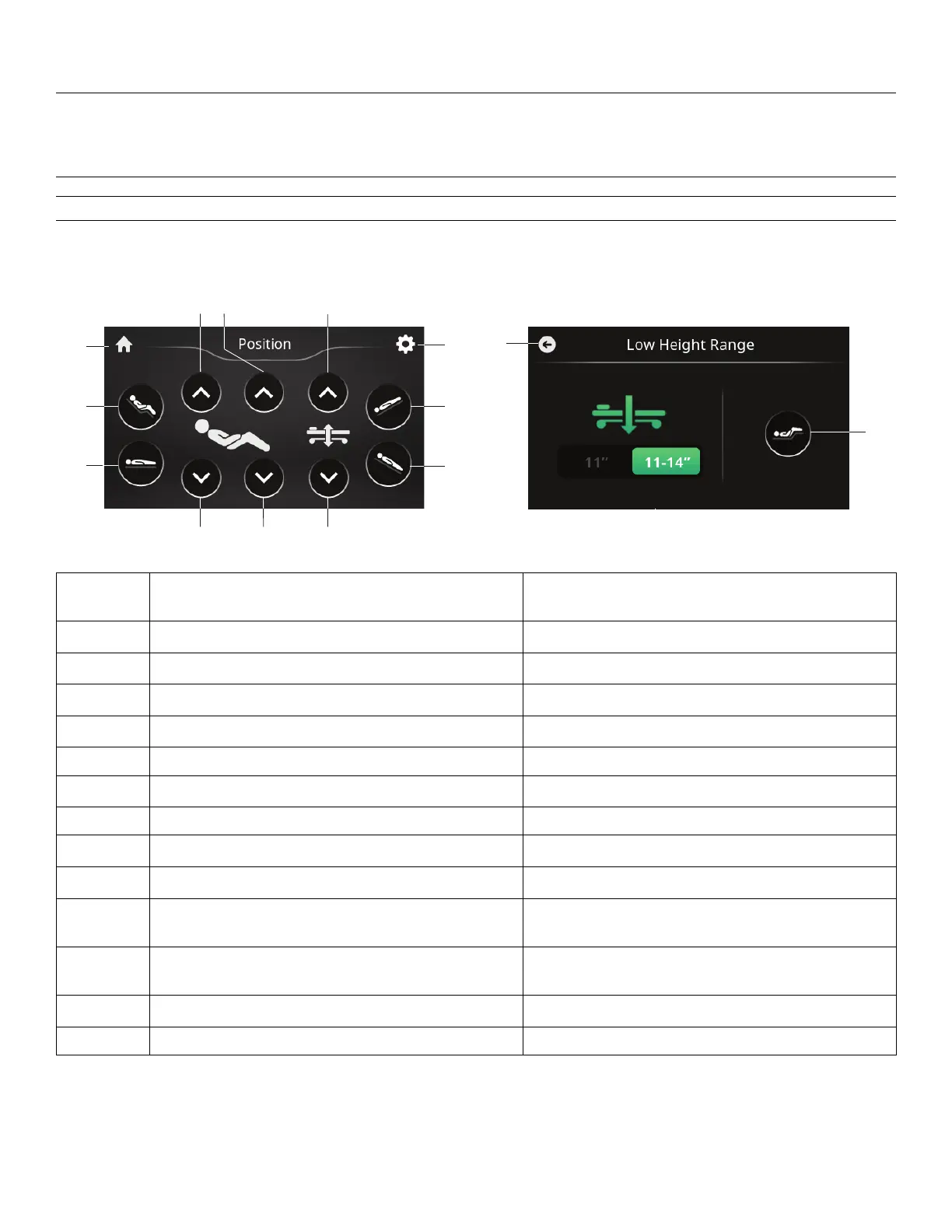

The PPoossiittiioonn screen displays the position functions of the product.
A
C
D
B
K
L
E IG
F JH
M
N
A Home
Returns to the HHoommee screen (see
Footboard control
panel - Home
(page 29))
B
Low height range Returns to the LLooww HHeeiigghhtt RRaannggee screen
C
Cardiac chair position Places the product into the cardiac chair position
D Bed flat
Places the product into a 0° horizontal position
E
Fowler up
Raises the Fowler
F Fowler down Lowers the Fowler
G
Gatch up
Raises the Gatch
H Gatch down Lowers the Gatch
I
Bed height up
Raises the litter
J
Bed height down
Lowers the litter
K
Trendelenburg
Places the product into the Trendelenburg position
(head down with foot up)
L
Reverse Trendelenburg
Places the product into the Reverse Trendelenburg
position (head up with foot down)
M
Vascular position Places the product into the vascular position
N Back Returns to the PPoossiittiioonn screen
EN 30 3009-009-001 Rev B.0

Stryker ProCuity Series Specifications

General

Bed Type	Hospital Bed
Weight Capacity	500 lbs (227 kg)
Integrated Scale	Yes
Bed Exit System	Yes
Side Rail Controls	Yes
Category	Medical Equipment
Monitoring Parameters	Weight, bed exit
Display	Touchscreen
Alarms	Bed Exit, Low Battery
