Configuring EC-1 to Use MIDI (continued)
STEP 3 SET MIDI OUT MODE

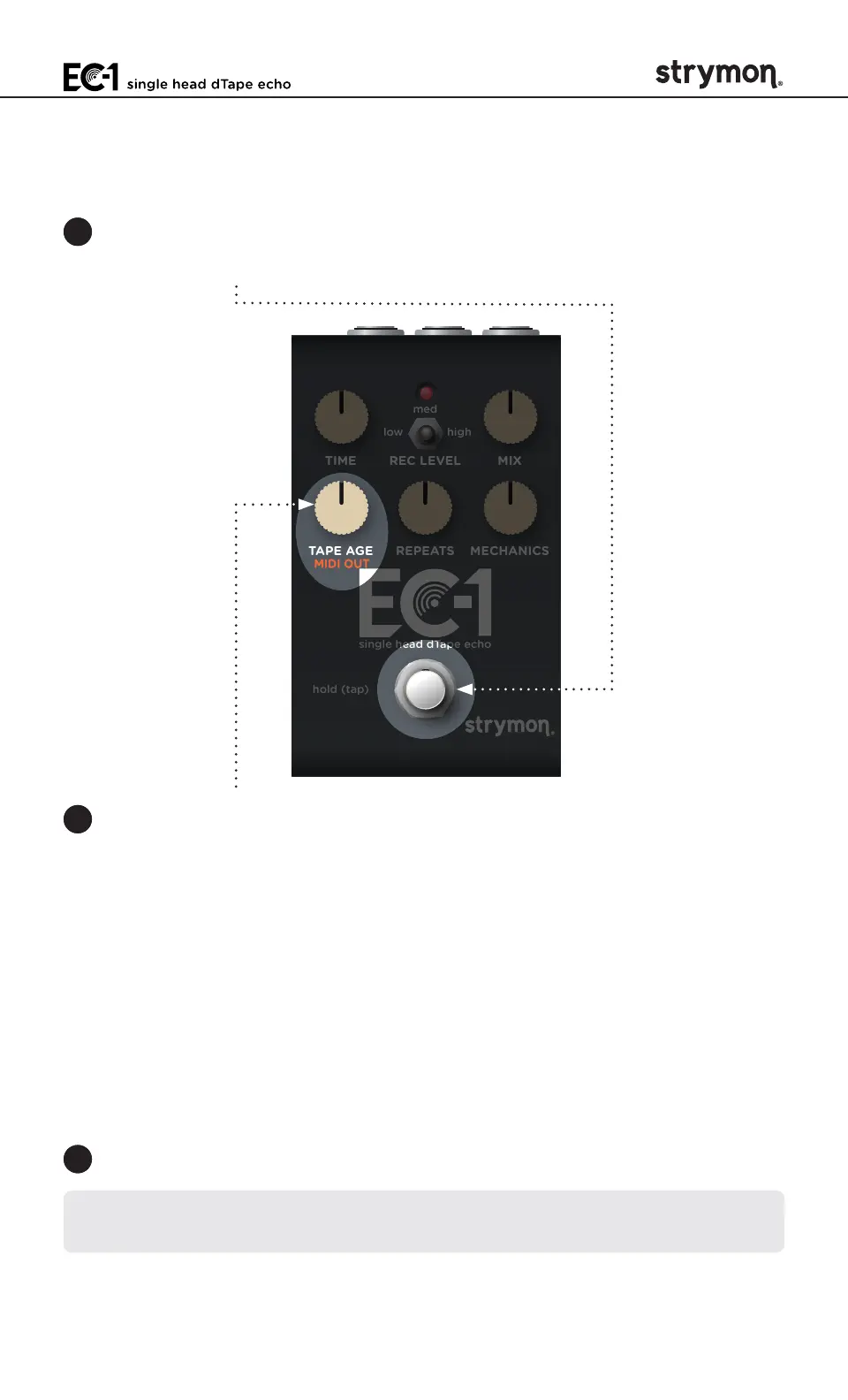

1 Press and hold the footswitch for at least 2 seconds while powering
up EC-1� Once the LED flashes RED, release the footswitch�
TIME REC LEVEL MIX
TAPE AGE REPEATS MECHANICS
low high
med
hold (tap)
single head dTape echo
2 Turn the TAPE AGE (MIDI OUT) knob to select what kind of MIDI data is
sent from EC-1 to other MIDI devices� The LED will flash momentarily
to indicate your selection�
• OFF: RED (default, minimum) - No MIDI messages are sent out of
EC-1�
• THRU: BLUE
(11 o’clock)
- Incoming MIDI messages are sent to the
MIDI Out without any additional MIDI messages generated by EC-1�
• SEND CC, OTHER: GREEN
(1 o’clock)
- MIDI CC and Sysex
messages generated by
EC-1
are sent to the MIDI Out�
• SEND OTHER: AMBER
(maximum)
- Sysex messages generated
by
EC-1
are sent to the MIDI Out�
3 Press the
FOOTSWITCH
to store the MIDI Out Mode and exit�
NOTE: MIDI data is sent from the RING of the TRS connection of the EXP/
MIDI jack�
