Studer 928 Service Manual

928 Mixing Console
E 2/4 Operation
Edition: 07.02.01
[24] 1, 2, 3, 4
Keys for selecting the four VCA group master faders located on the CR
Monitor and Studio Monitor Units. The selected group faders are act-
ing on the channel VCA in parallel to the channel fader. If a VCA group
master fader is selected, the corresponding key is illuminated.
[25] START ON
Two sets of relay contacts to start/stop external machines are avail-
able. These may be set to latching (default) or pulsed operation with
jumpers (refer to section 3.1.1). The relays are operative only if the
unit's LINE input is selected.
The START ON key works in conjunction with the fader's end switch.
The ON key will be illuminated at half intensity if the fader is in its
–∞ position when the ON key is pressed, indicating that the remote
start is armed. When the fader is moved up, the start relay is excited
and the LED in the ON key is illuminated with full intensity. Alter-
nately, if the fader is moved up before the ON key is activated, the
relay is excited as soon as the ON key is pressed.
[27] Fader
Linear Penny & Giles fader with VCA control. The fader is placed im-
mediately after the Mute section, allowing for 10 dB gain at its maxi-
mum setting.

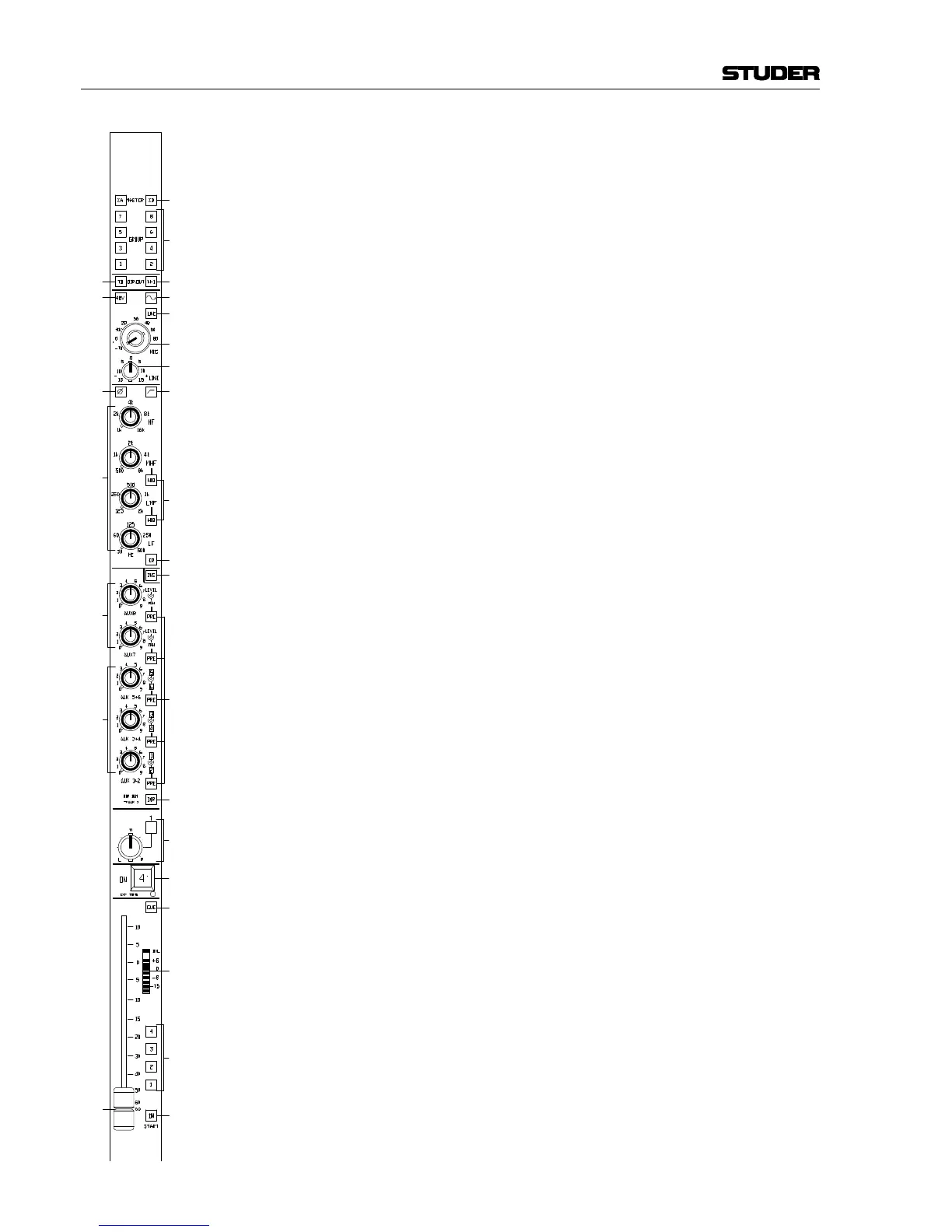

PAN
PAN TO GROUPS
[4]
[3]
[1]
[2]
[5] [6]
[7]
[10]
[8]
[9]
[11]
[13]
[12]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
