Studer 928 Service Manual

928 Mixing Console
E 2/8 Operation
Edition: 07.02.01
[24] START ON
Two sets of relay contacts to start/stop external machines are avail-
able. These may be set to latching (default) or pulsed operation with
jumpers (refer to section 3.1.2). The relays are operative only if the
unit's LINE input is selected.
The START ON key works in conjunction with the fader's end switch.
The ON key will be illuminated at half intensity if the fader is in its
–∞ position when the ON key is pressed, indicating that the remote
start is armed. When the fader is moved up, the start relay is excited
and the LED in the ON key is illuminated with full intensity. Alter-
nately, if the fader is moved up before the ON key is activated, the
relay is excited as soon as the ON key is pressed.
[25] Fader
Linear Penny & Giles fader with VCA control. The fader is placed im-
mediately after the Mute section, allowing for 10 dB gain at its maxi-
mum setting.

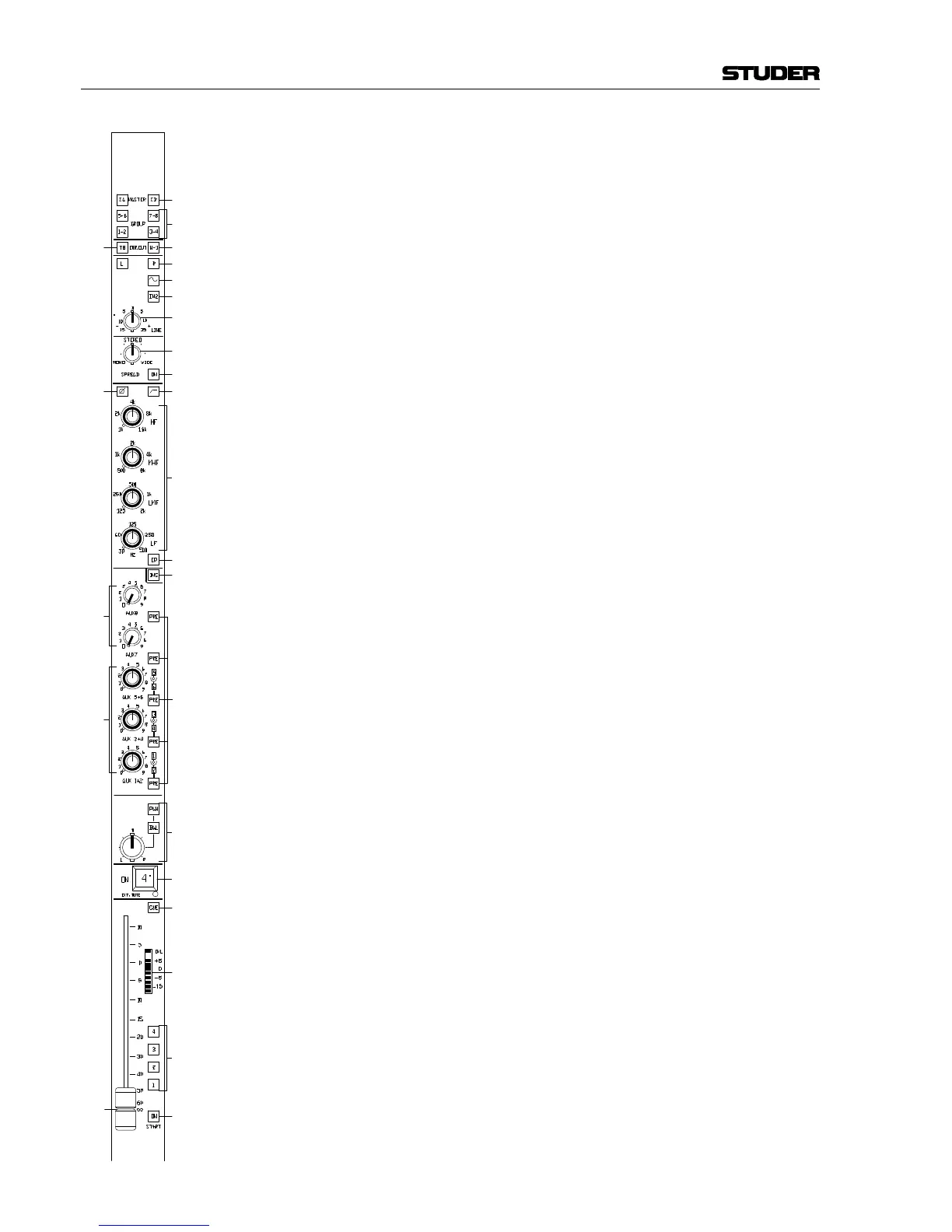

[4][3]
[1]
[2]
[5]
[6]
[11]
[8]
[10]
[13]
[14]
[15]
[16]
[17]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[7]
[9]
[12]
[18]
