OUTPUTS
① FX OUTPUTS
The REV1, REV2 and DEL1, DEL2 outputs can be routed, via their respective sub-pages, to
AUX1, AUX2 and the L-R Mix. The digiLive 4C has only two FX modules, REV1 and DEL1.
② AUX OUTPUTS
The AUX1 and AUX2 outputs can, if required, also be routed to the L-R MIX via their
respective Bus Send tabs.
Since these outputs can be routed to the L-R Mix Output, they can also be used either as two
separate mono subgroups or as a stereo pair.
③ MAIN MIX OUTPUTS
As their name implies, these two balanced XLR connectors carry the main audio outputs
from your digiLiVE mixer. In normal use, the output from each input channel and all internal
effects is routed to the Main Mix outputs.
④ GRAPHIC EQUALISER
The L-R Mix outputs are equipped with a stereo 31-band Graphic Equaliser that enables
you to adjust the overall frequency profile of these outputs in order to compensate for the
effects of room anomalies such as standing waves, excessive reflections, excessive
absorptions etc.

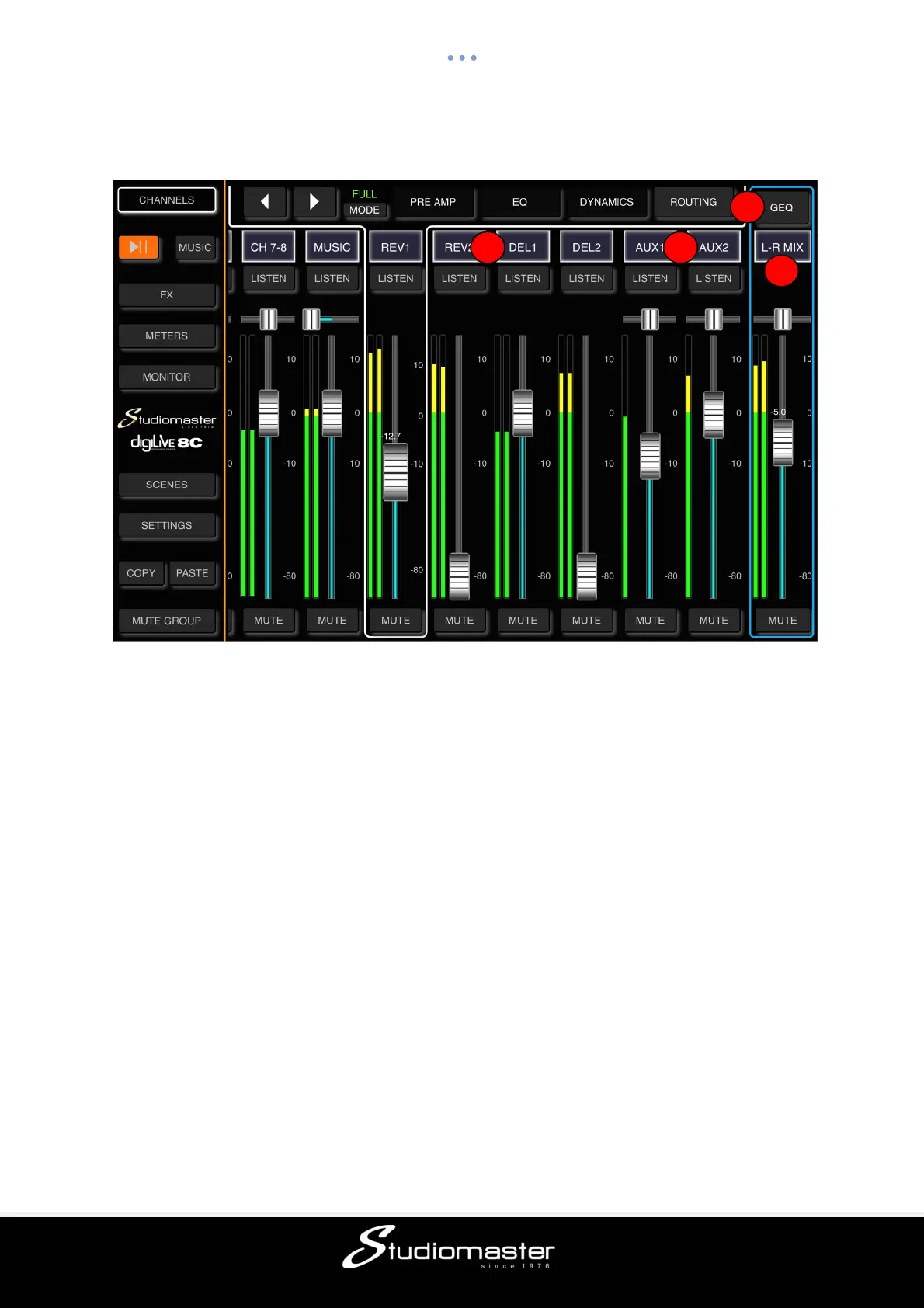

This GEQ is accessed through the GEQ Page, which can be opened by touching the GEQ
button above the L-R Mix fader (GEQ button turns yellow and GEQ Page opens).
1 2
3
4
