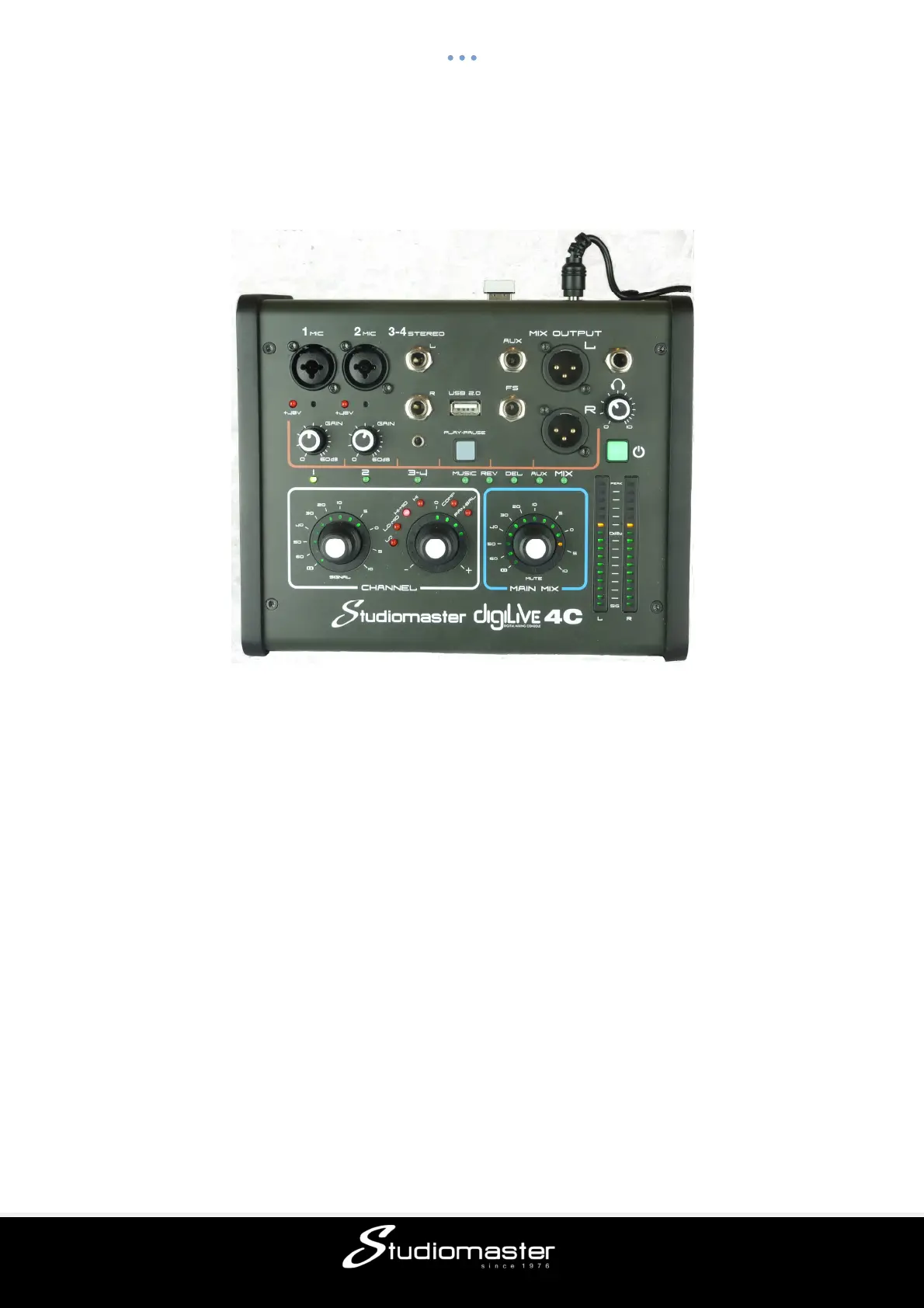

FRONT PANEL
The digiLiVE 4C features two mono Mic/Line input channels (each with combination
XLR/TRS jack connectors and switchable phantom power); stereo Left and Right line-level
inputs (TRS jack or stereo minijack); and one stereo USB Input for music playback (mp3 or
WAV files). Two balanced XLR stereo Mix Outputs (Left and Right) allow you to connect to
active loudspeakers or to a power amplifier and loudspeakers. Two separate internal busses
feed the two onboard effects (REVerb and DELay). One auxiliary output (AUX1) is provided
to enable you either to connect to an active loudspeaker or to a power amplifier and
loudspeaker combination to provide stage monitoring or an additional mix output, or to feed
an external effects unit whose output could be returned to the digiLiVE via the analogue
stereo L-R inputs. A stereo Headphone output provides local monitoring of inputs and
outputs. One Footswitch jack allows you to connect a footswitch to switch the delay and
reverb on and off.
