9.4.4.2 Function block
M13469-3 v4
QC BAY
LR_OFF
LR_LO C
LR_RE M
LR_VALID
BL_UPD
BL_CMD
PSTO
UPD_BLKD
CMD_BL KD
LOC
STA
REM
IEC10000048-3-en.vsdx
IEC10000048 V3 EN-US

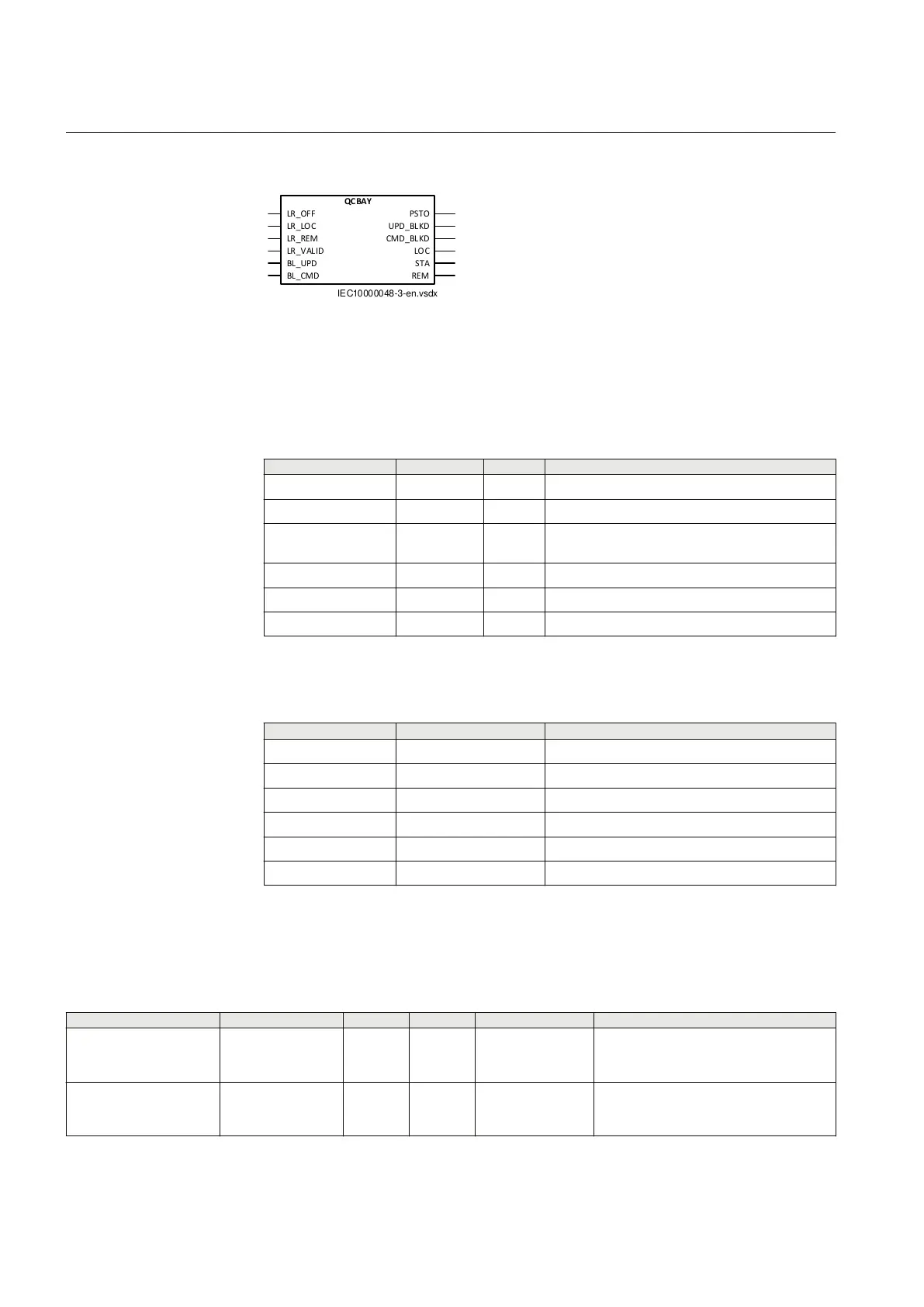

Figure 122: QCBAY function block
9.4.4.3 Signals
PID-4086-INPUTSIGNALS v8
Table 157: QCBAY Input signals
Name Type Default Description
LR_OFF BOOLEAN 0 External Local/Remote switch is in Off position
LR_LOC BOOLEAN 0 External Local/Remote switch is in Local position
LR_REM BOOLEAN 0 External Local/Remote switch is in Remote
position
LR_VALID BOOLEAN 0 Data representing the L/R switch position is valid
BL_UPD BOOLEAN 0 Steady signal to block the position updates
BL_CMD BOOLEAN 0 Steady signal to block the command
PID-4086-OUTPUTSIGNALS v8
Table 158: QCBAY Output signals
Name
Type Description
PSTO INTEGER Value for the operator place allocation
UPD_BLKD BOOLEAN Update of position is blocked
CMD_BLKD BOOLEAN Function is blocked for commands
LOC BOOLEAN Local operation allowed
STA BOOLEAN Station operation allowed
REM BOOLEAN Remote operation allowed
9.4.4.4 Settings
PID-4086-SETTINGS v8
Table 159: QCBAY Non group settings (basic)
Name
Values (Range) Unit Step Default Description
AllPSTOValid Priority
No priority
- - Priority Override Priority of originators,
commands from both local, station and
remote are allowed
RemoteIncStation
No
Yes
- - No Both Station and Remote control are
allowed but not Local when local remote
switch is in remote
Section 9 1MRK 505 384-UEN A
Control
274 Breaker protection REQ650 2.2 IEC
Technical manual
