11.10.3 Function block
GUID-D0E9688B-C9D9-44B7-BD95-81132CCA5E4F v1
TEILGAPC
BLOCK
IN
ADDTIME
RESET
ALARM
WARNING
OVERFLOW
ACC_HOUR
ACC_DAY
IEC15000323.vsdx
IEC15000323 V1 EN-US

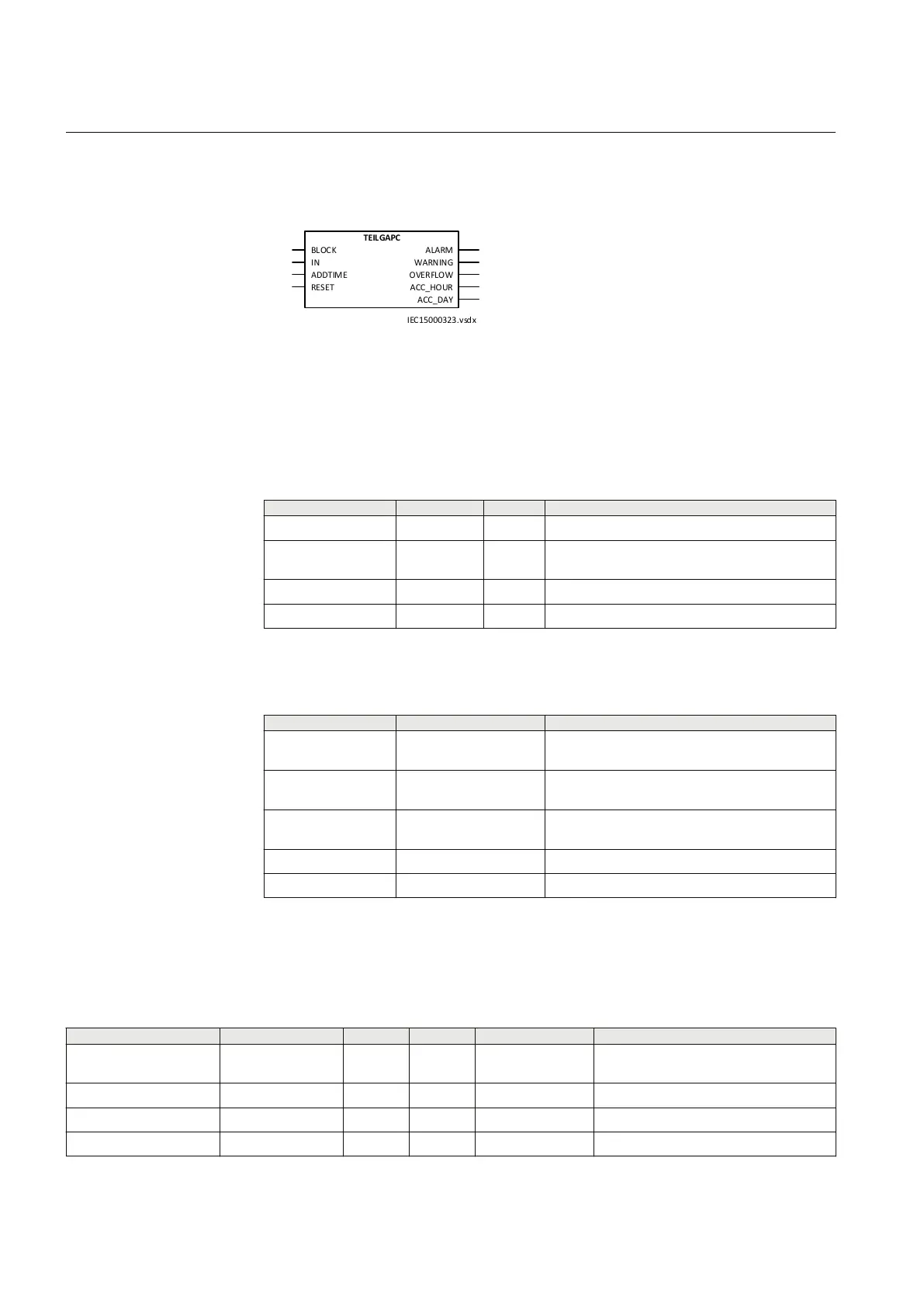

Figure 234: TEILGAPC function block
11.10.4 Signals
PID-6998-INPUTSIGNALS v1
Table 366: TEILGAPC Input signals
Name Type Default Description
BLOCK BOOLEAN 0 Freeze the accumulation and block the outputs
IN BOOLEAN 0 The input signal that is used to measure the
elapsed time, when its value is high
ADDTIME BOOLEAN 0 Add time to the accumulation
RESET BOOLEAN 0 Reset accumulated time
PID-6998-OUTPUTSIGNALS v1
Table 367: TEILGAPC Output signals
Name
Type Description
ALARM BOOLEAN Indicator that accumulated time has reached
alarm limit
WARNING BOOLEAN Indicator that accumulated time has reached
warning limit
OVERFLOW BOOLEAN Indicator that accumulated time has reached
overflow limit
ACC_HOUR REAL Accumulated time in hours
ACC_DAY REAL Accumulated time in days
11.10.5 Settings
PID-6998-SETTINGS v1
Table 368: TEILGAPC Group settings (basic)
Name
Values (Range) Unit Step Default Description
Operation Off
On
- - Off Operation Off / On
tAlarm 1.0 - 99999.9 Hour 0.1 90000.0 Time limit for alarm supervision
tWarning 1.0 - 99999.9 Hour 0.1 50000.0 Time limit for warning supervision
tAddToTime 0.0 - 99999.9 Hour 0.1 0.0 Time to add to the accumulation
Section 11 1MRK 505 384-UEN A
Monitoring
488 Breaker protection REQ650 2.2 IEC
Technical manual
