On
Off
t
tdelay
tdelay
IEC08000289-2- en.vsd
Input
IEC08000289 V2 EN-US

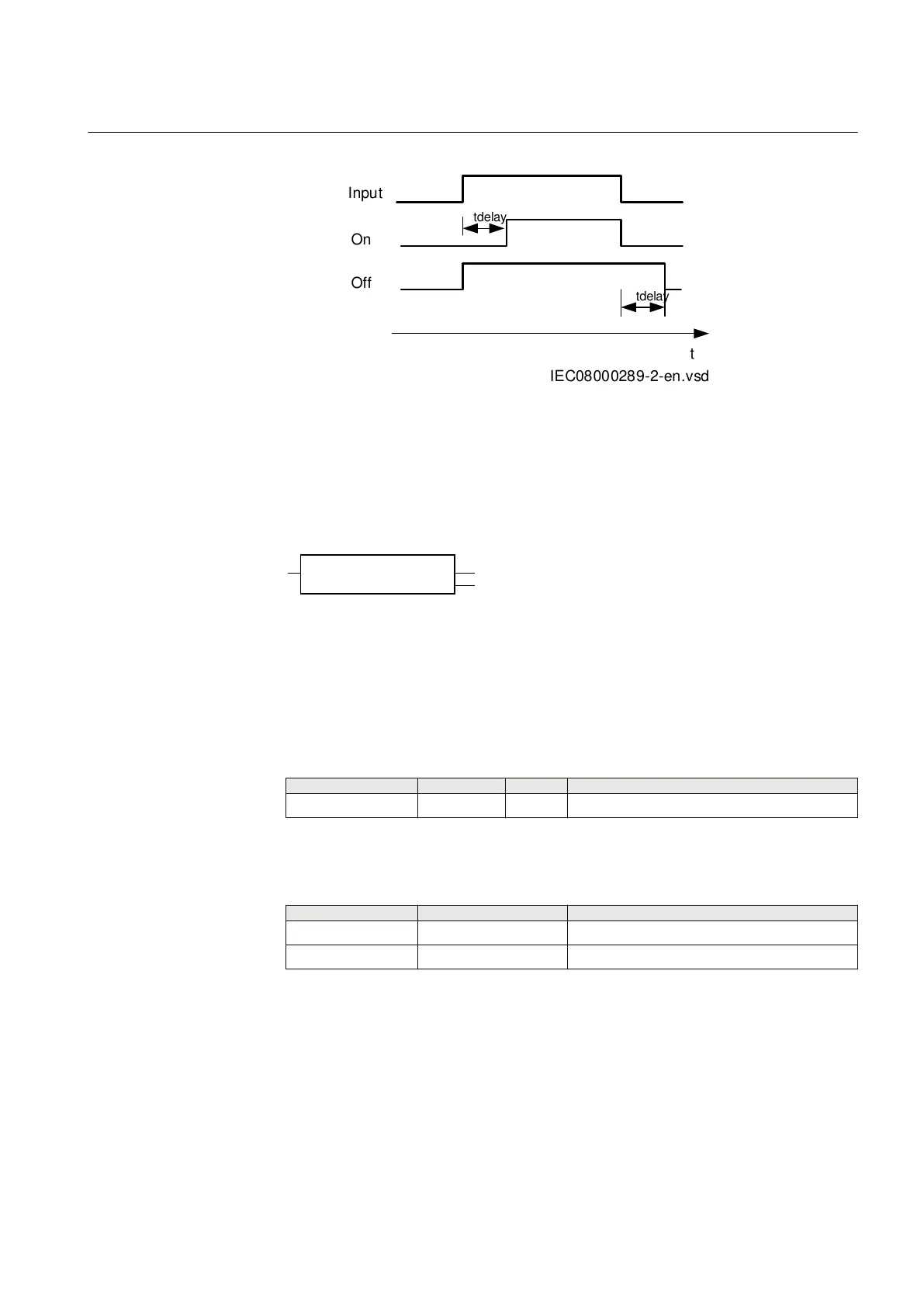

Figure 177: TIMERSET status diagram
10.7.9.1 Function block
M11495-3 v3
IEC04000411-2-en.vsd
TIMERSET
INPUT ON
OFF
IEC04000411 V2 EN-US
Figure 178: TIMERSET function block
10.7.9.2 Signals
PID-6976-INPUTSIGNALS v1
Table 252: TIMERSET Input signals
Name
Type Default Description
INPUT BOOLEAN 0 Input to timer
PID-6976-OUTPUTSIGNALS v1
Table 253: TIMERSET Output signals
Name
Type Description
ON BOOLEAN Output from timer, pick-up delayed
OFF BOOLEAN Output from timer, drop-out delayed
1MRK 505 384-UEN A Section 10
Logic
Breaker protection REQ650 2.2 IEC 363
Technical manual
