t t
INPUTn
OUTPUTn
IEC09000732-1-en.vsd
IEC09000732 V1 EN-US

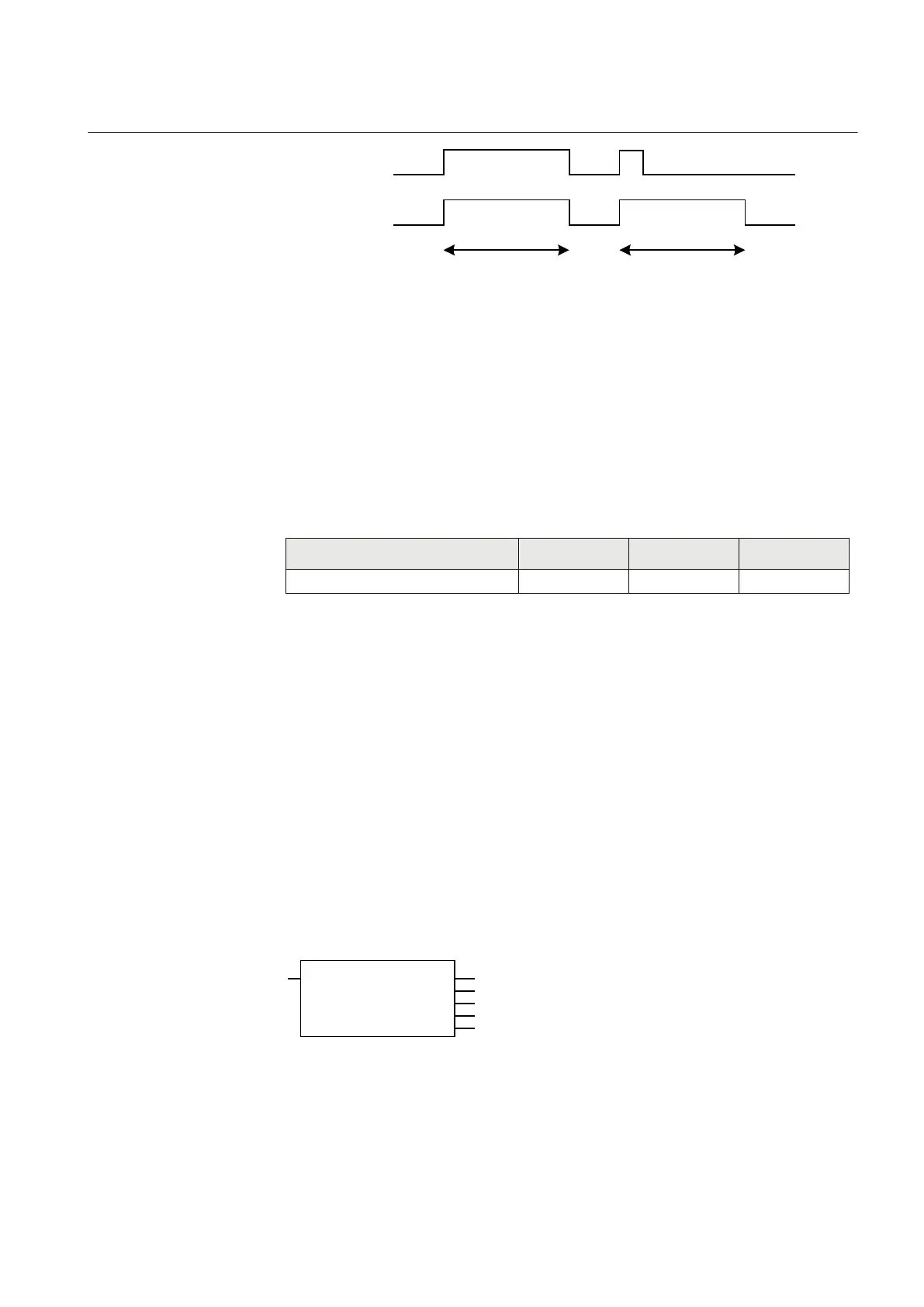

Figure 228: BINSTATREP logical diagram
11.8 Measured value expander block RANGE_XP
SEMOD52451-1 v2
11.8.1 Identification
SEMOD113212-2 v3
Function description IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
Measured value expander block RANGE_XP - -
11.8.2 Functionality
SEMOD52450-4 v7
The current and voltage measurements functions (CVMMXN, CMMXU, VMMXU
and VNMMXU), current and voltage sequence measurement functions (CMSQI
and VMSQI) and IEC 61850 generic communication I/O functions (MVGAPC) are
provided with measurement supervision functionality. All measured values can be
supervised with four settable limits: low-low limit, low limit, high limit and high-
high limit. The measure value expander block (RANGE_XP) has been introduced
to enable translating the integer output signal from the measuring functions to 5
binary signals: below low-low limit, below low limit, normal, above high limit or
above high-high limit. The output signals can be used as conditions in the
configurable logic or for alarming purpose.
11.8.3 Function block
SEMOD54336-4 v3
IEC05000346-2-en.vsd
RANGE_XP
RANGE* HIGHHIGH
HIGH
NORMAL
LOW
LOWLOW
IEC05000346 V2 EN-US
Figure 229: RANGE_XP function block
1MRK 505 384-UEN A Section 11
Monitoring
Breaker protection REQ650 2.2 IEC 481
Technical manual
