LOCREM is set to choose if the switch signals are coming from the local HMI or
from an external hardware switch connected via binary inputs.
9.4.5.1 Function block
M17088-3 v3
LOCREM
CTRLOFF
LOCCTRL
REMCTRL
LHMICTRL
OFF
LOCAL
REMOTE
VAL ID
IEC05000360-3-en.vsdx
IEC05000360 V3 EN-US

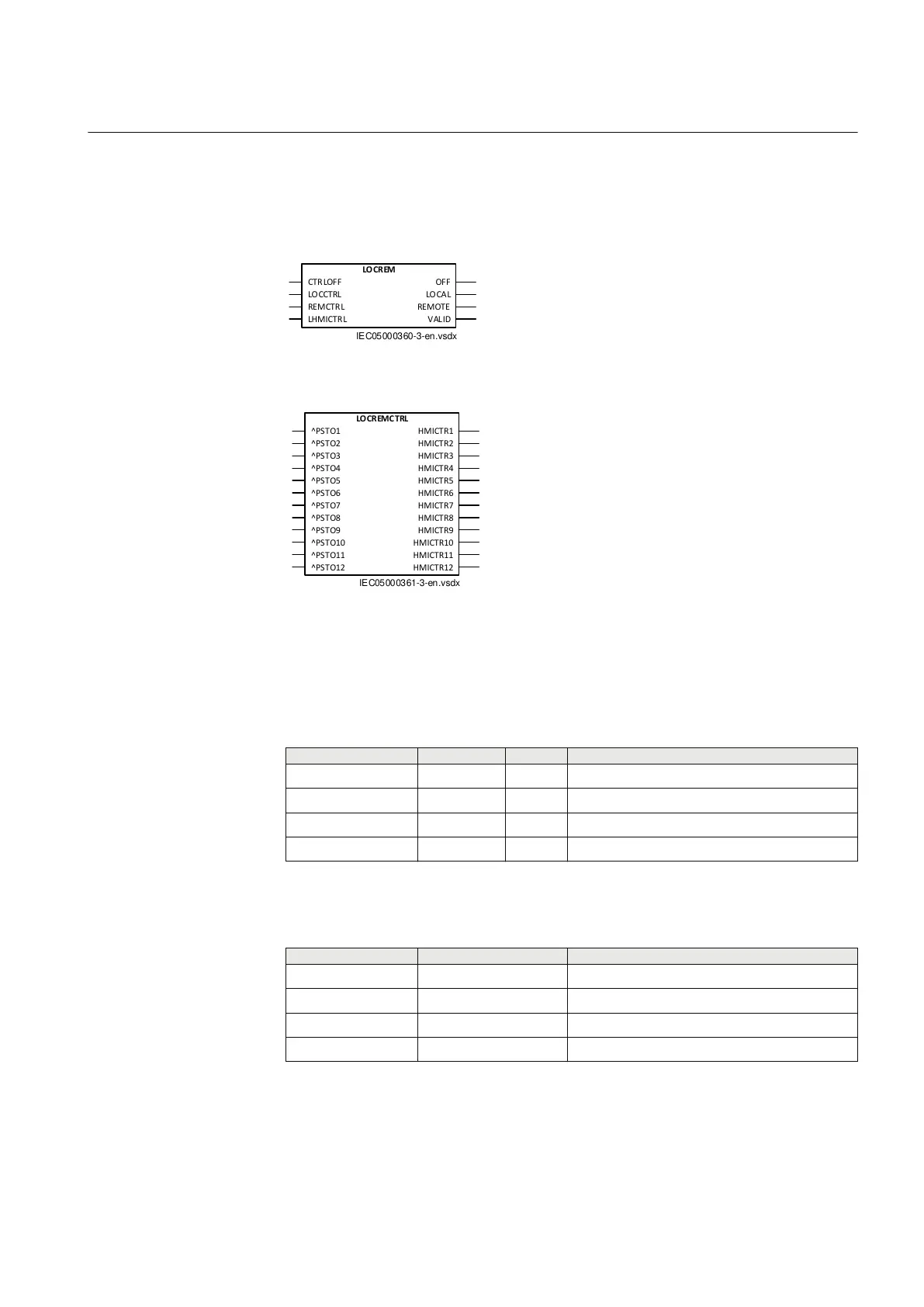

Figure 123: LOCREM function block
LOCREMC TRL
^PSTO1
^PSTO2
^PSTO3
^PSTO4
^PSTO5
^PSTO6
^PSTO7
^PSTO8
^PSTO9
^PSTO10
^PSTO11
^PSTO12
HMICTR1
HMICTR2
HMICTR3
HMICTR4
HMICTR5
HMICTR6
HMICTR7
HMICTR8
HMICTR9
HMICTR10
HMICTR11
HMICTR12
IEC05000361-3-en.vsdx
IEC05000361 V3 EN-US
Figure 124: LOCREMCTRL function block
9.4.5.2 Signals
PID-3944-INPUTSIGNALS v7
Table 161: LOCREM Input signals
Name
Type Default Description
CTRLOFF BOOLEAN 0 Disable control
LOCCTRL BOOLEAN 0 Local in control
REMCTRL BOOLEAN 0 Remote in control
LHMICTRL INTEGER 0 LHMI control
PID-3944-OUTPUTSIGNALS v7
Table 162: LOCREM Output signals
Name
Type Description
OFF BOOLEAN Control is disabled
LOCAL BOOLEAN Local control is activated
REMOTE BOOLEAN Remote control is activated
VALID BOOLEAN Outputs are valid
