AUTOBITS function plays the same role as functions GOOSEBINRCV (for IEC
61850) and MULTICMDRCV (for LON).
9.9.3 Function block
SEMOD158603-4 v3
IEC09000925-1-en.vsd
AUTOBITS
BLOCK
PSTO
^CMDBIT1
^CMDBIT2
^CMDBIT3
^CMDBIT4
^CMDBIT5
^CMDBIT6
^CMDBIT7
^CMDBIT8
^CMDBIT9
^CMDBIT10
^CMDBIT11
^CMDBIT12
^CMDBIT13
^CMDBIT14
^CMDBIT15
^CMDBIT16
^CMDBIT17
^CMDBIT18
^CMDBIT19
^CMDBIT20
^CMDBIT21
^CMDBIT22
^CMDBIT23
^CMDBIT24
^CMDBIT25
^CMDBIT26
^CMDBIT27
^CMDBIT28
^CMDBIT29
^CMDBIT30
^CMDBIT31
^CMDBIT32
IEC09000925 V1 EN-US

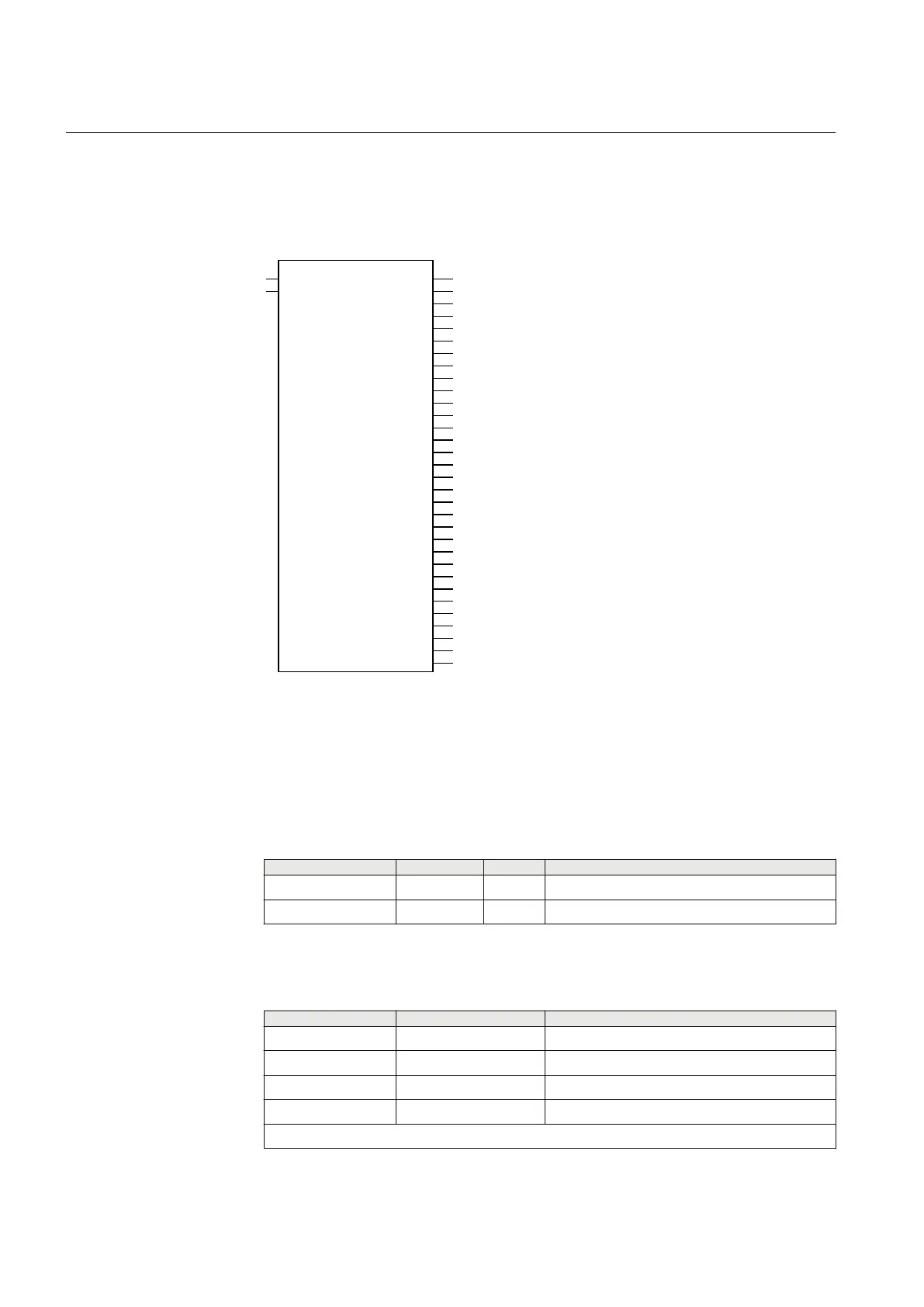

Figure 151: AUTOBITS function block
9.9.4 Signals
PID-3776-INPUTSIGNALS v6
Table 192: AUTOBITS Input signals
Name
Type Default Description
BLOCK BOOLEAN 0 Block of function
PSTO INTEGER 0 Operator place selection
PID-3776-OUTPUTSIGNALS v6
Table 193: AUTOBITS Output signals
Name
Type Description
CMDBIT1 BOOLEAN Command out bit 1
CMDBIT2 BOOLEAN Command out bit 2
CMDBIT3 BOOLEAN Command out bit 3
CMDBIT4 BOOLEAN Command out bit 4
Table continues on next page
Section 9 1MRK 505 384-UEN A
Control
320 Breaker protection REQ650 2.2 IEC
Technical manual
