14.4.6 GOOSE function block to receive a double point value
GOOSEDPRCV
14.4.6.1 Identification
GUID-8C11DB9A-7844-4E1F-A6BB-D97ECE350FC1 v1
Function description IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
GOOSE function block to receive a
double point value
GOOSEDPRCV - -
14.4.6.2 Functionality
GUID-1D2DBC22-4F04-4809-B34E-8939D442C185 v3
GOOSEDPRCV is used to receive a double point value using IEC 61850 protocol
via GOOSE.

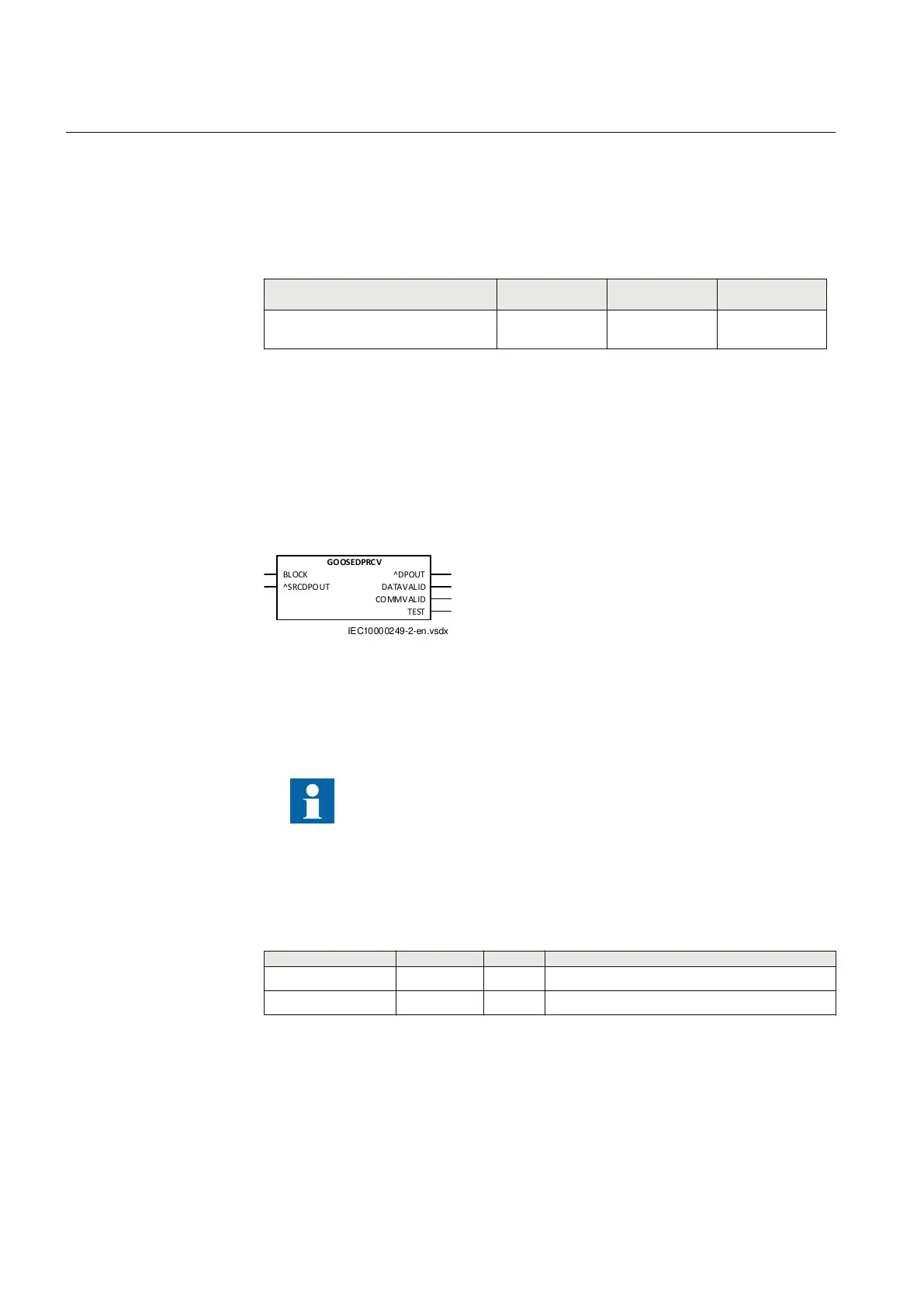

14.4.6.3 Function block
GUID-ED277880-FB5D-4630-872F-9F343D449FFE v1
GOOSEDPRC V
BLOCK
^SRCDPOUT
^DPOUT
DATAV ALID
COMMVALID
TEST
IEC10000249-2-en.vsdx
IEC10000249 V2 EN-US
Figure 254: GOOSEDPRCV function block
14.4.6.4 Signals
GUID-2DC54788-86AF-4B4B-8E57-A89E30F0C433 v1
Except for the BLOCK input, the rest of the inputs of this GOOSE
function block are used for GOOSE connections. These
connections are visible and possible to make only if Easy GOOSE
engineering is enabled. For instructions on how to enable Easy
GOOSE engineering in PCM600, refer to the Engineering Manual.
PID-6828-INPUTSIGNALS v3
Table 400: GOOSEDPRCV Input signals
Name
Type Default Description
BLOCK BOOLEAN 0 Block of function
SRCDPOUT INTEGER 0 Source to double point output
Section 14 1MRK 505 384-UEN A
Station communication
528 Breaker protection REQ650 2.2 IEC
Technical manual
