xx00000299.vsd
2
1
3
Output module
IEC00000299 V1 EN-US

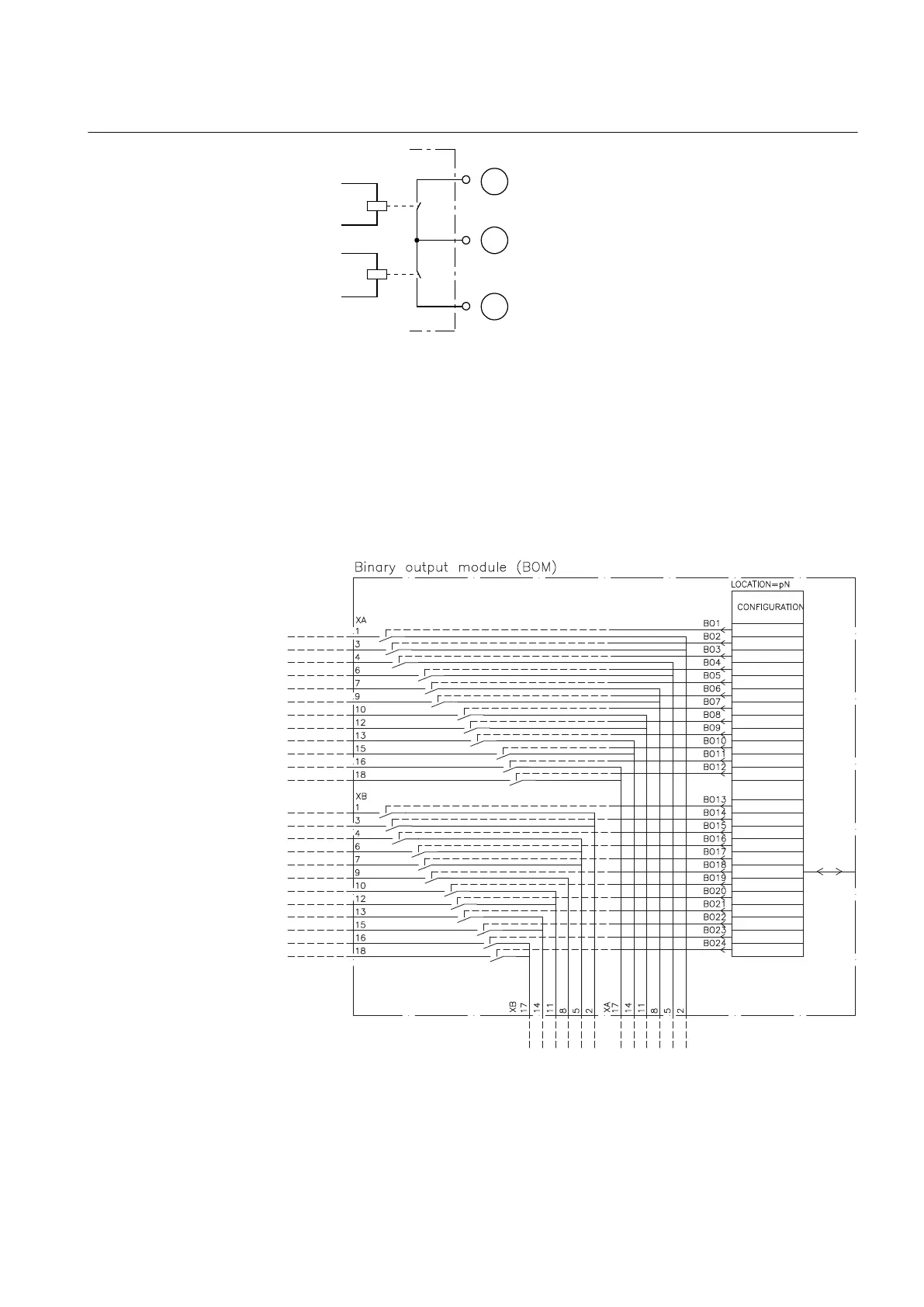

Figure 311: Relay pair example
1 Output connection from relay 1
2 Output signal power source connection
3 Output connection from relay 2
IEC99000505 V3 EN-US
Figure 312: Connection diagram
1MRK 505 384-UEN A Section 17
IED hardware
Breaker protection REQ650 2.2 IEC 693
Technical manual
