Screw
terminal
X3
1
2
1
2
3
4
5
6
Screw
terminal
X1
Backplane
Angle
bracket
RS485
PWB
IEC06000517 V1 EN-US

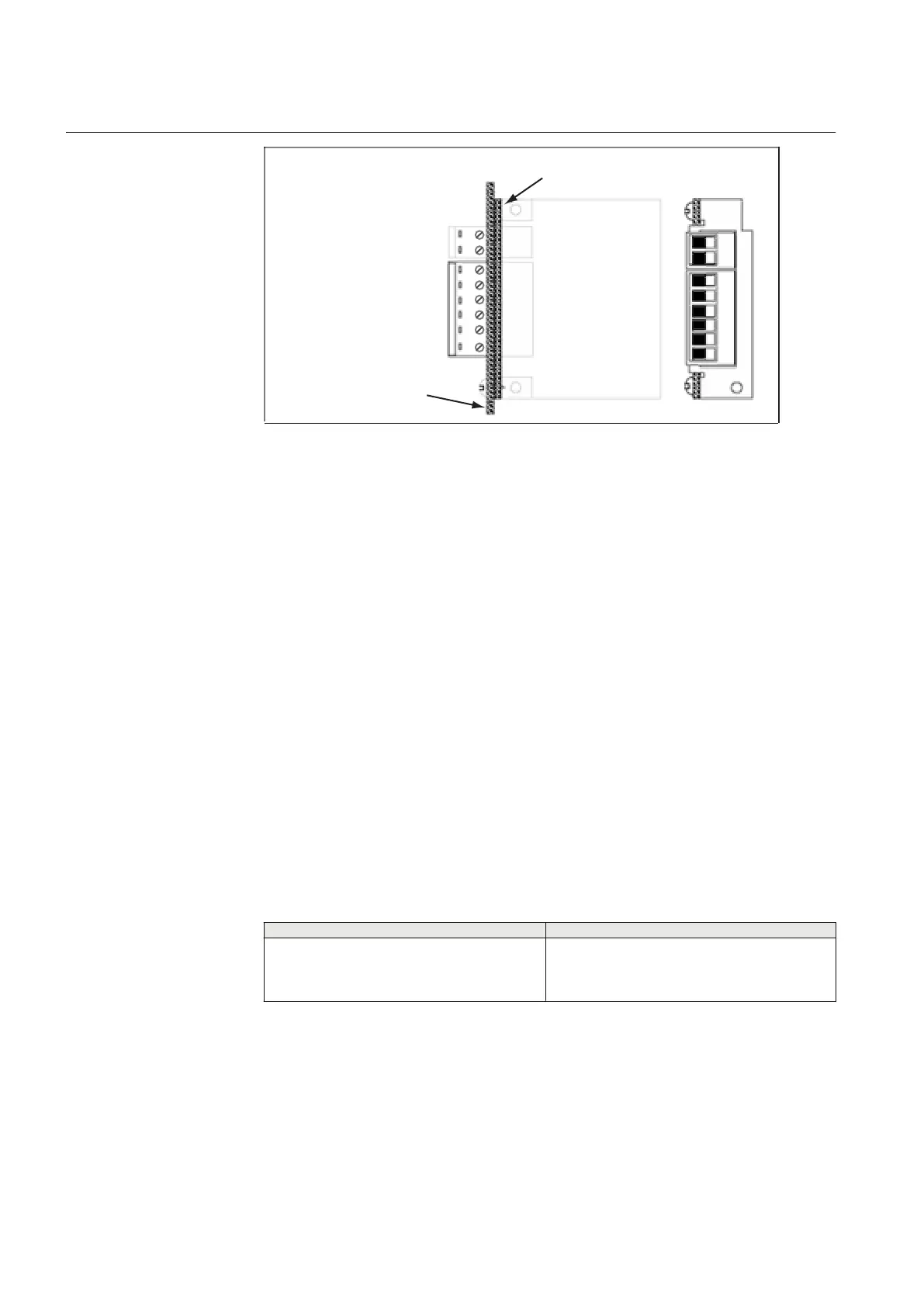

Figure 315: RS485 connector
• 2-wire: Connect pin 1 to pin 6 and pin 2 to pin 5
• Termination (2-wire): Connect pin 1 to pin 3
• Termination (4-wire): Connect pin 1 to pin 3 and pin 4 to pin 6
Soft ground connector pinouts
SEMOD158670-45 v1
A second 2-pole screw connector is used for the connection of IO-ground. It can be
used in two combinations like:
• Unconnected: No ground of the IO-part · .
• Soft grounded: The IO is connected to the GND with an RC net parallel with a
MOV
17.2.11.3 Technical data
SEMOD158678-1 v1
SEMOD158710-2 v2
Table 567: Galvanic RS485 communication module
Quantity
Range or value
Communication speed 2400–19200 bauds
External connectors RS-485 6-pole connector
Soft ground 2-pole connector
Section 17 1MRK 505 384-UEN A
IED hardware
708 Breaker protection REQ650 2.2 IEC
Technical manual
