IEC15000448-1-en.vsd
IEC15000448 V1 EN-US

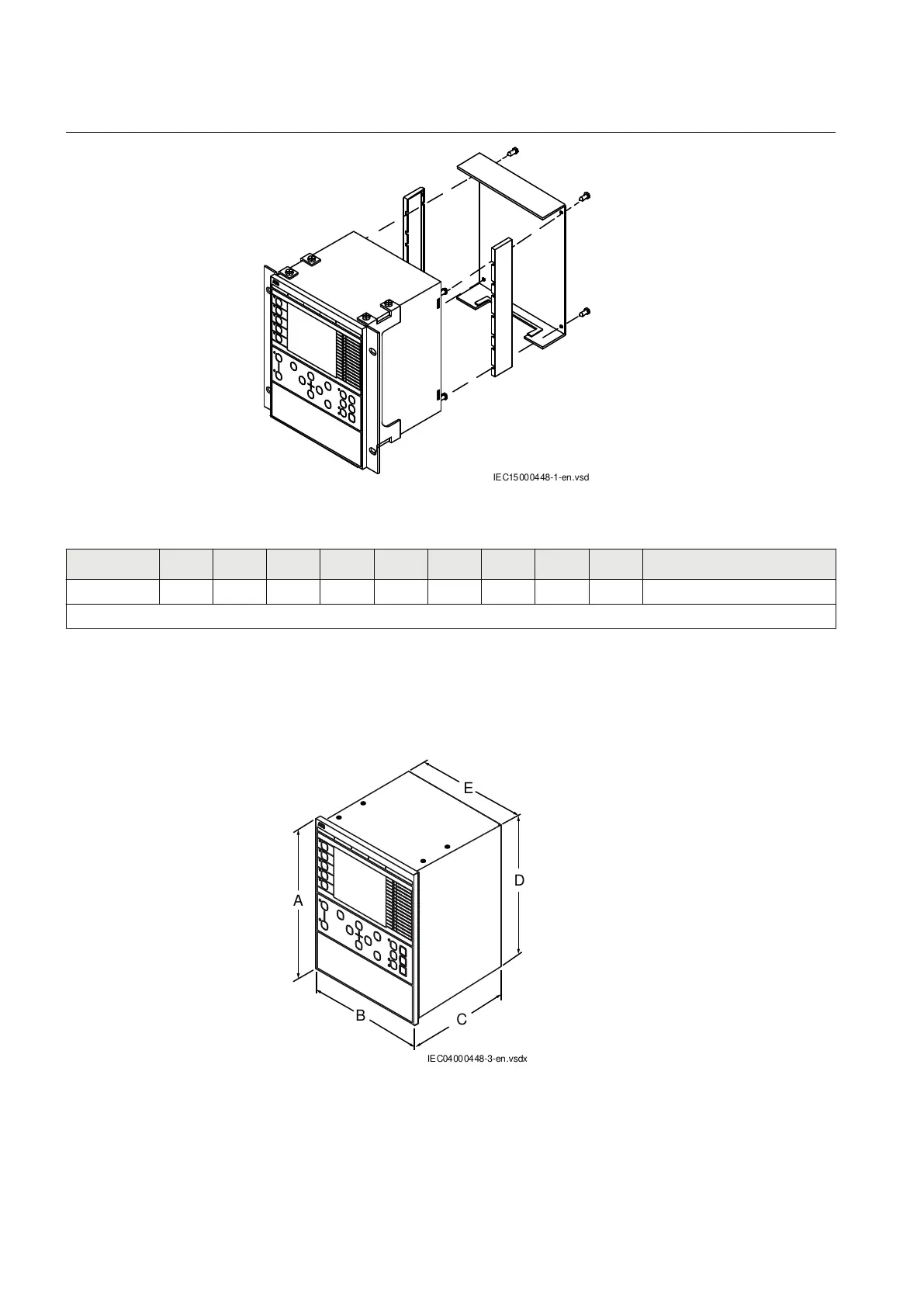

Figure 319: Rear cover case with details
M11985-120 v4
Case size
(mm)
A B C D E F G H J K
6U, 1/2 x 19” 265.9 223.7 242.1 255.8 205.7 190.5 203.7 465.1 228.6 482.6
The H and K dimensions are defined by the 19” rack mounting kit.
17.3.2 Case without rear cover
SEMOD53195-1 v1
M2152-3 v5
IEC04000448-3-en.vsdx
C
D
E
A
B
IEC04000448 V3 EN-US
Figure 320: Case without rear cover
Section 17 1MRK 505 384-UEN A
IED hardware
712 Breaker protection REQ650 2.2 IEC
Technical manual
