17.4.1.2 Mounting procedure for flush mounting
M11942-2 v5
1
5
6
3
IEC16000080=1=en .vsd
2
4
IEC16000080 V1 EN-US

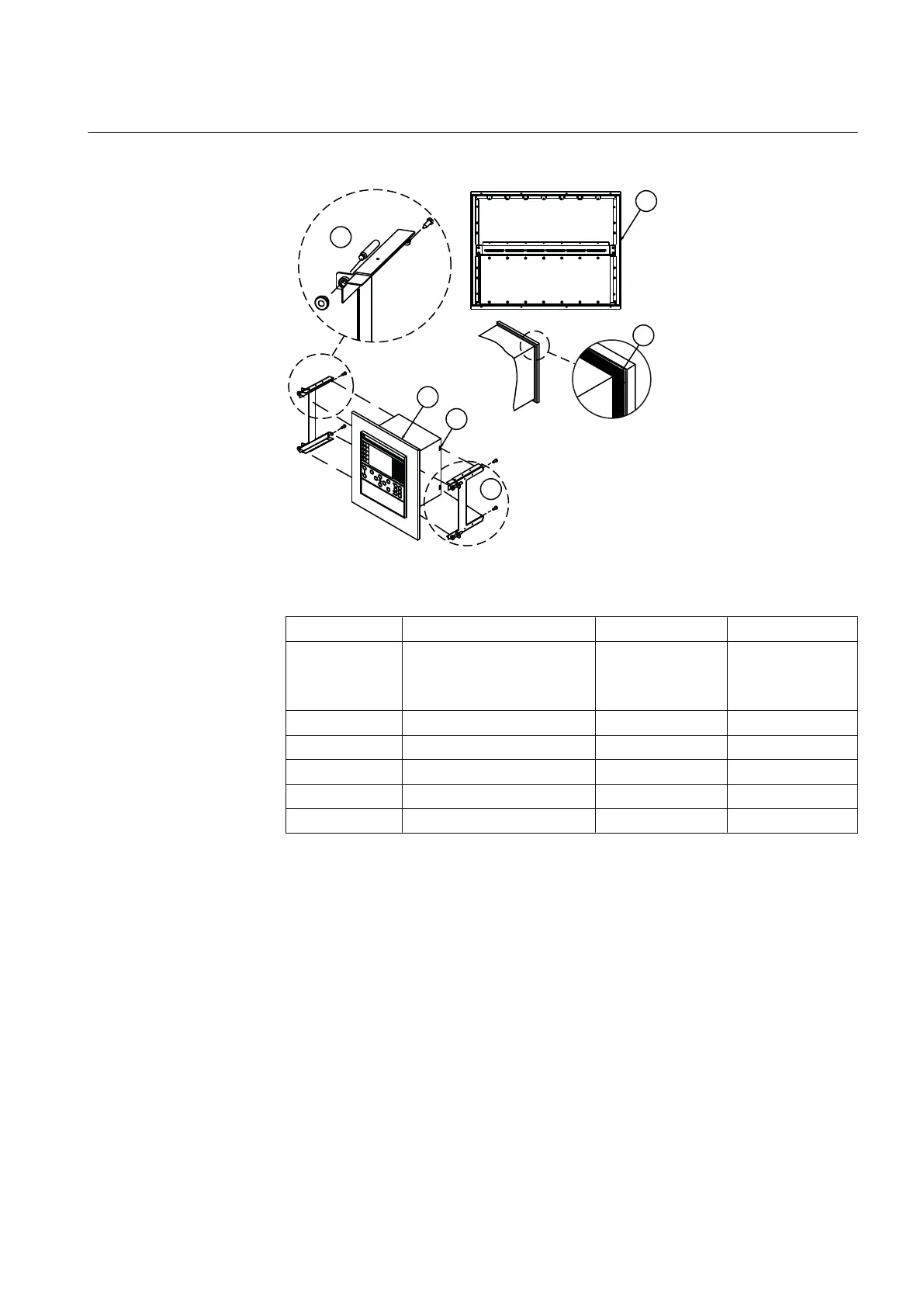

Figure 326: Flush mounting details.
PosNo
Description Quantity Type
1 Sealing strip, used to obtain
IP54 class. The sealing strip is
factory mounted between the
case and front plate.
-
-
2 Fastener 2 -
3 Groove - -
4 Screw 4 M3x8 mm
5 Joining point of sealing strip - -
6 Panel - -
17.4.2 19” panel rack mounting
IP10313-1 v1
17.4.2.1 Overview
SEMOD127656-5 v4
The IED can be mounted in a standard 19” cubicle rack by using a mounting kit
consisting of two mounting angles and their fastening screws.
The mounting angles are reversible which enables mounting of the IED either to
the left or the right side of the cubicle.
