Section 18 Labels
18.1 Labels on IED
SEMOD168249-4 v4
Front view of IED
IEC16000081=1=en.vsdx
9
8
7
6
5
4
1
2
3
10
IEC16000081 V1 EN-US

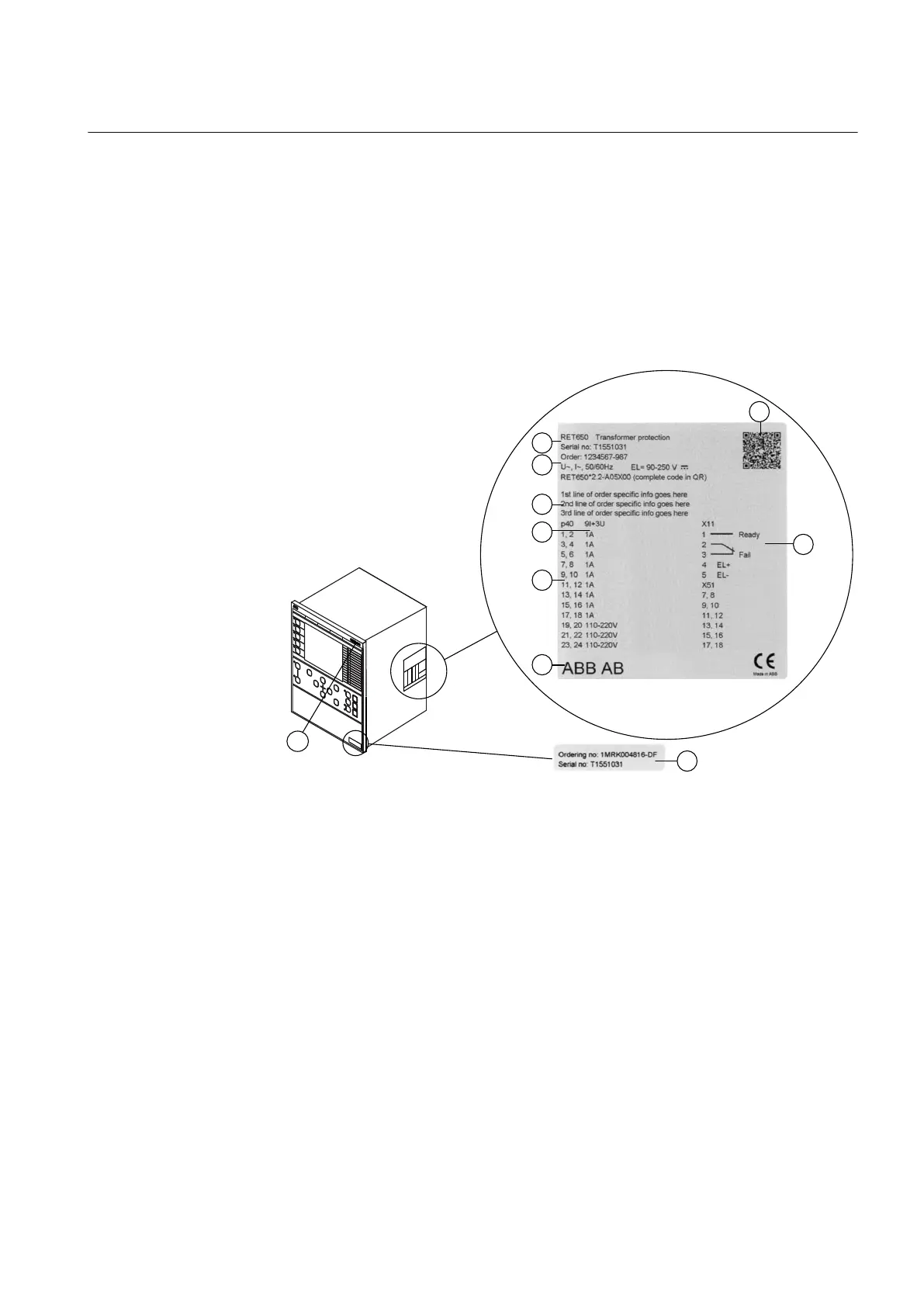

Figure 333: Example of IED label
1
QR-code containing the complete ordering code
2 Power supply module (PSM)
3 Ordering and serial number
4 Manufacturer
5 Transformer designations
6 Transformer input module, rated currents and voltages
7 Optional, customer specific information
8 Order number, dc supply voltage and rated frequency
9 Product type, description and serial number
10 Product type
