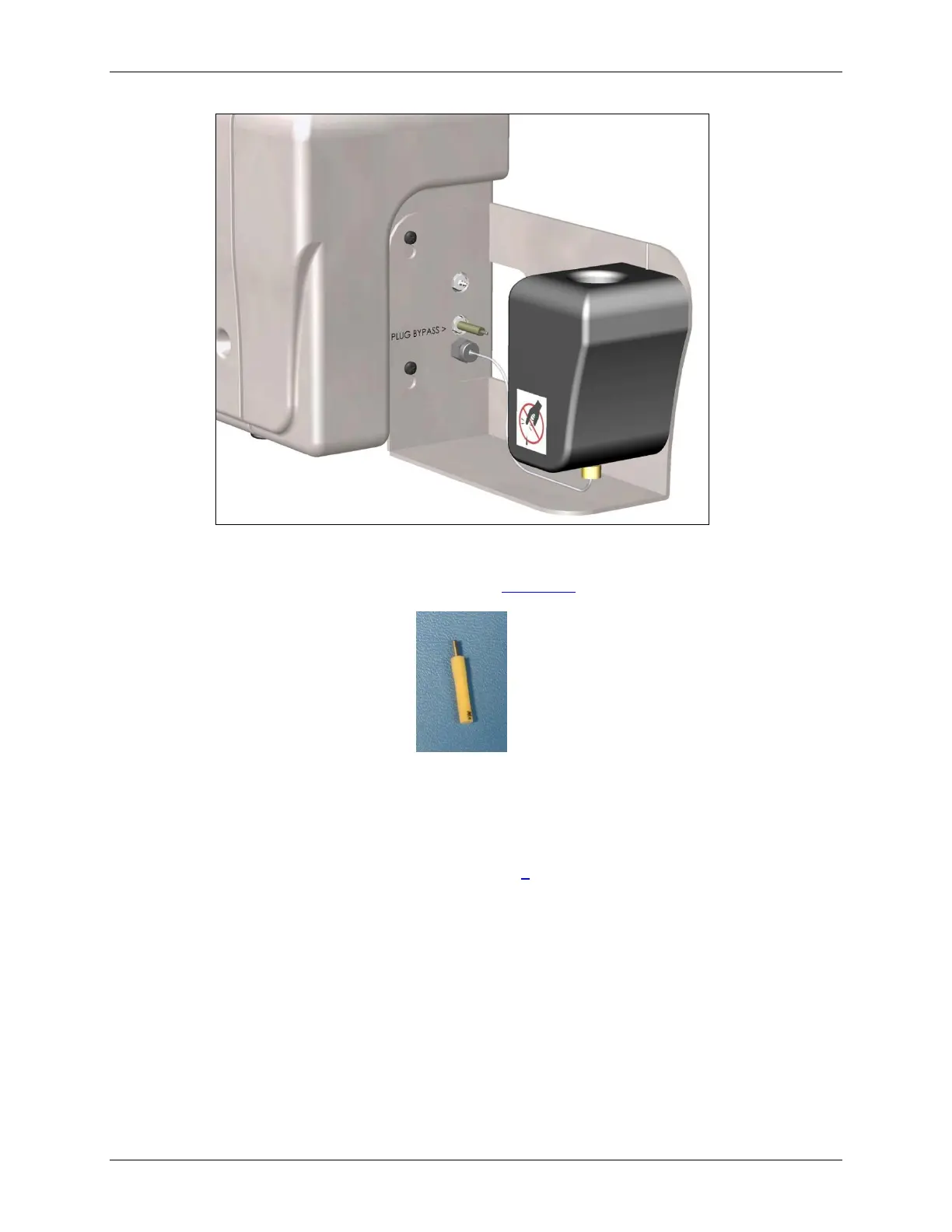

Figure 31: Connecting the Vial Sampling Kit (waste tubing and container not shown)
7. Connect the bypass plug onto the Bypass port (see Figure 32: The Bypass Plug).
Figure 32: The Bypass Plug
8. Connect the sample inlet tubing from the vial sampling kit to the Sensor’s Inlet port. Tighten the
fitting until it is one-quarter turn past finger-tight.
9. (Optional) If you disconnected the waste tubing in Step 5, connect the short waste tubing to the
Waste port and place the other end of the tubing in the waste container on the vial sampling kit.
10. If needed, remove the vial port cap from the top of the vial port.
