Summa SummaCut D120 - Mounting Horizontal Panel; Mounting the 4 Casters; Mounting the Cutter on the Stand; Installing the Basket

SummaCut cutter User’s Manual
Setup 1-3
3. Mount the horizontal panel. Make sure that the hollow side is orientated to the
same side as the long ends of the feet (this would then be the rear).
FIG 1-5

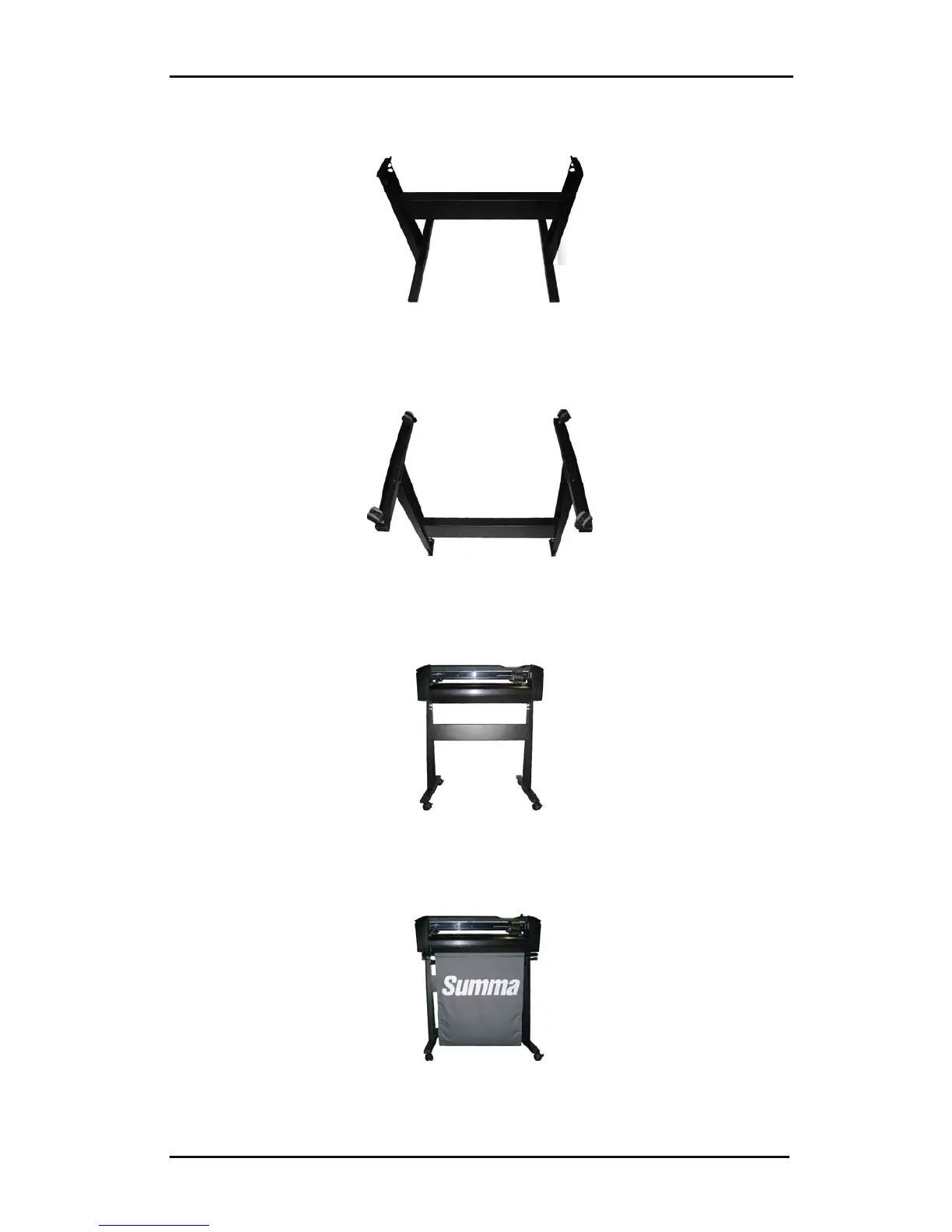

1-5 MOUNTING HORIZONTAL PANEL
4. Turn the stand upside down and mount the 4 casters (put the nut first in the
casters, then use the 12mm wrench.
FIG 1-6
1-6 MOUNTING THE 4 CASTERS
5. Turn the stand the right way up again and put the machine on the stand and
secure with 4 screws.
FIG 1-7
1-7 MOUNTING THE CUTTER ON THE STAND
6. Mount the basket. Make sure the long tubes are used at the rear. Put a saddle clip
to keep tubes in their place.
FIG 1-8
1-8 INSTALLING THE BASKET
