SummaCut cutter User’s Manual
Setup 1-24
1.6.2 Pen installation
The SummaCut cutters can also be operated with a plotter-type pen. After replacing
the knife with a pen, the cutter can be used as a plotter to draw draft plots of new or
existing designs on paper.
1. Loosen the head clamp screw, then remove the tool from the clamp.
2. Install the pen in the clamp and tighten the clamp screw.
3. The change of tool can either be input on the control panel or with Summa Cutter
Control (PC only), or with the cutting software.
Selecting pen operation disables the knife offset correction, and changes the pressure
to “pen pressure.”

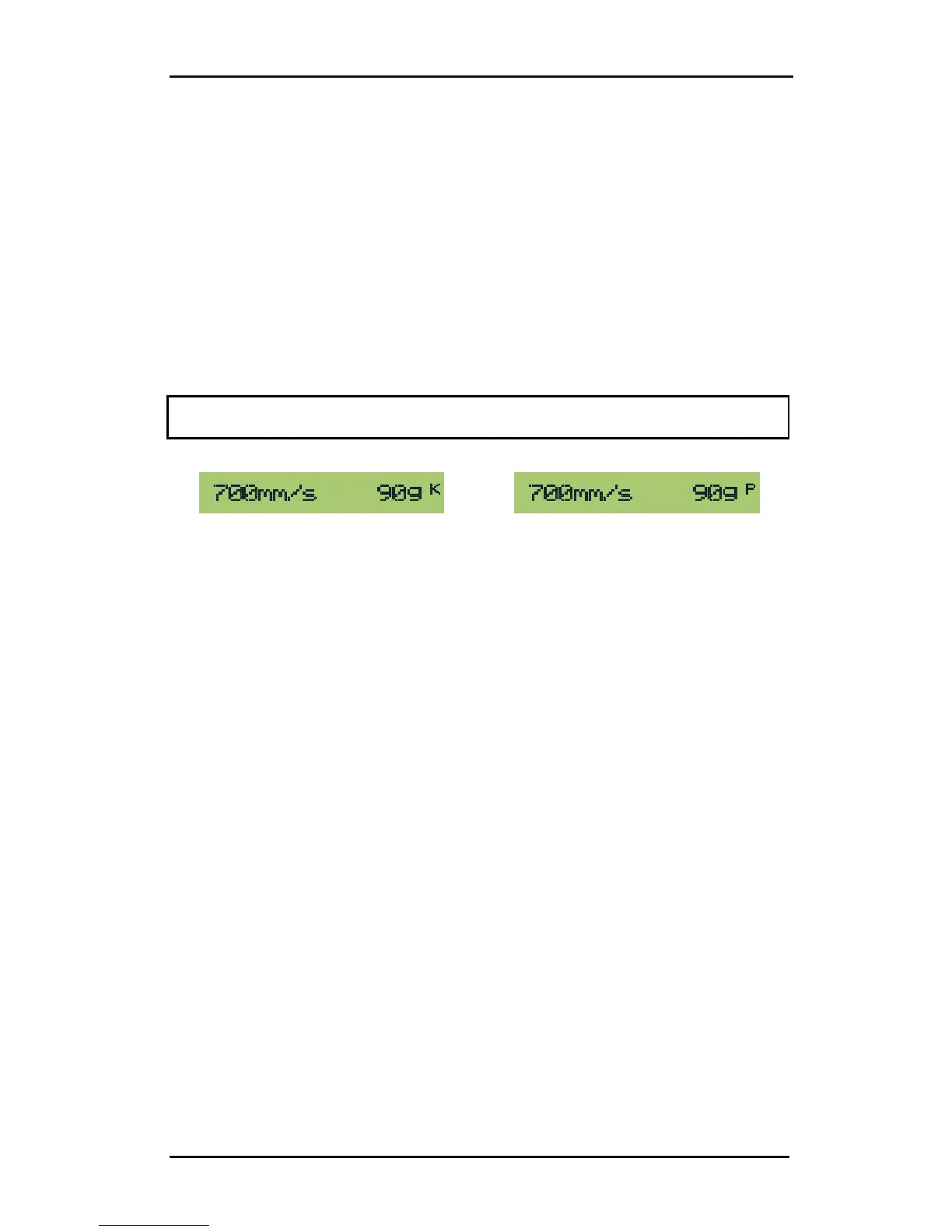

NOTE: The information on the LCD shows the tool currently selected by the cutter.
Make sure the cutter’s tool setting matches the actual tool in use.
FIG 1-27
1-27 KNIFE IS CHOOSEN TOOL
FIG 1-28
1-28 PEN IS CHOOSEN TOOL
