SummaCut cutter User’s Manual
Setup 1-5
1.2 SummaCut Cutter Components
1.2.1 The Cutter as viewed from the front

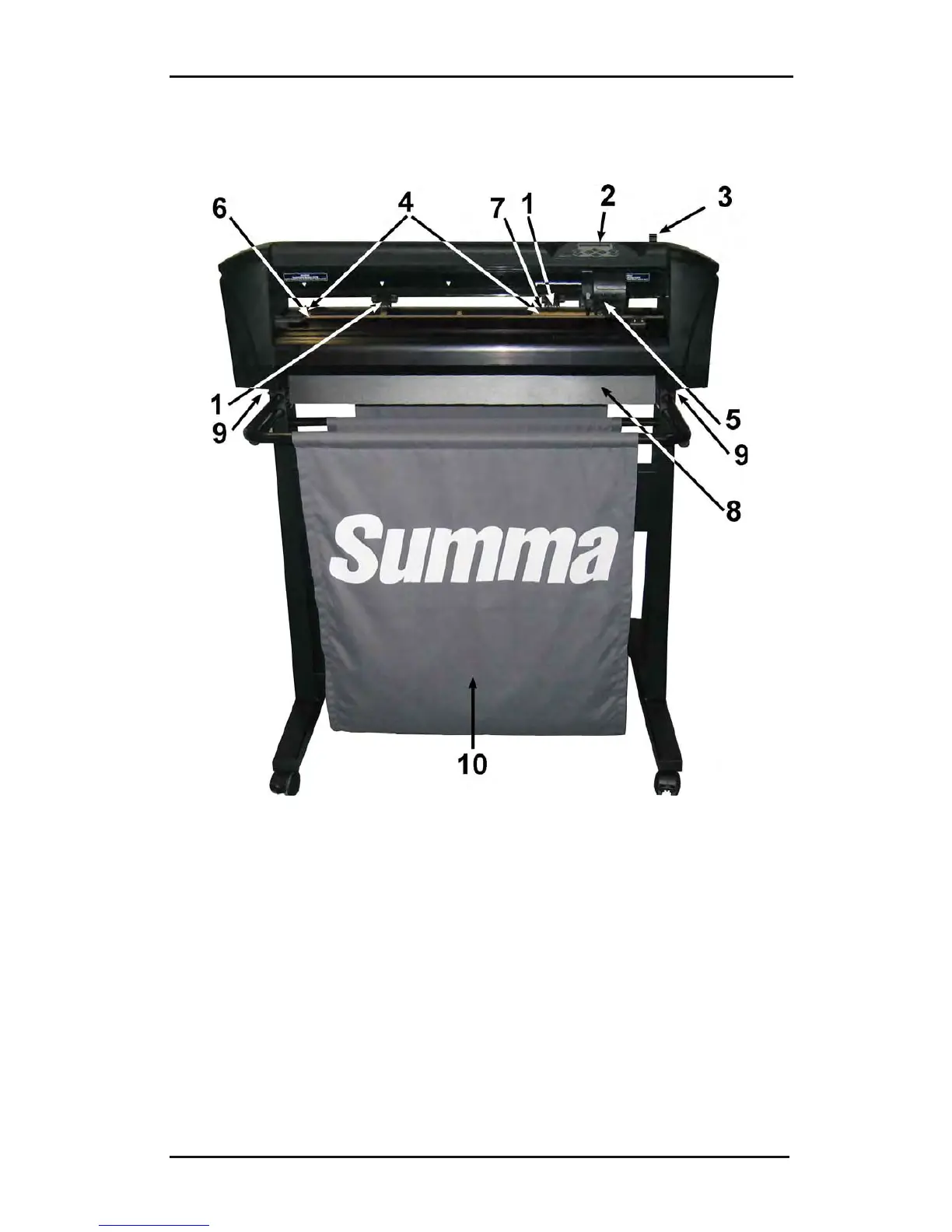

FIG 1-10
1-10 SUMMACUT CUTTER, FRONT VIEW
1. Pinch rollers: The pinch rollers clamp the media to the drive system to ensure
accurate tracking. The D120 has one and the D140 and D160 have two extra
pinch rollers to ensure that wide media stays flat in the middle. The extra rollers in
the middle can be enabled or disabled.
2. Keypad: All cutter activity can be initiated from keypad. The LCD displays
information about the cutter’s current status and/or actions that need to be taken.
3. Pinch roller lever: This lever is used to raise and lower the pinch rollers for media
loading.
4. Media drive sleeves: The media drive sleeves move the media only when the
pinch rollers are in the “down” position. The Larger the model, the more small
sleeves.
