Summa SummaCut D120 - The Cutter as Viewed from the Back; Summacut Cutter, Rear View

SummaCut cutter User’s Manual
Setup 1-7

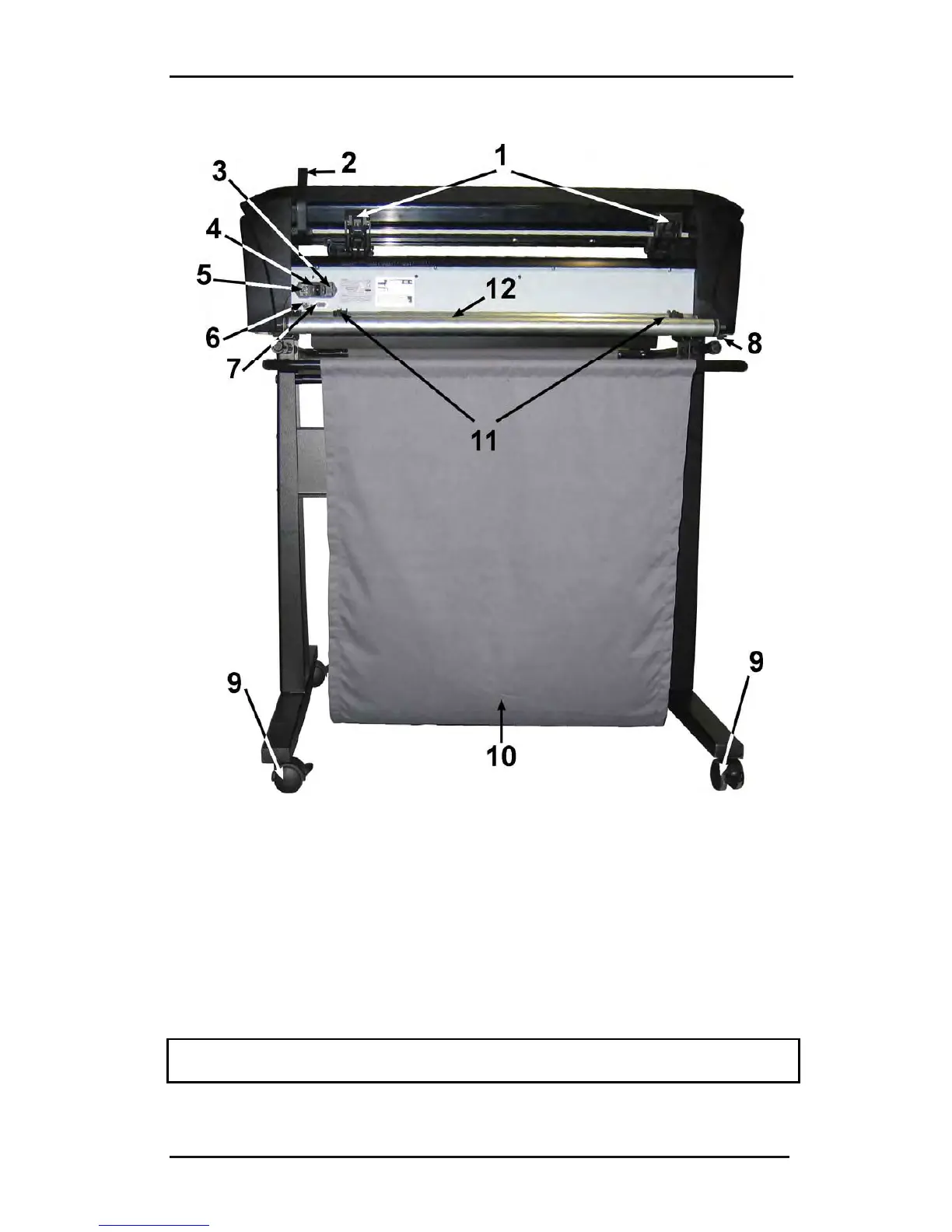

1.2.2 The Cutter as viewed from the back
FIG 1-11
1-11 SUMMACUT CUTTER, REAR VIEW
1. Pinch rollers: The pinch rollers clamp the media to the drive system to ensure
accurate tracking. The D120 has one and the D140 and D160 have two extra
pinch rollers to ensure that wide media stays flat in the middle. The extra rollers in
the middle can be enabled or disabled.
2. Pinch roller lever: This lever is used to raise and lower the pinch rollers for media
loading.
3. The fuse box: The fuse is located at the right side of the power entry module.
Check the specification section to see which fuse is used in the SummaCut cutter.
CAUTION: For continued protection against risk of fire, replace only with the same type
and rating of fuse.
