Chapter 1 Preparing to Service the System 19
What to Do

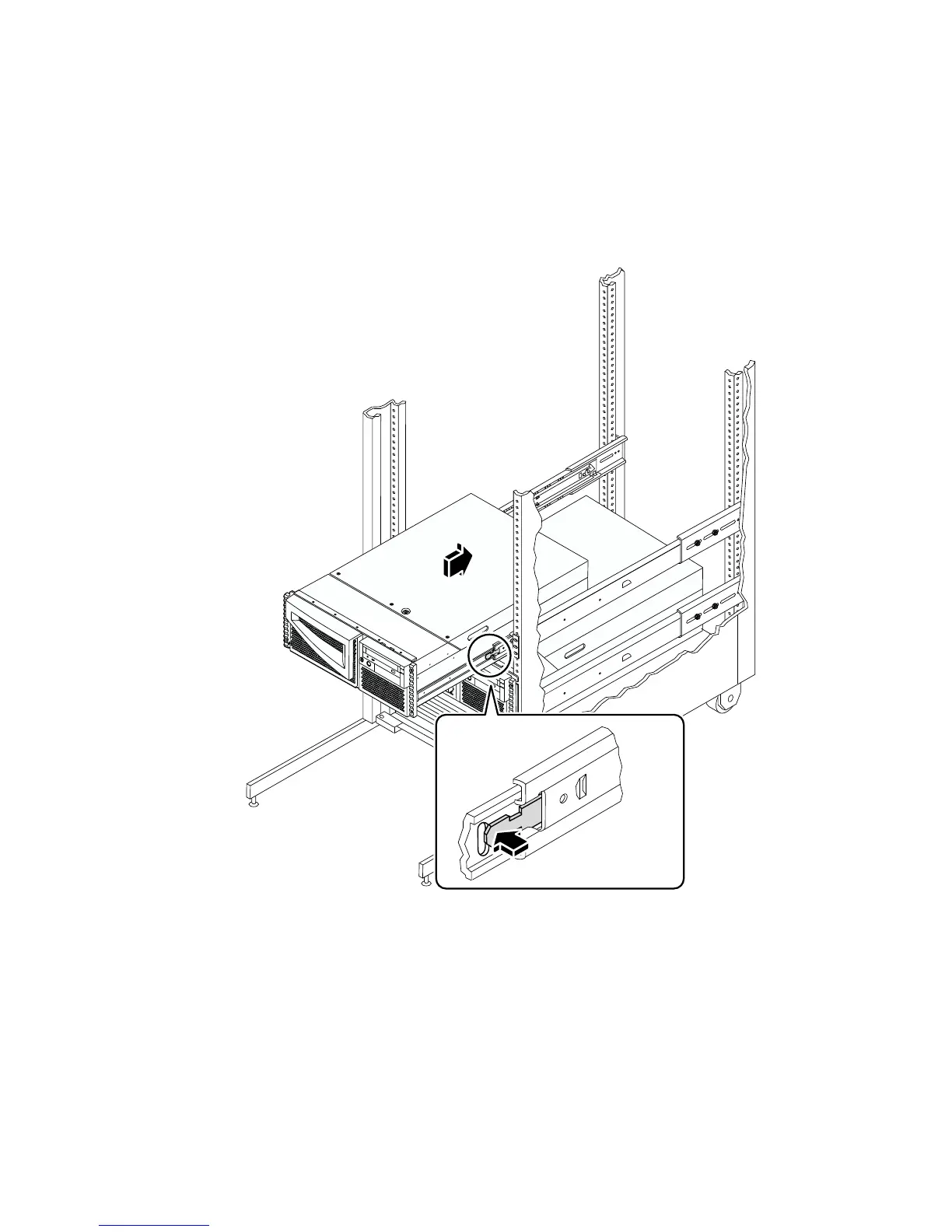

1. Release the two flat spring catches that lock the system into its current position.
Press in on both spring catches to free the system glides. One flat spring catch is
attached to each inner glide on the system chassis, as shown in the following figure.
2. Slide the system chassis evenly into the rack enclosure until the system comes to
a complete stop.
