Chapter 2 Servicing the Main Logic Board and Components 63
3. Insert the PCI card into the appropriate slot on the main logic board.
There are four PCI slots on the main logic board.
a. Insert the faceplate end of the card into the appropriate opening in the back
panel.
If you are installing a PCI long card, guide the opposite end of the PCI card into
the card slot on the fan tray assembly.

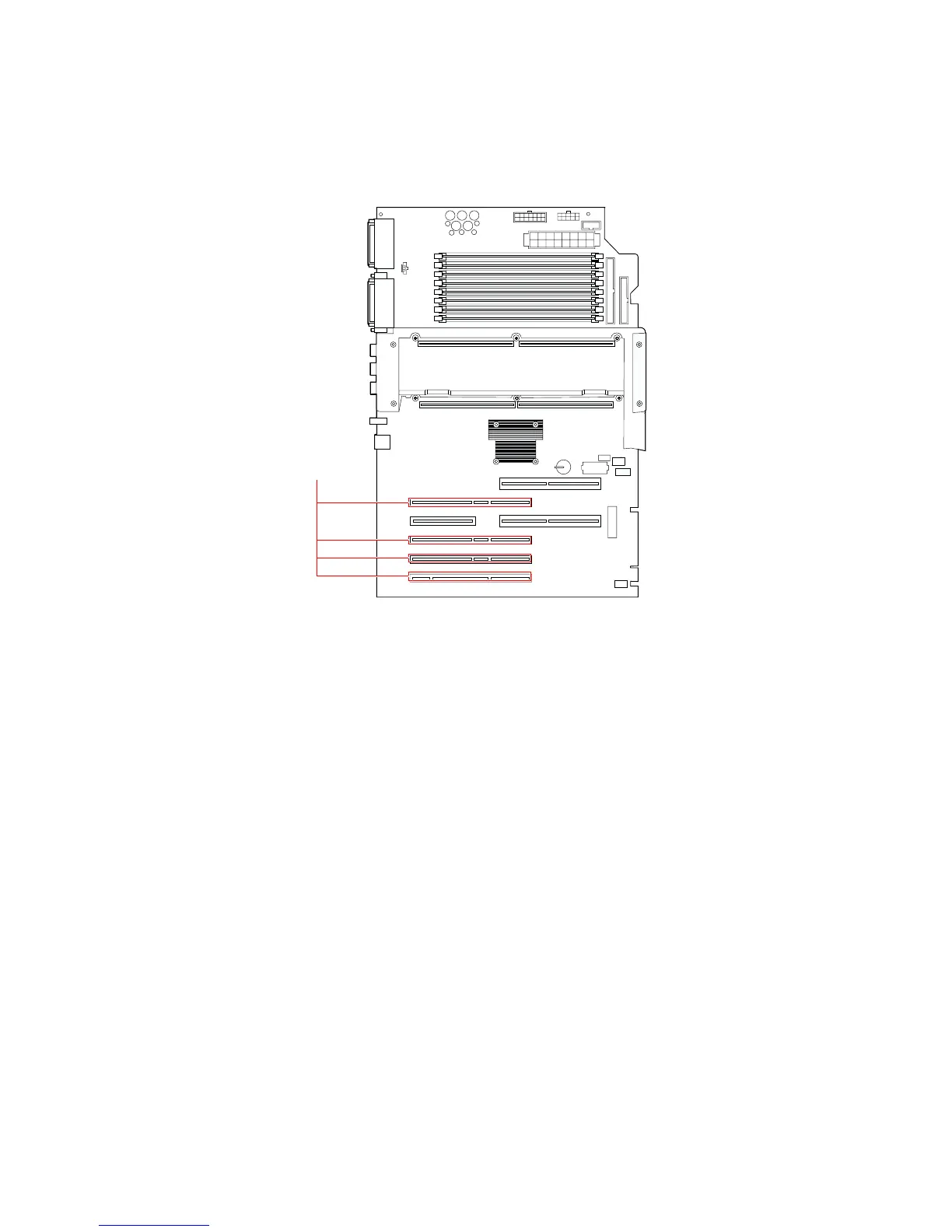

PCI slots
System front
