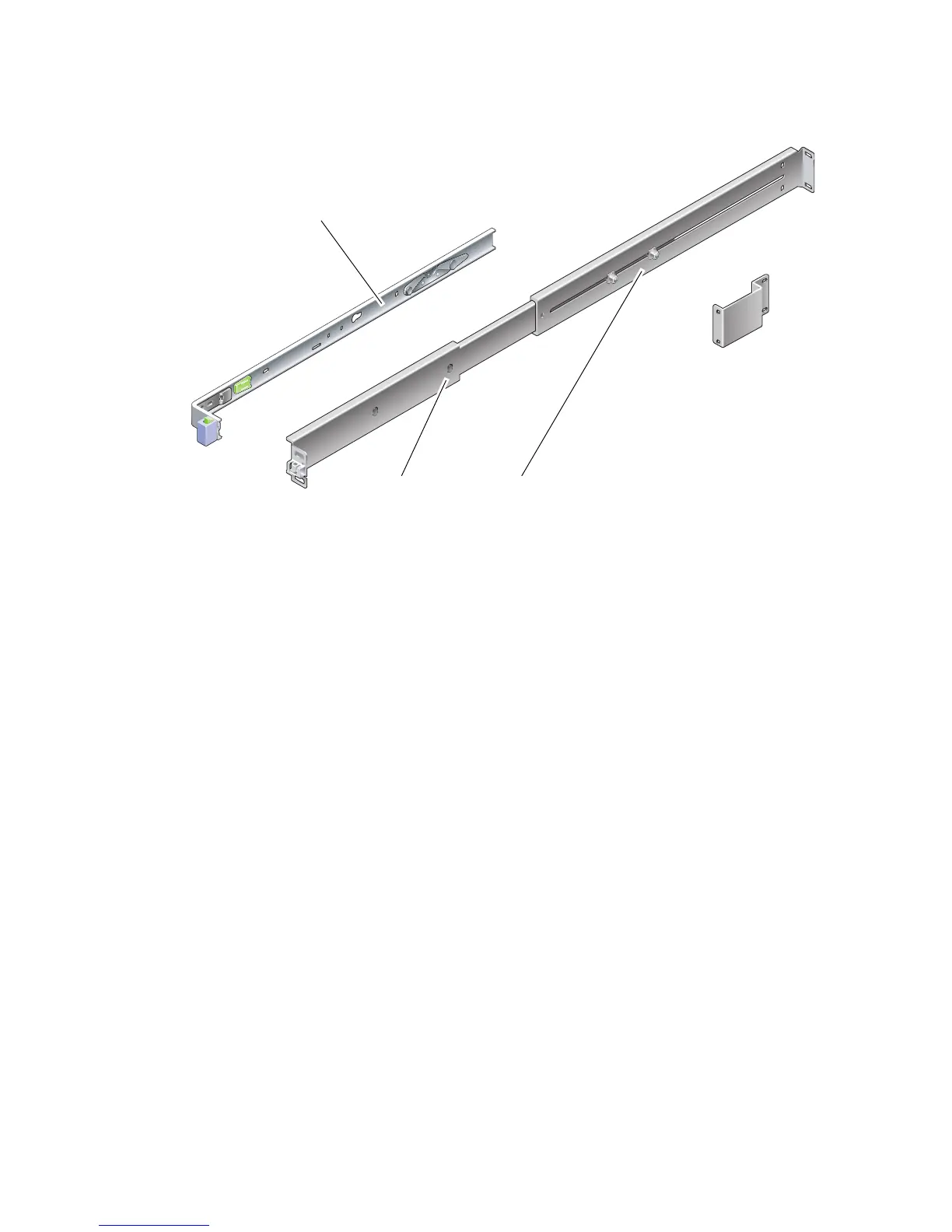

FIGURE 1-2 Features of the Slide Rail Assembly
■ The front and rear sections form the slide rail. The front and rear sections expand
to fit rack depths from 24 in (610 mm) to 29.0 in (737 mm).
■ Extension brackets are included in the mounting rail kit. The extension brackets
add 2.9 in (73 mm) to the length of each slide rail.
■ The mounting bracket slides 13 in. (330 mm) out of the slide rail, then locks in
place. If you unlock the mounting bracket, it slides an additional 4 in. (100 mm)
before separating from the slide rail. The mounting brackets mount directly to the
sides of the Sun Fire T1000 chassis.
■ There are two locks on each Sun Fire T1000 mounting bracket (FIGURE 1-3). The
mounting bracket lock allows the mounting bracket to slide forward. The
mounting bracket release allows you to remove the mounting bracket from the
slide rail. You also use the release when pushing the mounting bracket into the
slide rail.
Extension bracket
Front section
Mounting bracket
(shown removed)
Rear section
