10 Sun Fire V890 Server Rackmounting Guide • May 2004

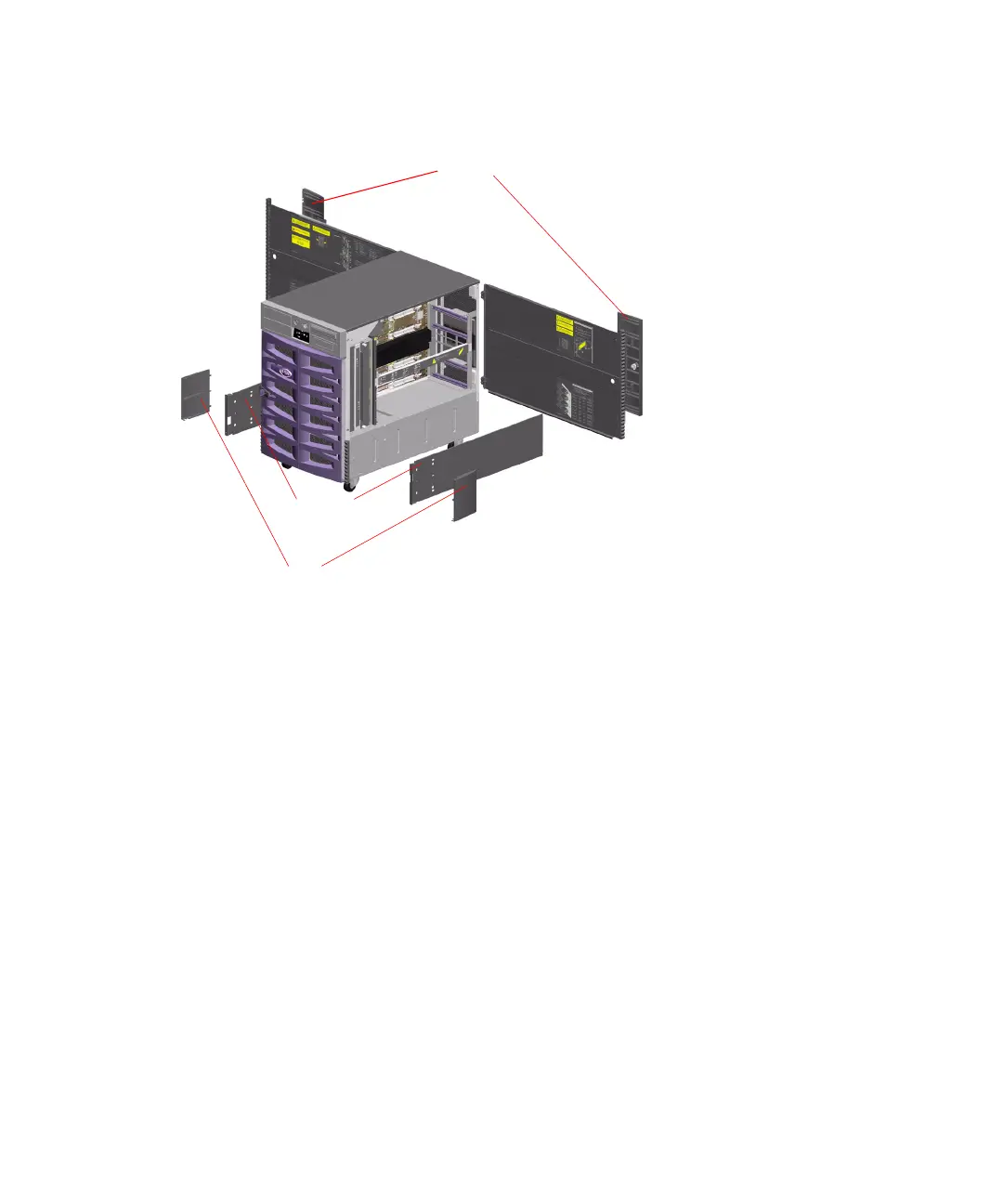

The following sections provide detailed information about removing each part.

Remove the Handle From Each Side Door

1. Open one of the server’s side doors.

Use the key provided with the server to unlock the door.

Fenders

Side door

handles

Lower side

panels
