Chapter 3 Installing the Server Into the Sun Rack 900 Cabinet 45
Install the Lifting Handles
1. Locate the four lifting handles provided with the rackmounting kit.
2. Install two lifting handles on one side of the server using two M4 screws to attach
each handle to the lower side of the server.
a. With the THIS SIDE UP label facing upward, insert the screwdriver through
one of the access holes on the outside of the handle.
Using the access hole makes it easier to reach the screw hole on the inside of the
handle.
b. Position the screw on the inside of the handle in the hole that is opposite the
access hole.
c. Attach the handle to the server using the appropriate screw hole just below the
server side door. See the following figure.
d. Finish installing the handle by repeating the procedure using the second access
hole on the outside of the handle.
e. Repeat Steps a through d for the second handle.
3. Repeat Step 2 to install two handles on the other side of the server.

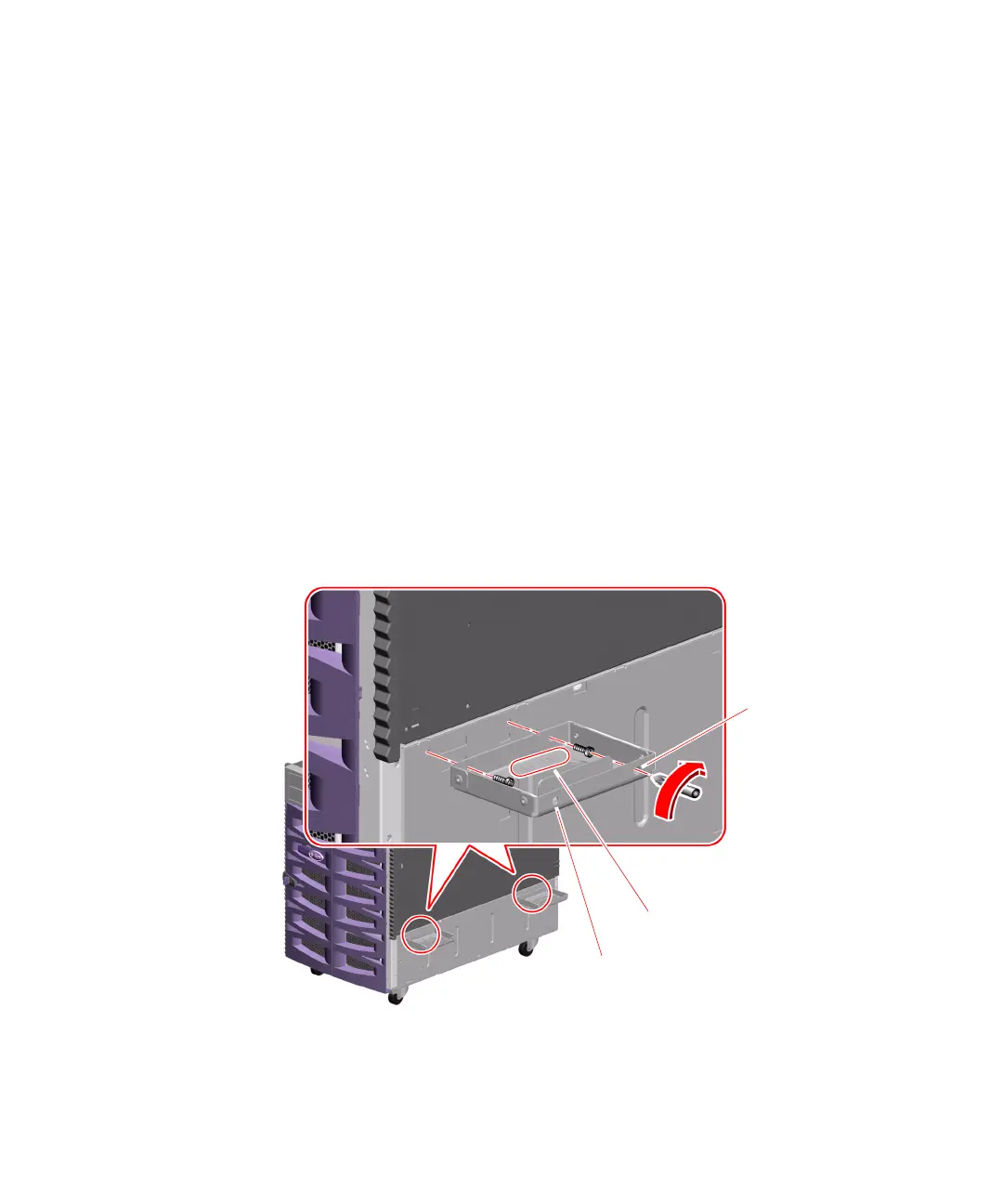

THIS SIDE UP label
Access hole
Access hole
To Next Page
