Chapter 3 Installing the Server Into the Sun Rack 900 Cabinet 47
If necessary to adjust the rear brackets, perform the following steps:
1. Measure the length of each slide.
Measure the distance from the inside face of the front bracket to the inside face of
the rear bracket. If this measurement is longer or shorter than 27 inches (68.58 cm),
you must adjust the rear bracket on each slide to accommodate the depth of the
cabinet.
2. If required, adjust the rear bracket on each slide.

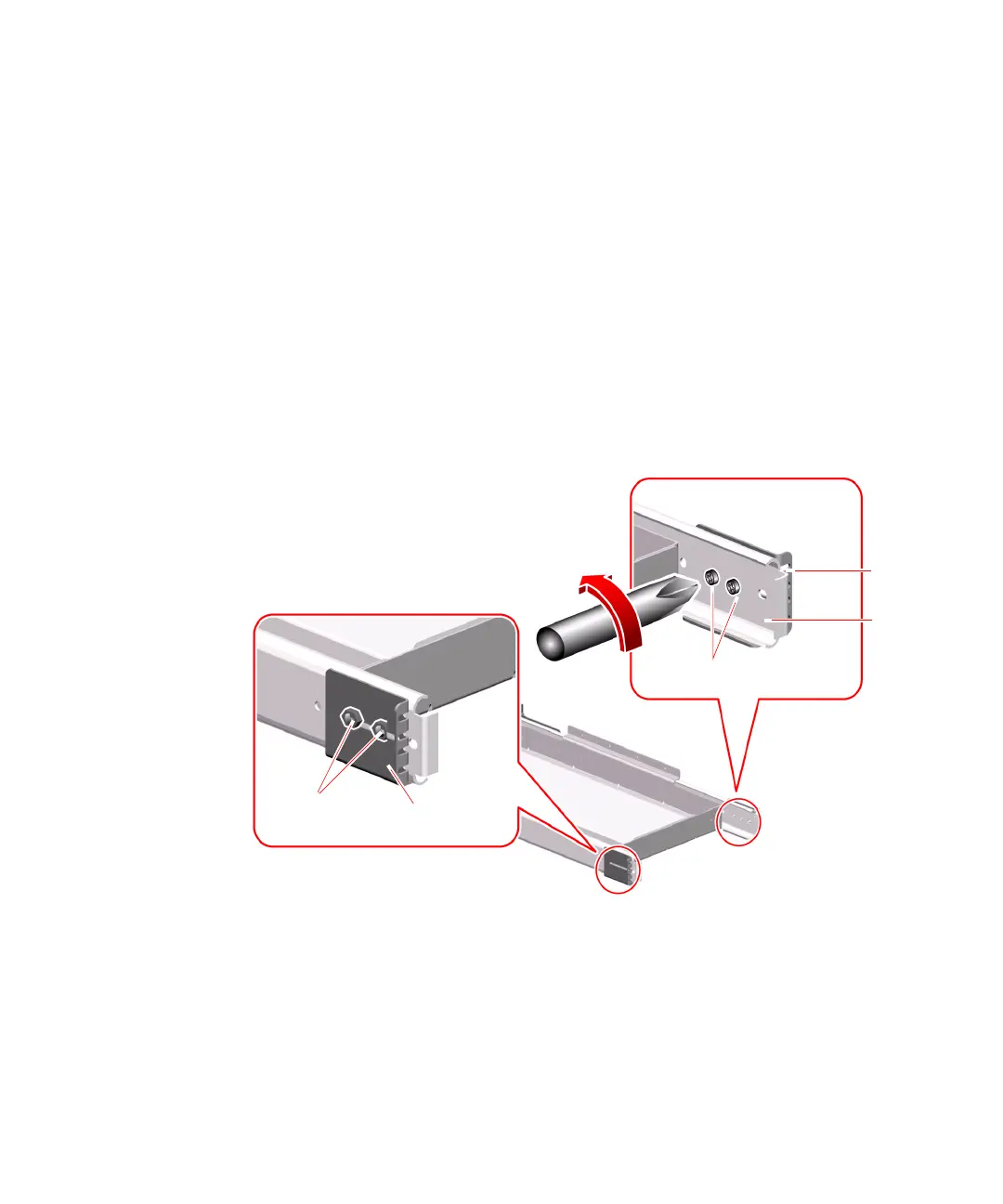

a. Extend the tray assembly until you can see the two 10-32 screws located on the
inside rear of each outer slide.
The screws on the inside of the outer slide (and the lock nuts on the outside of the
bracket) secure the rear bracket to the outer slide.
b. Loosen the two 10-32 screws and the lock nuts.
c. Slide each rear bracket forward or backward as required to accommodate the
depth of the cabinet.
Slide each rear bracket and measure the distance from the inside face of the front
bracket to the inside face of the rear bracket.
Continue to slide the rear bracket and measure the distance from the inside face
of the front bracket to the inside face of the rear bracket until the measurement
equals 27 inches (68.58 cm).
Lock nuts
Rear bracket
Rear
bracket
10-32 screws
Outer
slide
