Chapter 3 Installing the Server Into the Sun Rack 900 Cabinet 51

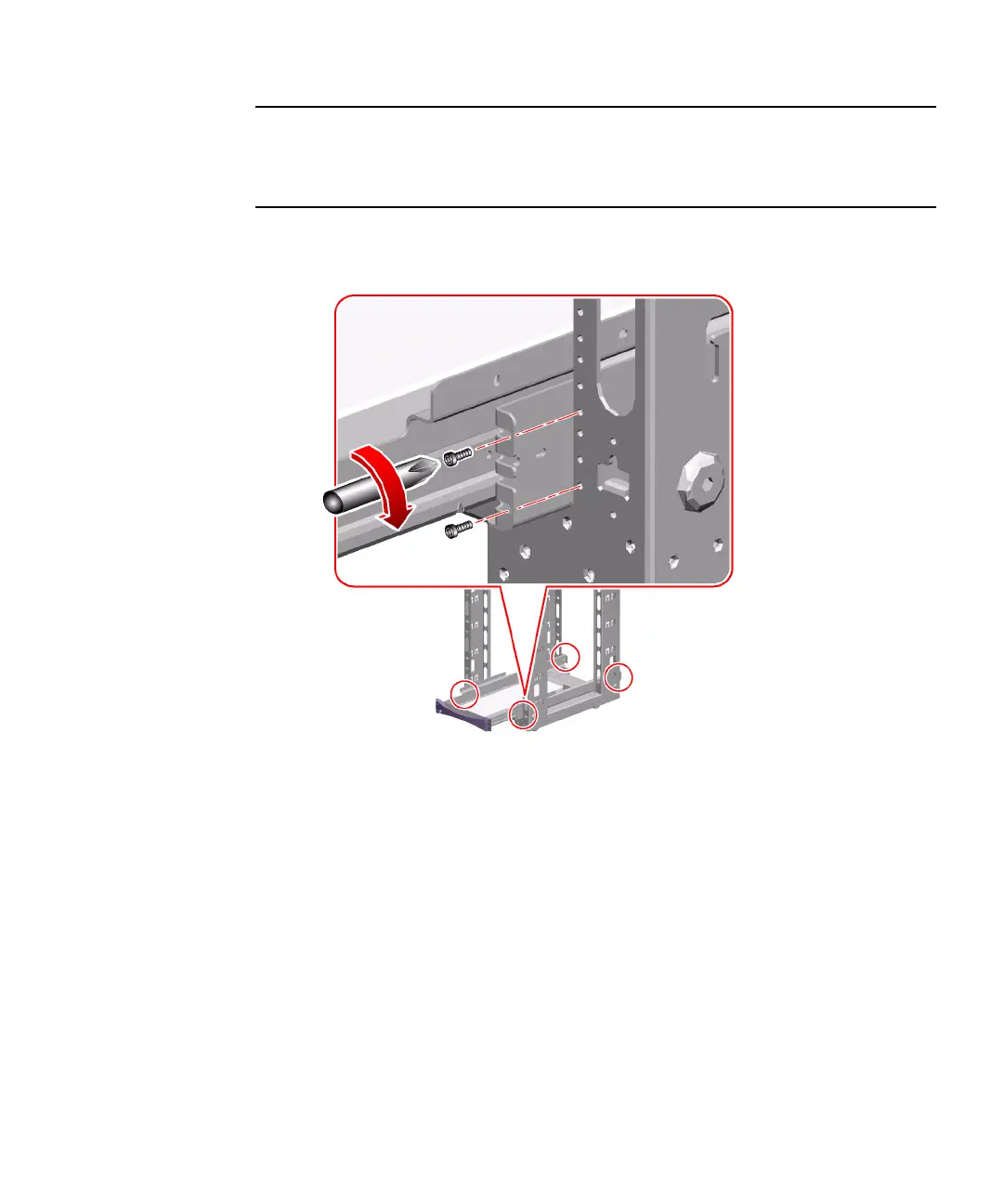

Note – If your Sun Rack 900 cabinet is equipped with the Sun PDS option and the
Sun Fire V890 server will be installed immediately above the two power sequencers
provided by the Sun PDS option, align the lower hole of each front bracket with the
first rail hole as shown in the following figure.
2. Attach the rear brackets to the rear rails of the cabinet using four M6 screws.
Align the lower hole of each rear bracket with the rail hole you marked in
“Determine the Vertical Position of the Server in the Cabinet” on page 48.
Secure the brackets using one M6 screw in each lower hole. Finger-tighten the
screws.
Align the upper hole of each rear bracket with the coinciding hole in the cabinet rail.
Secure the brackets to the rails using one M6 screw in each upper hole. Finger-
tighten the screws.
Do not tighten the screws completely until all the screws are in place and the tray
assembly is level.
