Parameters F0.13 and F0.14 define characteristics of S curve. It is totally divided
into three sections, shown as fig6-3.
Acc/Dec initial section is the process that slope of output freq. is increase form 0
gradually. The slope will fix in Acc/Dec ascending/decline section. And the slope will
decrease to 0 gradually in end section.
The parameter has decided the switch frequency of the inner frequency of inverter.
As to the different power of inverter, there are differences between the highest
carrier wave frequency and the lowest carrier wave frequency under permission.
Carrier wave frequency mainly influences audio-frequency noise and calorific effect
in running. If you need the running situation that you can heighten the carrier wave
frequency a little, while the load capacity of inverter would decrease a little, and the
interference rates of inverter would increase little.
When environmental temperature is too high and motor’s load is too heavy, carrier
frequency should be decreased properly to improve the heat thermal performance.
It used for setting correlative characteristics about carrier wave.
It is used for preventing error modify about data.
1：Forbid to modify all parameter, except F0.2 and F0.18
2：Forbid to modify all parameter, except F0.18
F0.13 Acc/Dec initial section proportion of S curve Setting range：10.0 ~ 50.0(%)
F0.14 Acc/Dec ascending/decline section proportion of S curve Setting range：10.0 ~ 80.0(%)
S curve
Beeline
T
（
Sec/min
）
Output freq.
（
Hz
）
[F0.13][F0.14]

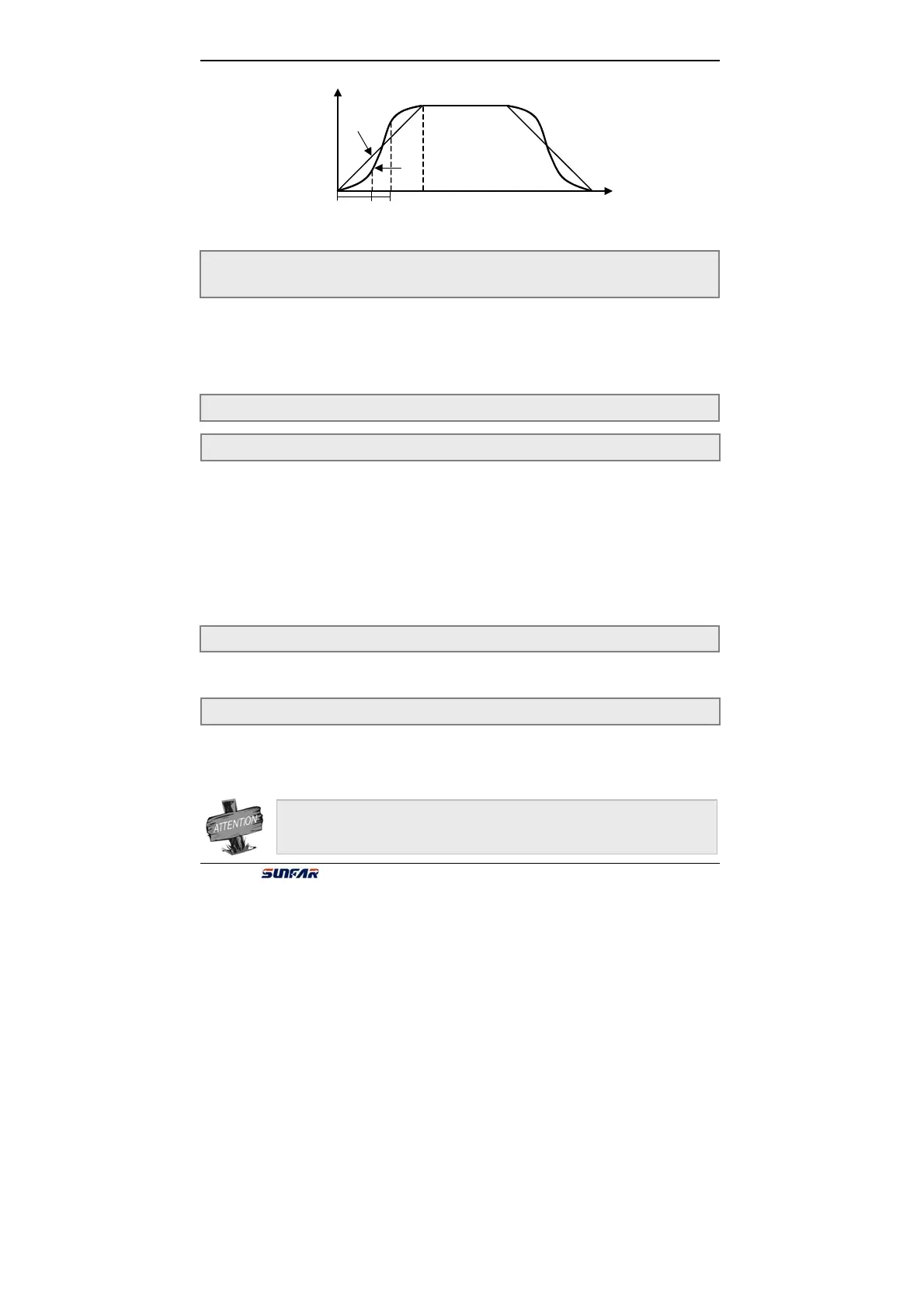

Fig.6-3 Acc
Dec cur
e
F0.15 Reserved
F0.16 Carrier wave frequency Setting range： 1.5 ~ 12.0 KHz
F0.17 Carrier wave characteristics Setting range：0000 ~ 1110
F0.18 Parameter write-protection Setting range：1，2
In running, some parameters cannot be modified. At this time , if try to modify
these parameters, the inverter will display “— —”, please turn off the inverter
before modif
those
aramete
s.
