C300 series of non-sensor current vector-control inverter manual
6.10 C
ommunication function parameter units
The first part of LED(form right to left)： It is used for setting characteristics of
relating to communication.
0： Reserved 1：1200bps 2: 2400bps
3: 4800bps 4: 9600bps 5: 19200bps
To make sure both sides have the same baud rate, when client use serials
communication.
The second part of LED： To set data format of serials communication.
0：Close 1： Even 2：Odd
To make sure both sides have the same data format, when client use serials
communication.
The third and fourth part of LED: Reserved.
It defines waiting time, which is the time from local receives correctly code to send
response data frames.
The first part of LED(form right to left)：
0： The inverter is slave 1： The inverter is master
The second part of LED： Act selection after communication is lost
0： Stop 1：Keep
The third part of LED:
Reserved.

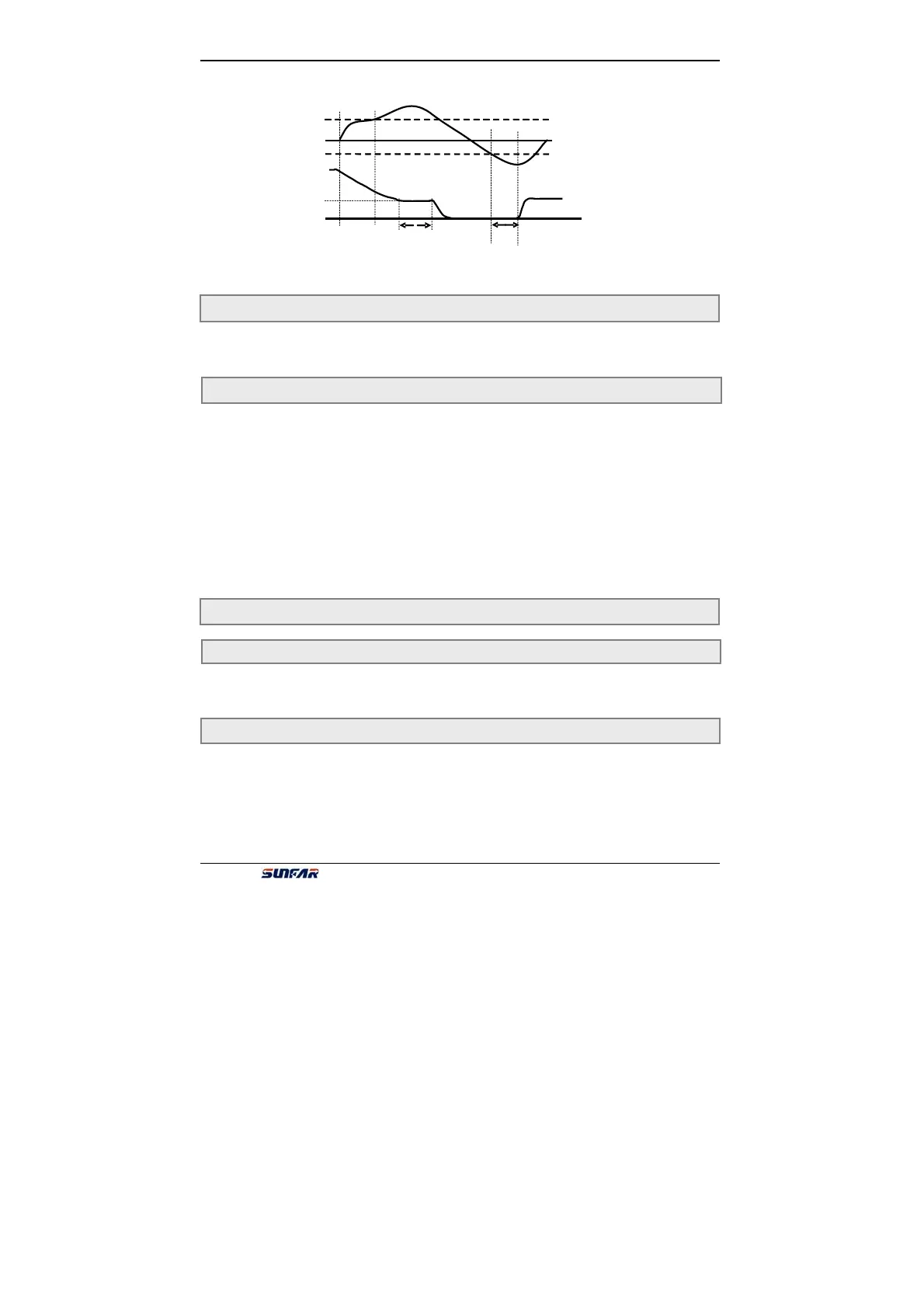

Fi
g
.6-33 PID contro sleepin
g
and awakenin
g
function
F8.14 Reserved
F9.0 Communication setting Setting range：0000 ~ 0025
F9.1 Local address Setting range：0 ~ 30
F9.2 Response time of machine itself Setting range：0 ~ 1000 ms
F9.3 Setting of communication Auxiliary function Setting range：0000 ~ 2011
[F8.11 ]
The lower limit
freq
[F0.7]
PID feedback
Sleeping thres hold
Output freq
PID Setting
[F8.13 ]
Awakening threshold
5 minute
5 minute
sleep
awake
