Sunfar C300 Series User Manual

SUNFAR C300 7
C300 series of non-sensor current vector-control inverter manual

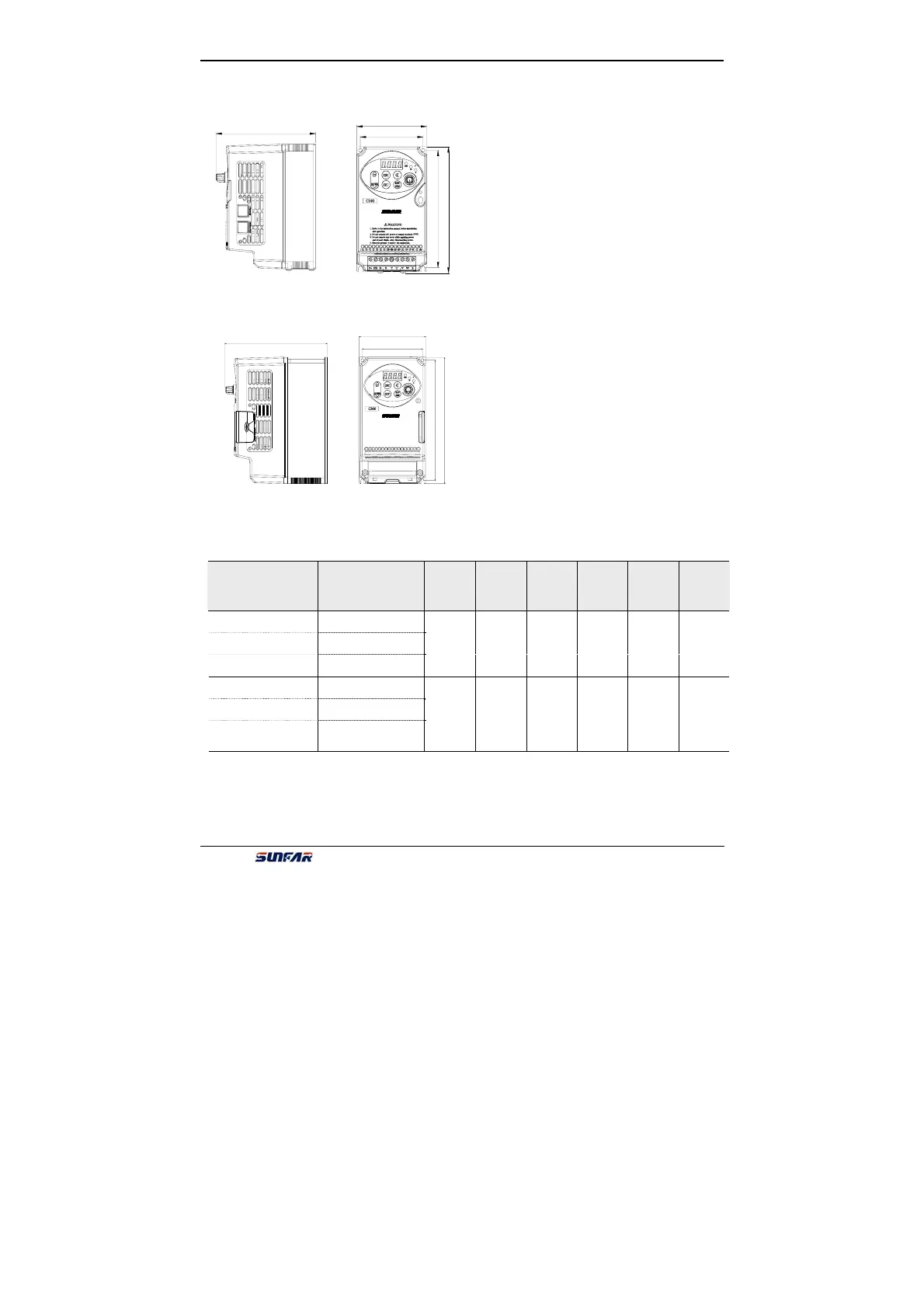

2.2 Installation Dimension of Inverter
The following table shows the Installation Dimension of C300.
Inverter model
（3-phase 400V）
Inverter model
（1-phase 220V）
W1
(mm)
W
(mm)
H1
(mm)
H
(mm)
D
(mm)
Screw
spec
-- C300-2S0002
C300-4T0004 C300-2S0004
C300-4T0007 C300-2S0007
88 98 165 178 140 M4
C300-4T0015 C300-2S0015
C300-4T0022 C300-2S0022
C300-4T0037 --
95 105 190 200 160 M4
Fig2-2-A Dimension of model Ⅰ
H
H1
D
W
W1
1. Refer to th e instruction manual b efore installati on
and operation.
2. DO not connect AC power to output terminals
UVW.
3. Isolate from supply and wait 10 minutes before
removing this co ver.
4. Secure ly ground( earth) th e equipmen t.
CAUTION
D
W1
W
H1
H
Fig2-2-B Dimension of modelⅡ
It is fit for：
C300-2S0002～C300-2S0007
C300-4T0004～C300-4T0007
Shown as Fig. 2-2-A。
It is fit for：
C300-2S0015～C300-2S0022
C300-4T0015～C300-4T0037
Shown as Fig. 2-2-B。
