SUNFAR C300 87
C300 series of non-sensor current vector-control inverter manual
9. USAGE EXAMPLE
9.1 Panel on-off control, Panel potentiometer setting frequency
and V/F control methods
9.1.1 Initial settings
1. When F0.0 is 0, V/F method is valid.
2. When F0.4 is 00#0, panel control is valid.
3. When F0.1 is 3, panel potentiometer is valid.
9.1.2 Basic wiring
9.1.3 Operation Notes:
Press key to start the inverter, and then rotate the button of panel
potentiometer in clockwise to increase setting frequency step by step. Contrarily,
rotate in anti-clockwise to decrease setting frequency step by step.
Press key to stop the inverter.
M
Motor
U
W
V
R
S
T
AV O
GND
Voltmeter (0~10V)
E
×
×
×
3-phase Breaker
Power
Supply

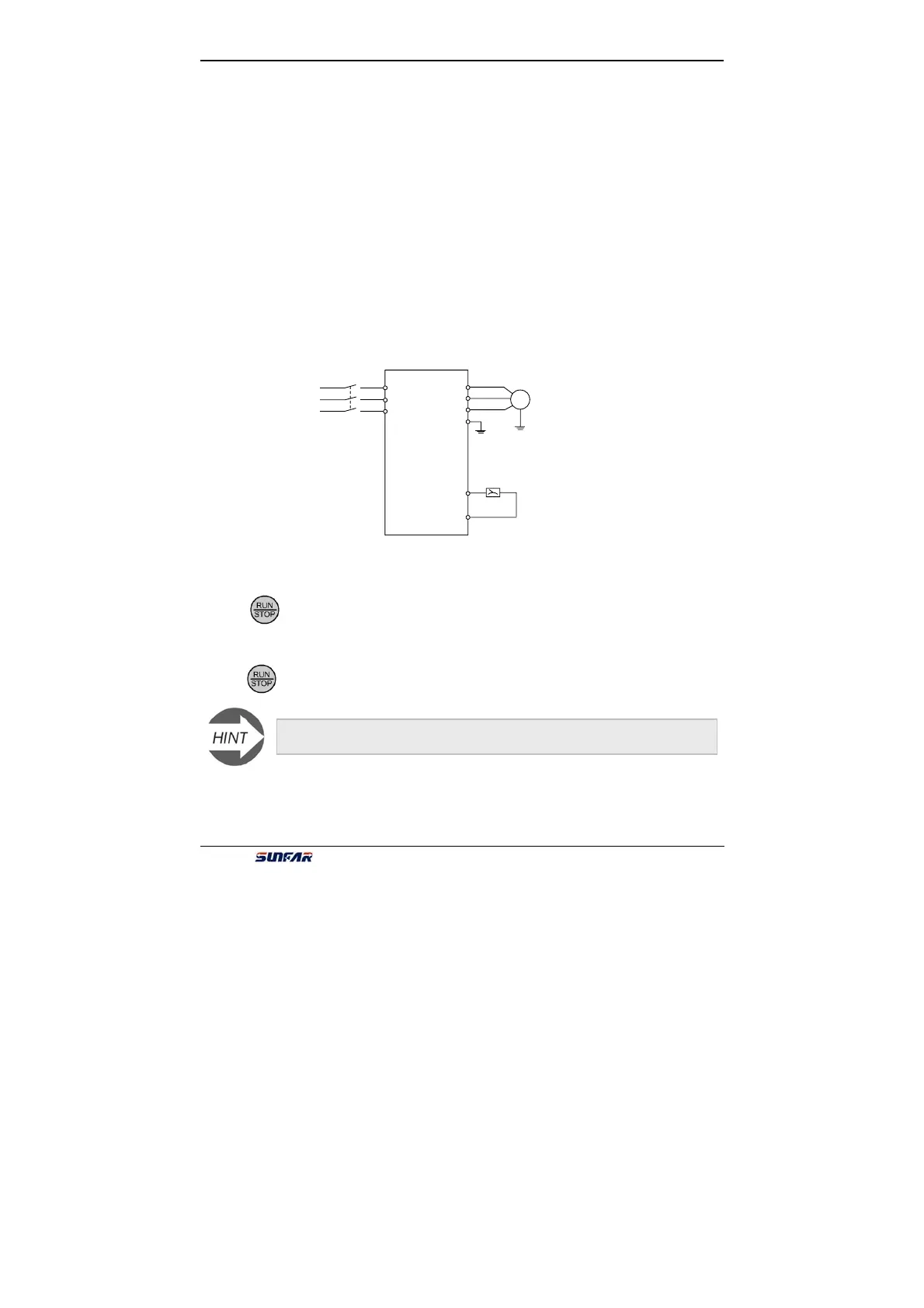

Fig9-1 Basic wiring
External control terminal FWD decides the running direction of motor.
