Indicator
Indicator
(print)
LED color LED status Description
Running
indicator (RUN)
Red/green
Off
No external power supply
connected
Slow flash
(Green)
Normal running
Slow flash
(Red)
Device alarm
Steady on
(Red)
Logger1000 running fault
4G indicator
(4G)
Blue
Off
No data communication
Steady on
4G connected successfully
Slow flash
Data communication in process
WLAN indicator
(WLAN)
Blue
Off
No data communication
Steady on
WiFi connected successfully
Slow flash
Data communication in process
Note: * Only the Logger1000A is equipped with the 4G indicator.
 Slow flash means that the indicator flashes once every second.
 Slow flash of the communication indicator indicates data communication in process. If
there has been no data communication with iSolarCloud for 10s, the indicator will
keep steady on.

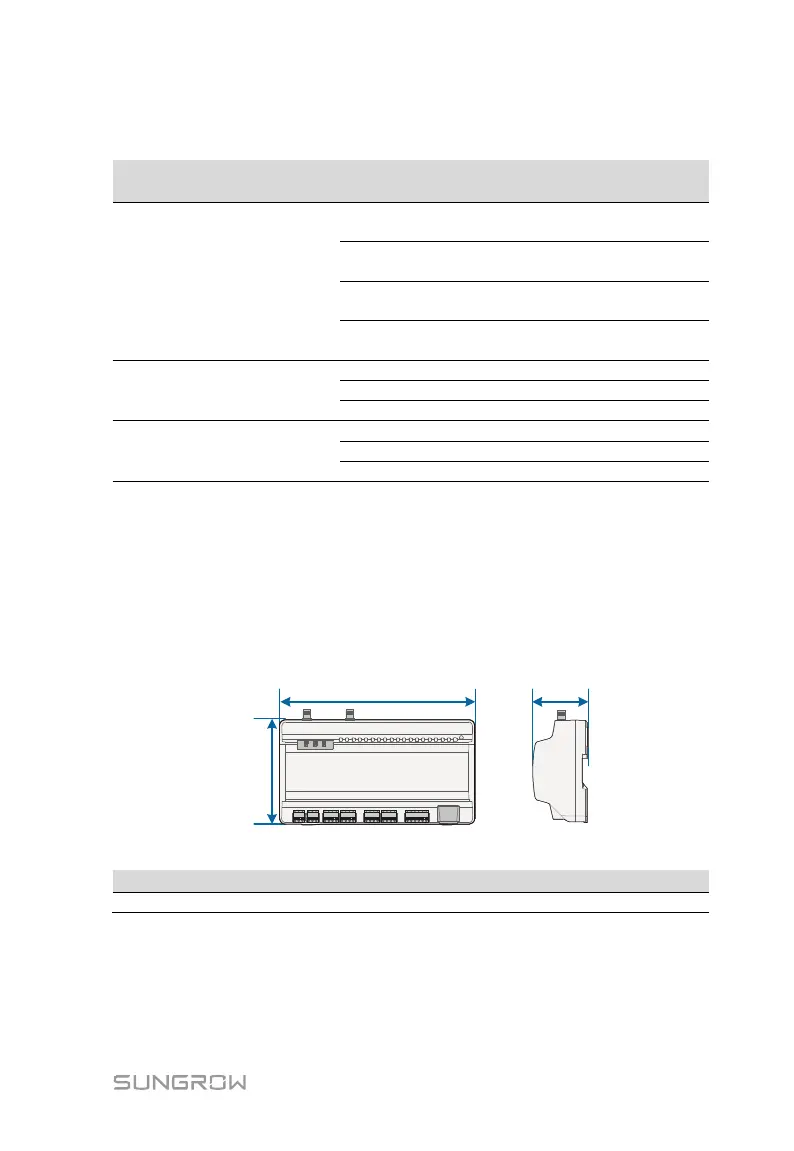

3.3 Dimensions
Width (W)
Height
(H)
Depth (D)
Fig. 3-2 Dimensions
Width (W)
Height (H)
Depth (D)
200mm
110mm
60mm
