Check and ensure that the Logger1000 is firmly installed.
5.5 Installing Antenna
The sucker antenna base should be placed on a metal surface outside the container
to avoid impact on signal reception.
Antenna entry should be reserved on the container, and the entry hole size is 20mm.

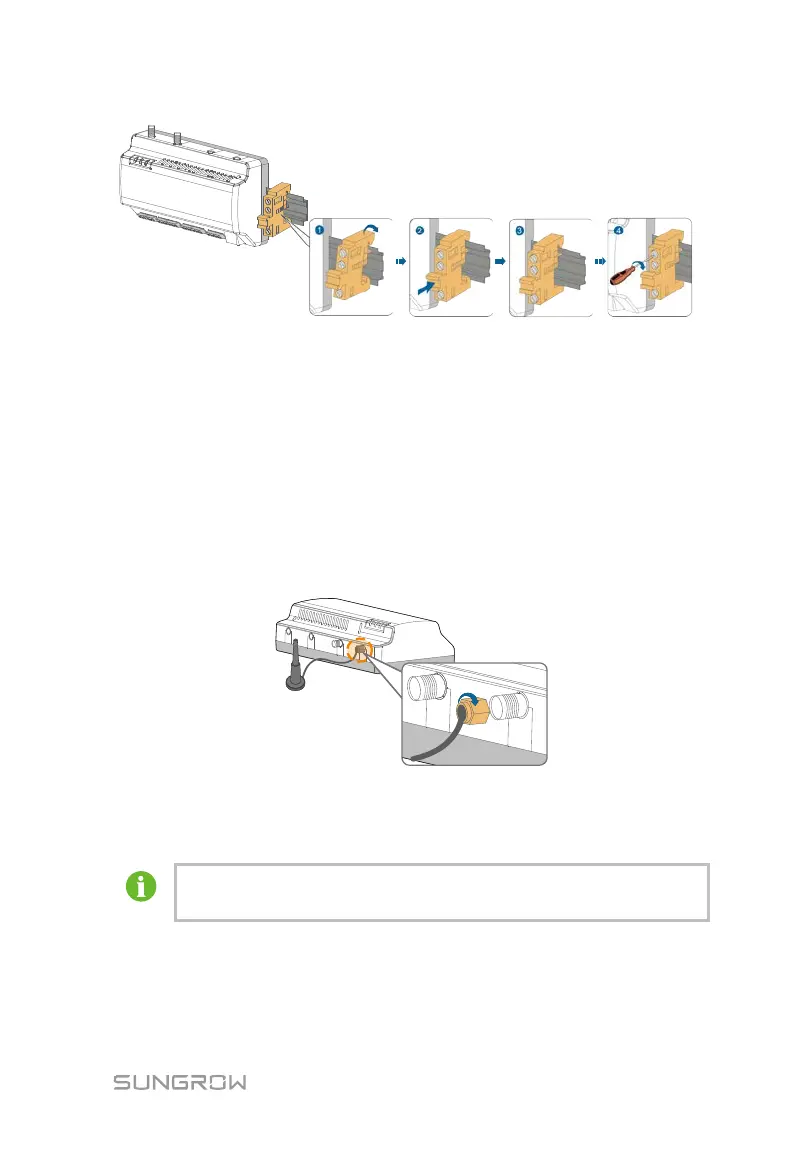

Secure the sucker antenna base onto the surface outside the container, lead one
end (with the nut) of the antenna through the drilled hole, and fix it onto the
corresponding terminal of the Logger1000 clockwise, as shown in the figure below.
5.6 Installing Power Box
Mount the power box onto the concrete wall or metal surface according
to onsite conditions.
Secure the power box via the buckles (as shown in the figure below) on the back of
it.
