table 2-1 Indicator status
Status
Description
Steady on
The system works normally (-
charge and discharge)
2S periodic slow blinking
(Breathing light)
The system is normal, no
charging and discharging.
Steady on
A fault occurs (auxiliary circuit
breaker does not trip)
Off
Auxiliary circuit breaker trips
Emergency Stop Button
In case of emergency, press this button to disconnect the electrical connection inside the
BESS and PCS.
2.2.2 Mechanical Parameters
Dimensions of BESS

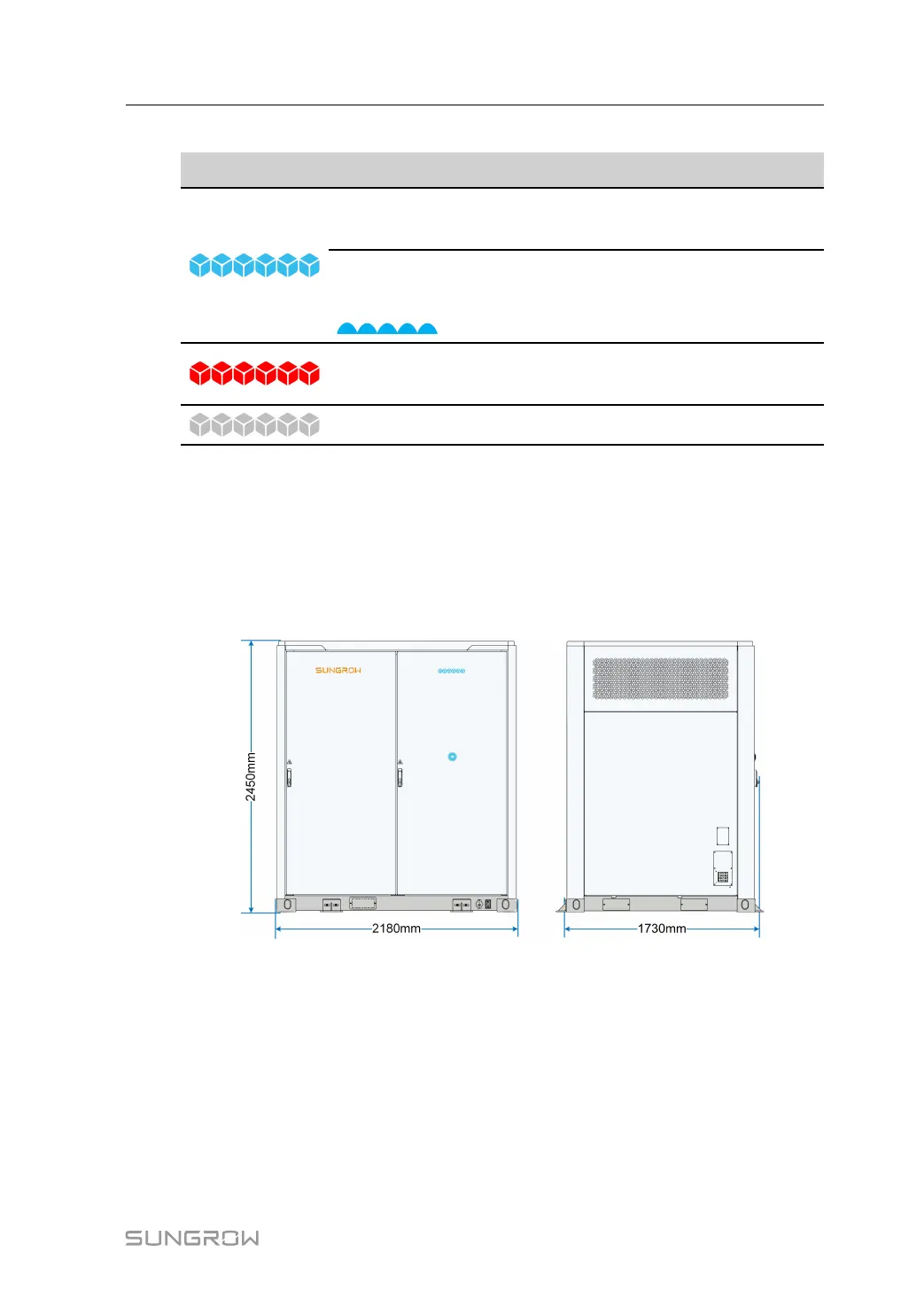

The external dimensions of BESS are shown in the figure.
figure 2-4 Dimensions of BESS
