37
Step Description
3
Insert the door key and turn it clockwise
4
Rotate the handle clockwise to the position shown in the figure to open the
front door.
5.3.3 Preparing Cables
The cables must meet the following requirements:
• The current carrying capacity of the cable meets requirements. Factors affecting the
current carrying capacity of a conductor include but are not limited to:
– Environmental conditions;
– Type of the insulation material of the conductor;
– Cabling method;
– Material and cross-sectional area of the cable.
• Select cables with a proper diameter according to the maximum load, and the cables
should be long enough.
• All DC input cables must be of the same specifications and materials.
• AC output cables of three phases must be of the same specifications and materials.
• Only flame retardant cables can be used.
• The cables used should comply with requirements of local laws and regulations.
• The cable color in figures in this manual is for reference only. Please select
cables according to local standards.

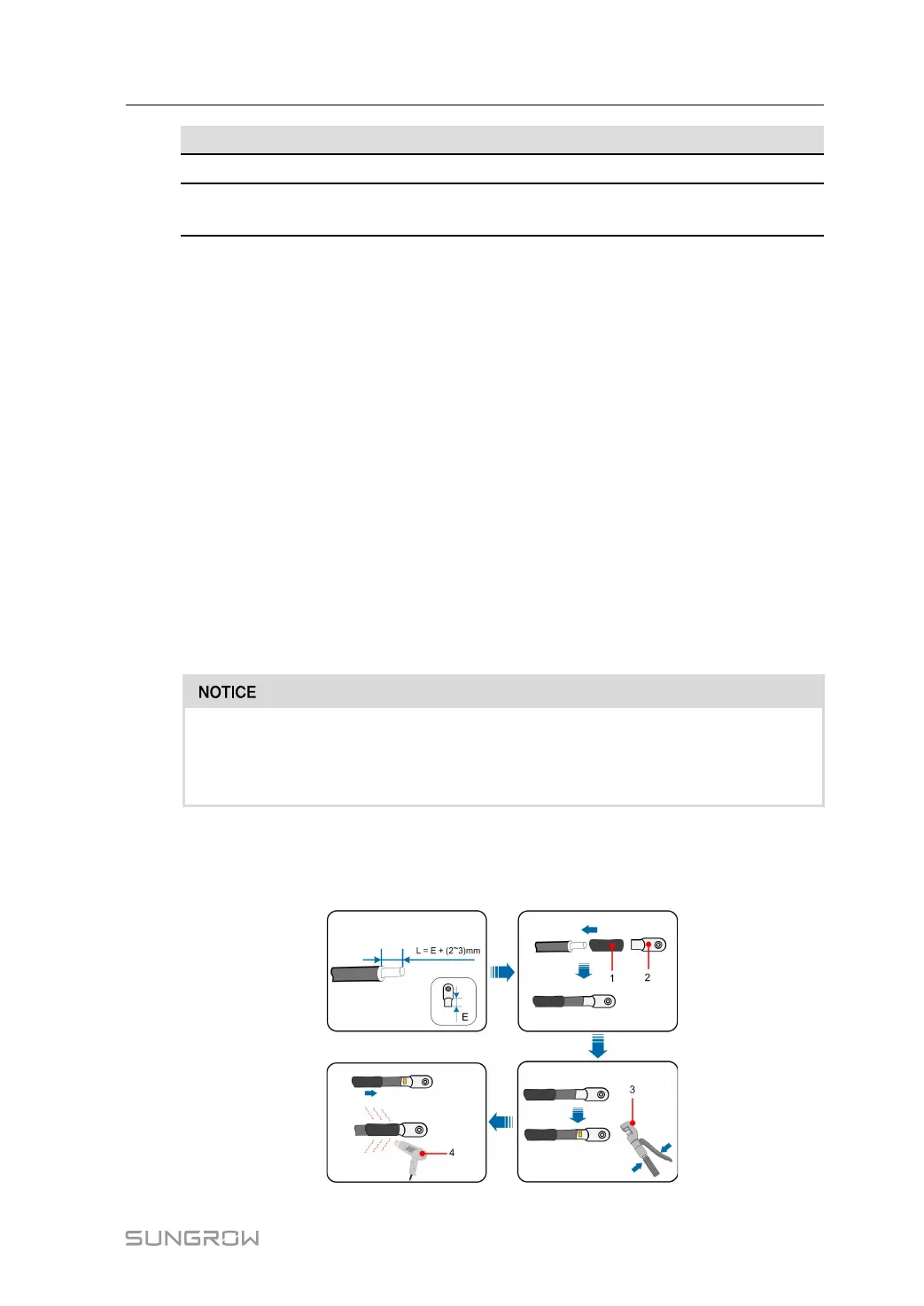

Crimp terminal
Crimp OT/DT terminals
Follow the steps shown below to crimp terminal.
System Manual 5 Electrical Connection
