31

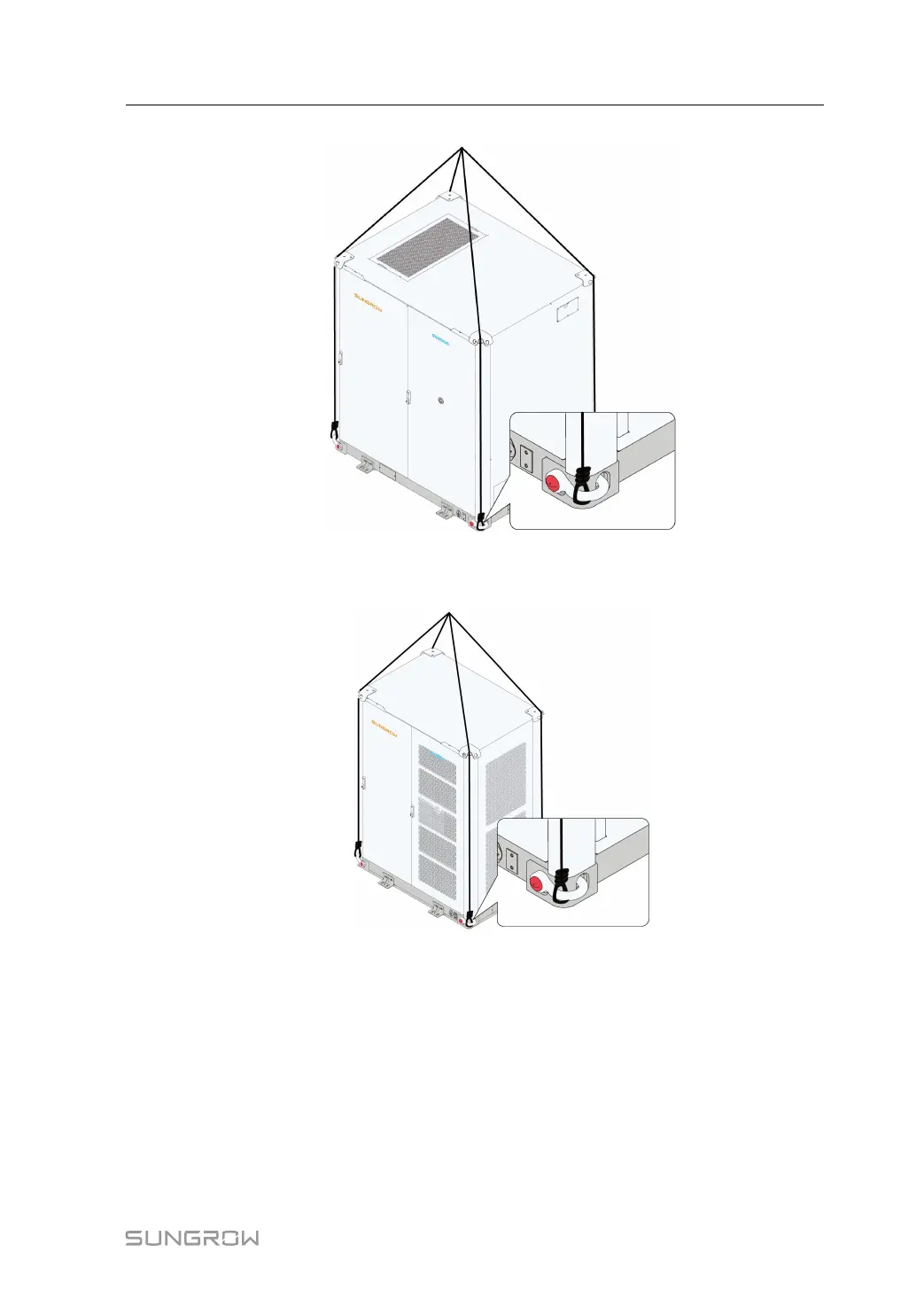

figure 4-8 BESS lifting diagram
*This picture is for reference only, please refer to the actual product received!
figure 4-9 PCS lifting diagram
*This picture is for reference only, please refer to the actual product received!
4.5 Fixed Installation
Hoist the container to the intended location and prepare to weld it. Secure the container to
the foundation by welding or with the L-shaped angle steels.
System Manual 4 Mechanical Installation
