• All connections must be carried out with distinctive guidance. Any guess and ambiguous
attempts must be prohibited.
• Key connections must be correct, reliable (without loosening) and in good contact,
without short-circuits.
• All the finished connections must be measured and confirmed one by one.
• All connections must not be in contact with the casing or other components or
shortcircuited.
• If there are other uncertain factors, please consult the after-sales technicians of
SUNGROW before any operation.
6.2 Cable Connection

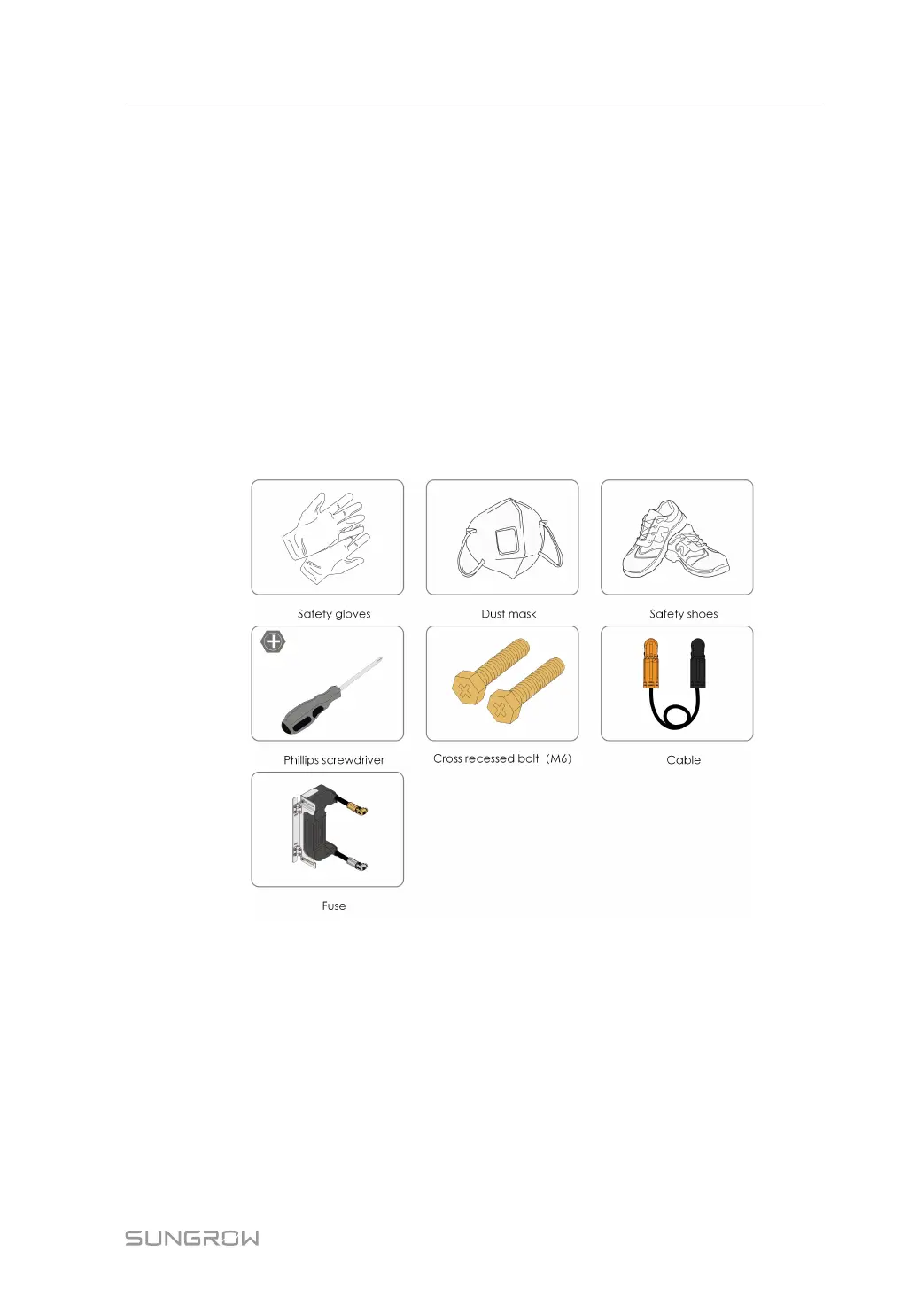

Tool preparation
step 1 Wear insulating shoes and high-voltage gloves before connecting power cables. Before
connecting the power cable between the packs, disconnect the cable between the pack and
the switch gear.
step 2 Install the fuse. Open the container door, there are two sets of mounting holes reserved on
the door frames of the battery cabinet, and use M6 hexagonal Phillips screws to fix the fuses
on the mounting holes.
