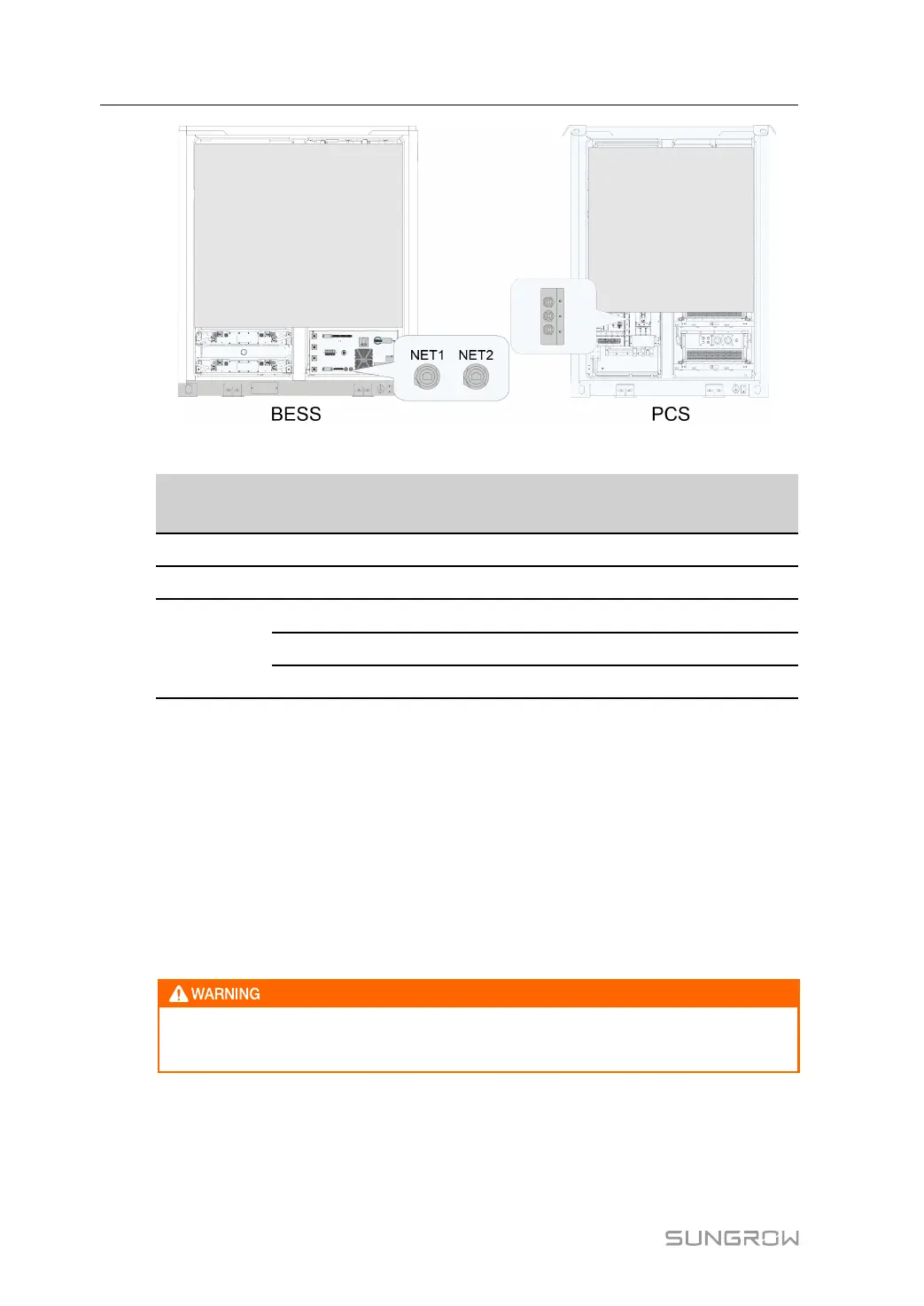

table 5-6 Interface description
Interface
location
Interface
name
Description
1# BESS NET2 Connect to PCS NET2
*2# BESS NET2 Connect to PCS NET3
PCS
NET1 Connect to client EMS
NET2 Connect to 1# BESS NET2
NET3 *Connect to 2# BESS NET2
*Indicates that 2# BESS is optional.
5.11 Post-wiring Operations
Check the wiring thoroughly and carefully when all electrical connections have been
completed. In addition, perform the following operations:
• Check all air inlets and outlets for blockage.
• Seal the gap around the cable inlet holes.
• Put all protective covers back in place firmly.
• Moisture may enter the product if it is not properly sealed.
• Rodents may enter if the product is not properly sealed.
Locking Cabinet Doors
step 1 Reinstall the protection cover of the wiring area in the reverse order of removal.
step 2 Lock the cabinet door, pull out the key, and store it securely.
5 Electrical Connection System Manual
