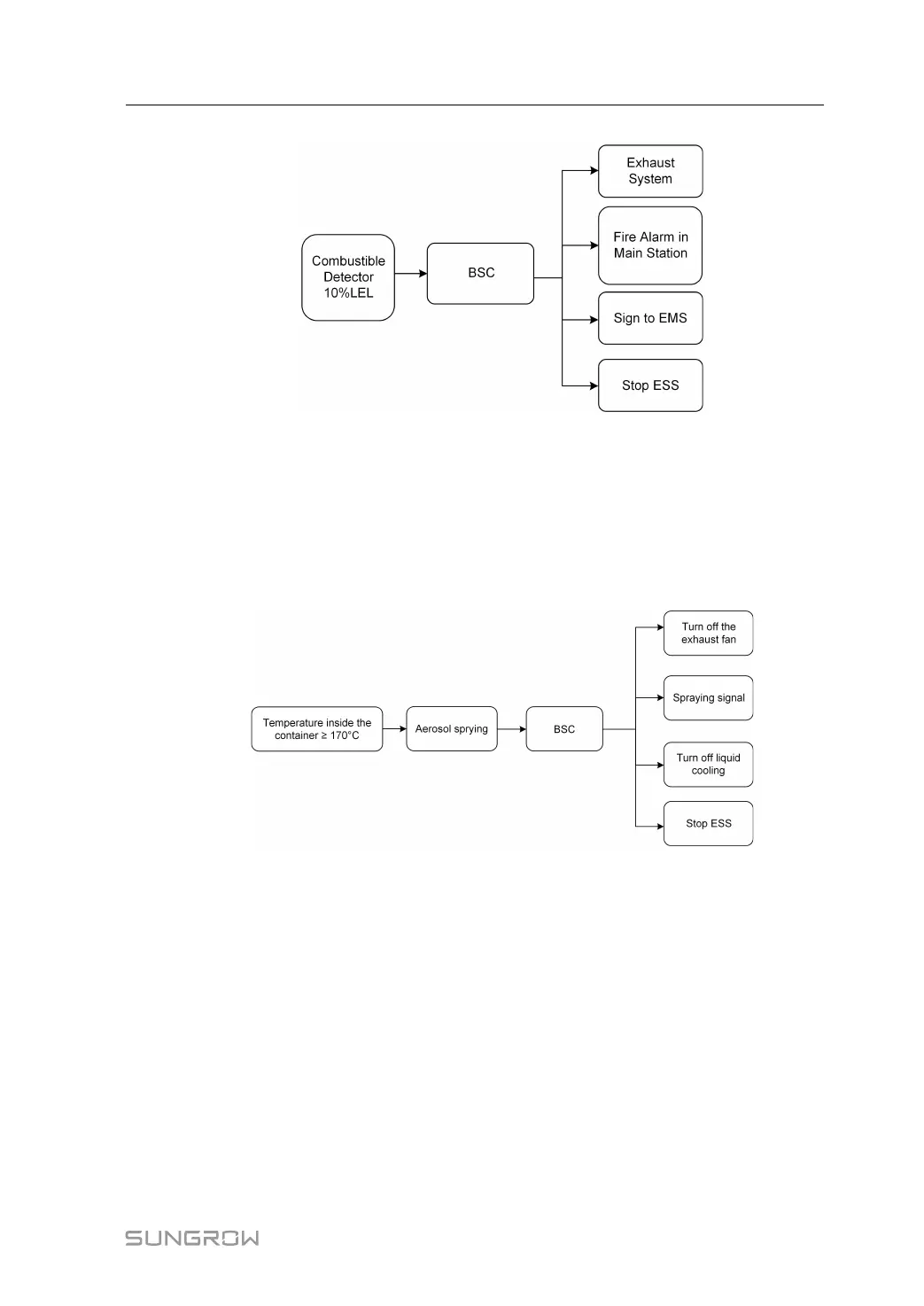

figure 9-2 Control logic of exhaust system
9.4 Aerosol Fire Suppression System
The BESS is equipped with a aerosol fire suppression system. Aerosol generators are
automatic units which are thermally activated. The aerosol fire suppression system is
automatically activated when the temperature inside the container is ≥ 170°C.
figure 9-3 Control logic of aerosol fire suppression system
System Manual 9 Fire Suppression
