27

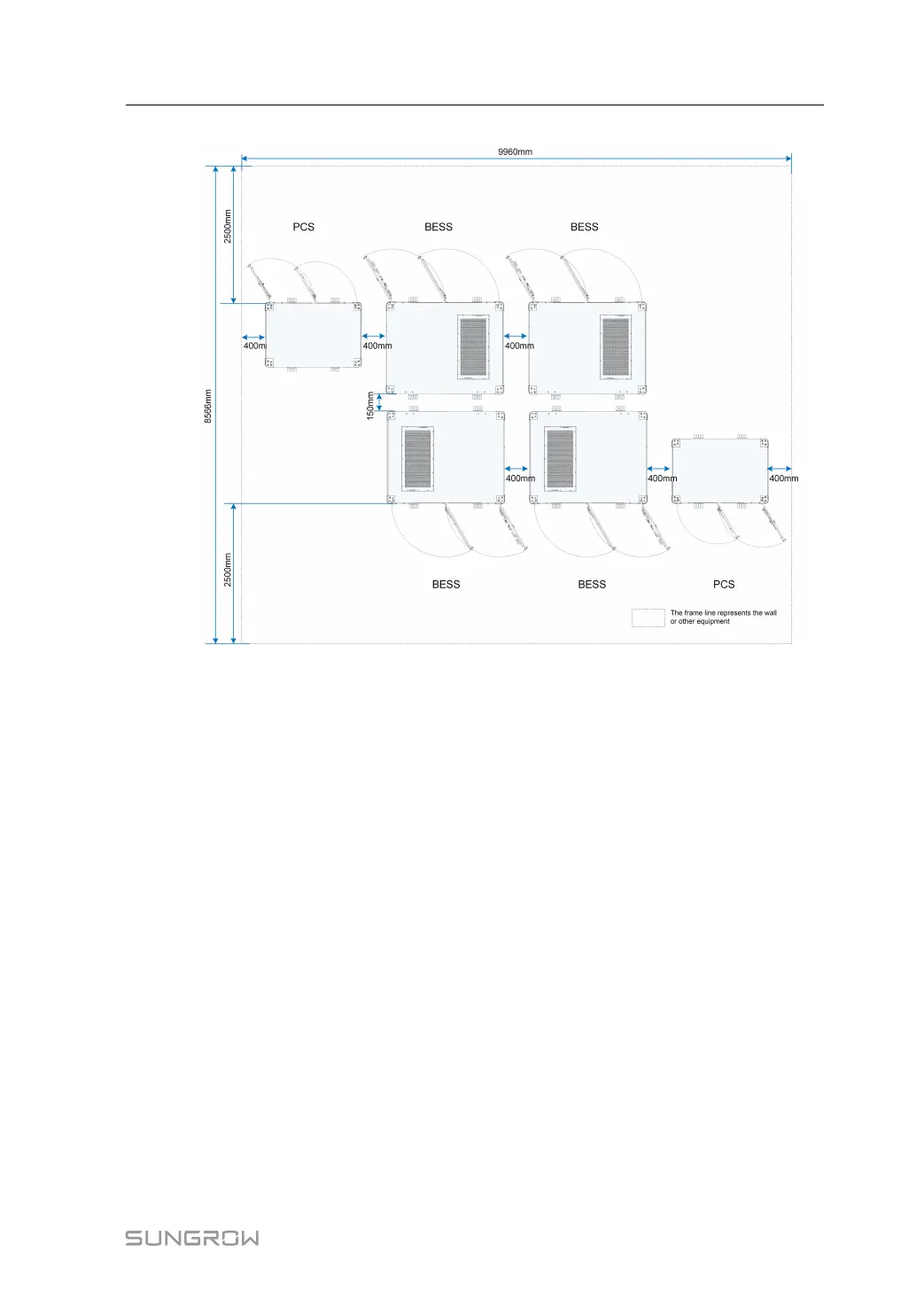

figure 4-5 Recommended installation space for multi-system(BESS*4–PCS*2)
4.3 Forklift Transport
If the installation site is flat, you can use a forklift to move the BESS and PCS. The bottom of
the BESS and PCS are equipped with fork holes specially used for forklift transportation.
Move the BESS and PCS through the side fork holes.
If a forklift is used, the following requirements should be met:
• The forklift should be equipped with sufficient load capacity.
• The length of the forklift feet should meet the requirements of the device.
The forklift feet should be inserted into the fork pockets at the bottom of the workstation (for
the location of the fork pockets, see the figure below). The depth of the forklift feet inserted
into the pockets should be the depth of the pockets.
• The transportation, moving and putting down of the BESS and PCS should be slow and
stable. It is recommended to try transportation.
• Only place the BESS and PCS in a stable place. The place should be well drained
without any obstruction or bulging. The BESS and PCS should be fixed by four bottom
corner pieces.
System Manual 4 Mechanical Installation
